➯ Packaging Type：

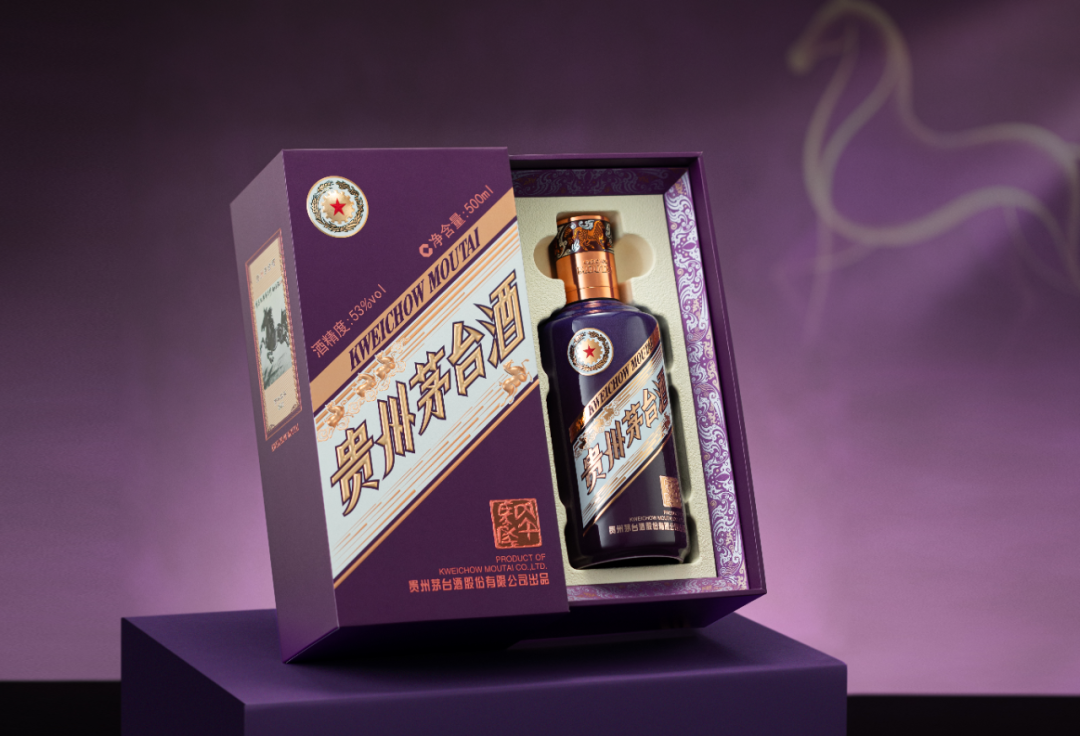

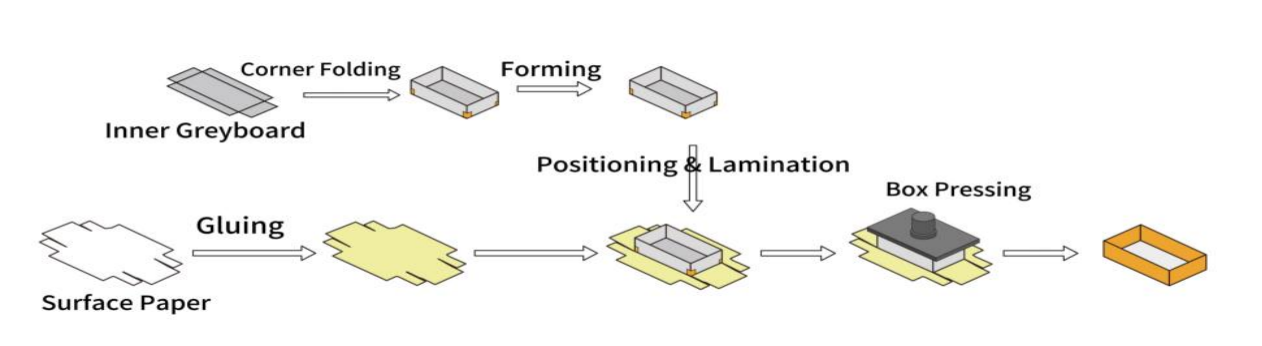

➯ Conceptual Diagram
➯ Case Description
This solution references high-end luxury liquor packaging, such as the Guizhou Moutai premium gift box, with a high unit price reflecting its luxury positioning.
The solution focuses on automated production for drawer-style packaging, featuring a telescopic inner base box combined with an outer drawer structure. The primary materials are rigid greyboard and decorative surface paper, meeting the high tactile and structural standards required for luxury packaging.
If lighter paperboard, such as white card, is preferred for the inner or outer box, we can provide customized automated solutions tailored to different material combinations, ensuring both production efficiency and premium quality.

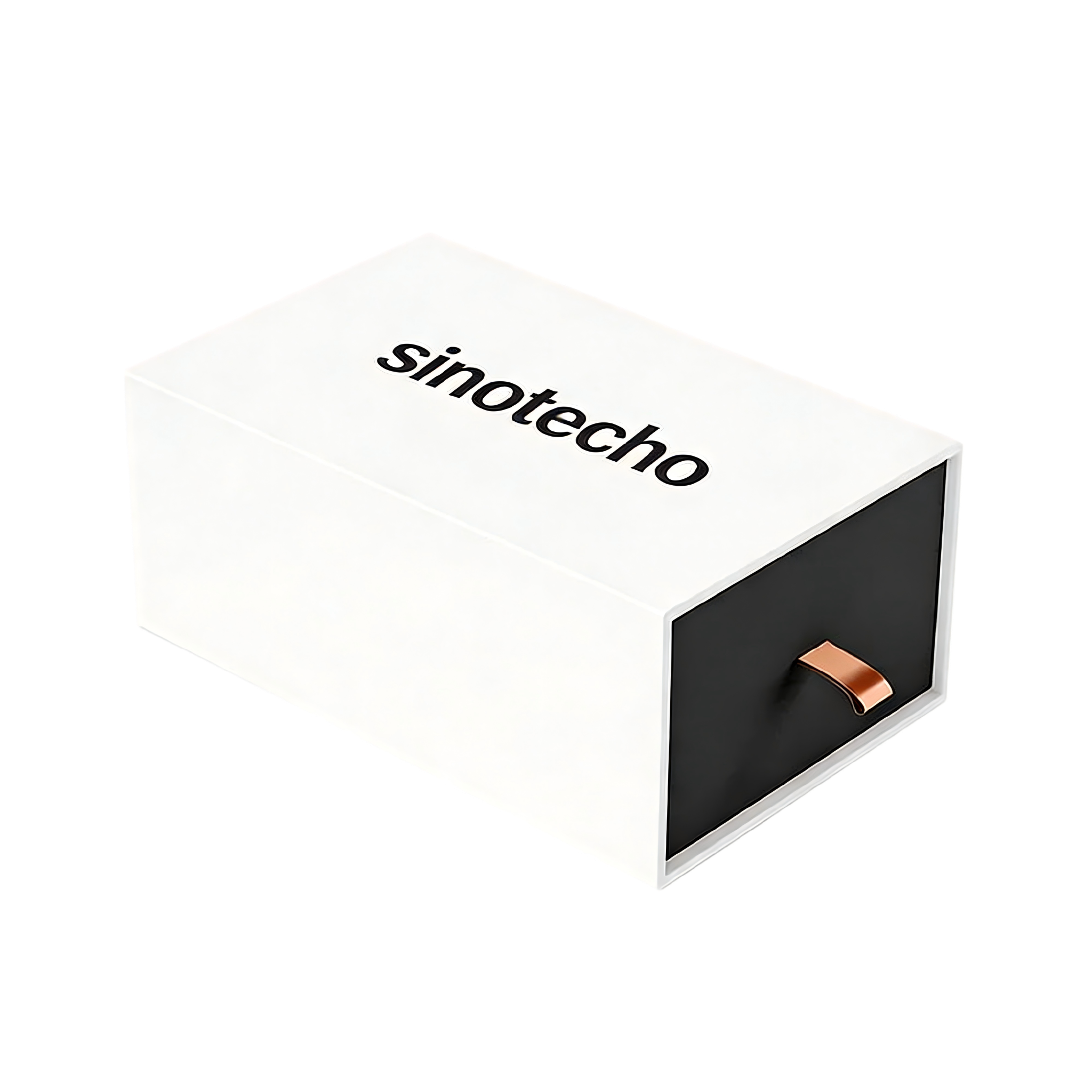

➯ Box Structure
Outer Box：Drawer-style design, ensuring smooth opening and overall stability.
Inner Box：Lid-and-base structure, protecting the product and enhancing unboxing experience.
➯ Applicable Primary Materials

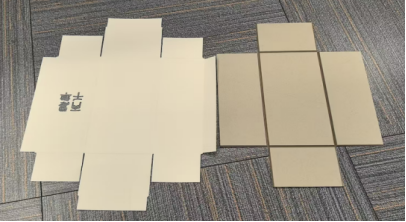

Both inner and outer boxes use rigid greyboard, with high-quality decorative surface paper applied on the outer layer, ensuring structural strength and premium tactile feel.
➯ Process – Outer Box Forming-

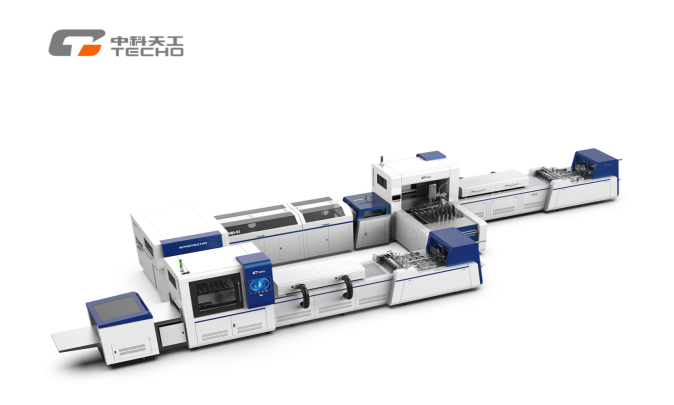

High Speed Rigid Box Case Making Machine TG-CP30A
Finished Product Size (W×L)：
Min: 100×200 mm Max: 540×1000 mm
Production Speed：
White glue: ≥ 1200 pcs/h ;
Hot melt glue: ≥ 1800 pcs/h
Surface Paper Size&Thickness：
Min: 150×250 mm Max: 570×1030 mm
100-300 g/m²
Grey Board Thickness (T): 1-3 mm
Overall Dimension ：11300×4450×1800 mm
Applicable Box Types: High-end packaging such as luxury book-style boxes, liquor boxes, smartphone boxes, cigarette boxes, and pharmaceutical boxes...
· High Precision: ±0.10 mm with vision + robotic control
· High Productivity: ≥1800 pcs/h, nonstop feeding
· High Stability: PLC-controlled with auto detection & alarms
· High Yield: Integrated forming, 98% qualified
· Flexible Integration: Supports various rigid boxes & production lines
| Equipment Name | Function | Quantity | Labor Allocation |

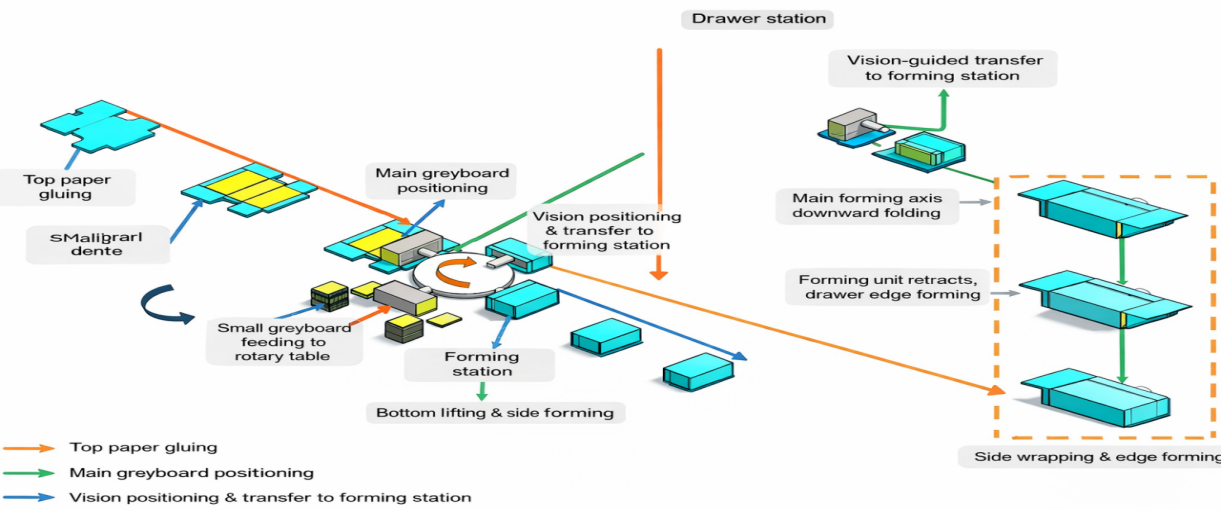

| Intelligent Decorative Surface Paper Gluing & Positioning Machine | Gluing and precise positioning of decorative surface paper on the outer box | 1 | 2 |
| Intelligent Drawer Outer Box Forming Machine | Automatic forming of drawer outer boxes | 1 | |
| Additional Auxiliary Equipment / Processes | Quantity/Length | Labor Allocation | |
| Manual Line (4m) | Auxiliary manual process | 4m | 3 |
| Manual Line (3.4m) | Auxiliary manual process | 3.4m | 1 |
| Manual Line (2m) | Auxiliary manual process | 2m | 1 |
| Turning Conveyor | Material transfer for manual process | / | 1 |
➯ Process – Inner Box Forming-

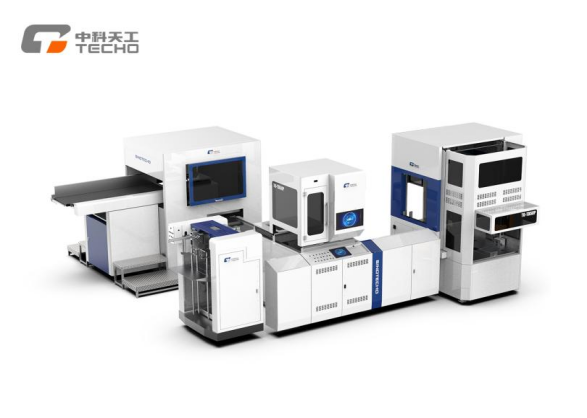

Intelligent Lid & Base Box Forming Machine TG-NA30F
Box Dimensions [W×L]:
Min. 50×60 mm; Max. 260×380 mm
Box Height [H]: 10–140 mm
Greyboard Thickness: 0.8–3 mm
Decorative Surface Paper Thickness: 100–400 g/m²
Production Speed: Approx. 30 pcs/min
Overall Dimension:
L 6800 × W 4500 × H 3300 mm
| Equipment Name | Function | Quantity | Labor Allocation |
| Intelligent Screen Gluing Machine | Screen glue application on inner box decorative surface paper | 1 | 1 |
| Intelligent Panel Assembling Machine | Flat panel forming of inner boxes | 1 | 2 |
| Intelligent Vision Positioning Machine | Positioning of inner box and decorative surface paper; automatic paper wrapping | 1 | |
| Intelligent Lid & Base Forming Machine | Lid-and-base inner box forming | 1 | |
| Intelligent Lid & Base Pressing Machine | Removes air bubbles after forming to ensure smooth surface | 1 | |
| Intelligent Glue Dispensing Machine | Adhesive application for inner frame and holder | 2 | / |
➯ Key Highlights of the Production Line
01 Material Cost Saving:

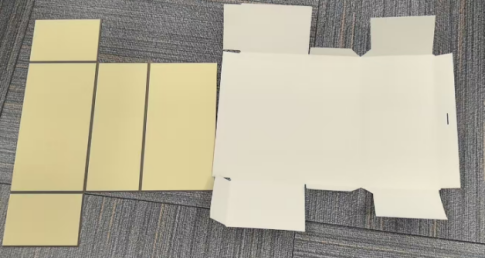

The outer drawer box greyboard uses a three-panel assembly design, minimizing material consumption and optimizing costs.
02 Precise Local Gluing:

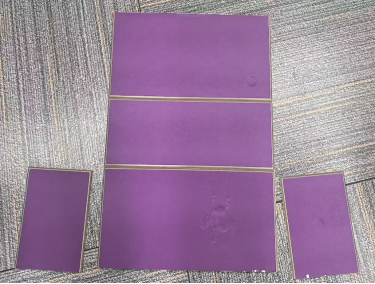

Patented rotary silk-screen technology enables localized gluing on inner box decorative paper with a precision of ±0.2 mm, effectively preventing glue smearing or overflow during badge assembly.

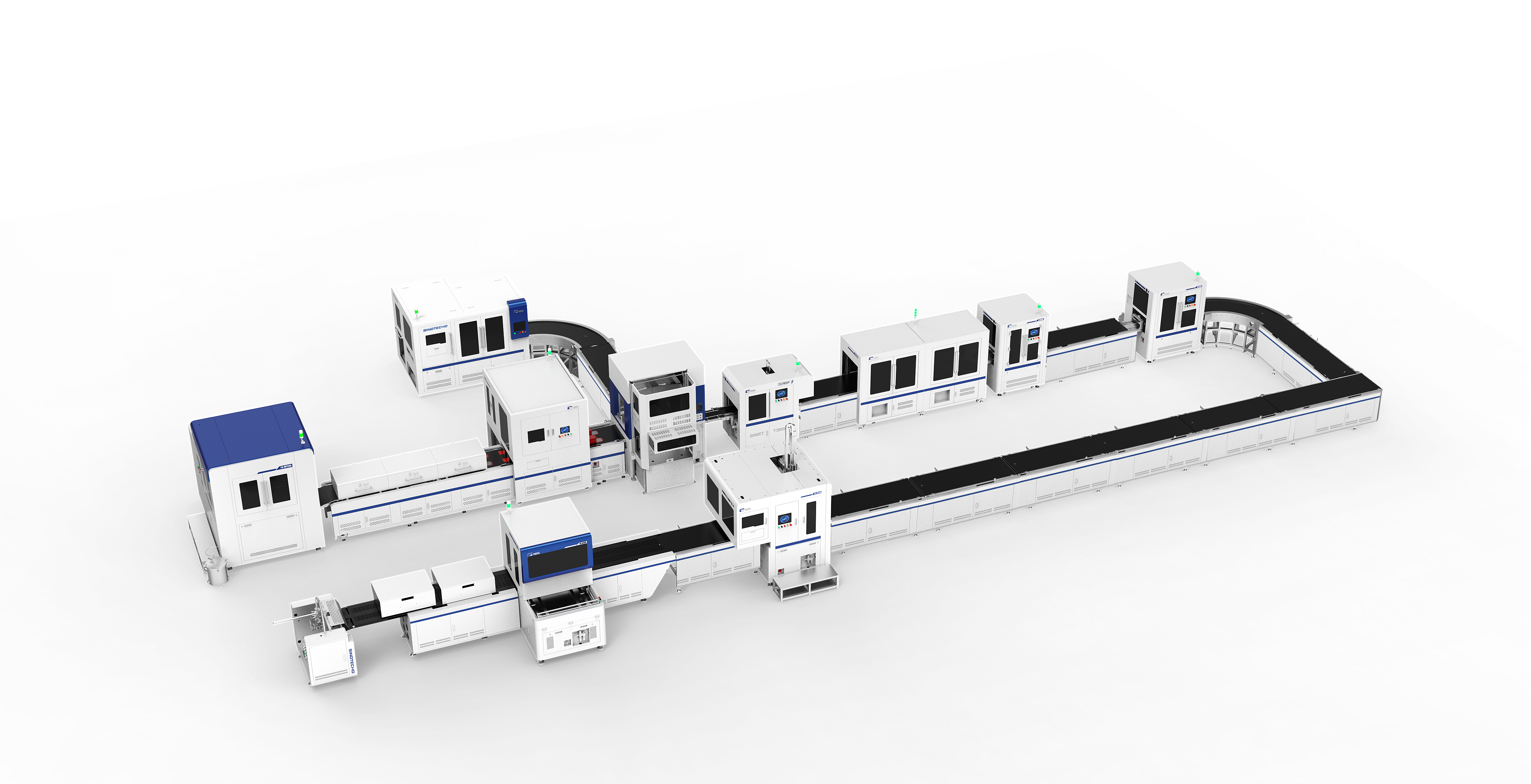

03 Integrated Line Production:
Unified and professional appearance with mature equipment structure, enabling fast delivery, rapid commissioning, and reduced time-to-production.
04 Mature & Reliable Solution:
3D simulation and technical validation ensure minimal implementation risk; single-shift capacity reaches 10,000 pcs with a yield rate ≥98%.
05 Digital Central Control System:
Self-developed intelligent control system enables interactive sensing between equipment and environment, automatic stop and alarm for quality anomalies, automatic deceleration or halt for material accumulation, and automatic anomaly alerts.
06 Smart Automation Upgrade:
Integration with mobile robots and scheduling systems allows workflow synchronization; AGV automatically calls for material replenishment when low and material storage when full. Digital control system supports intelligent production scheduling, enhancing operational efficiency.
