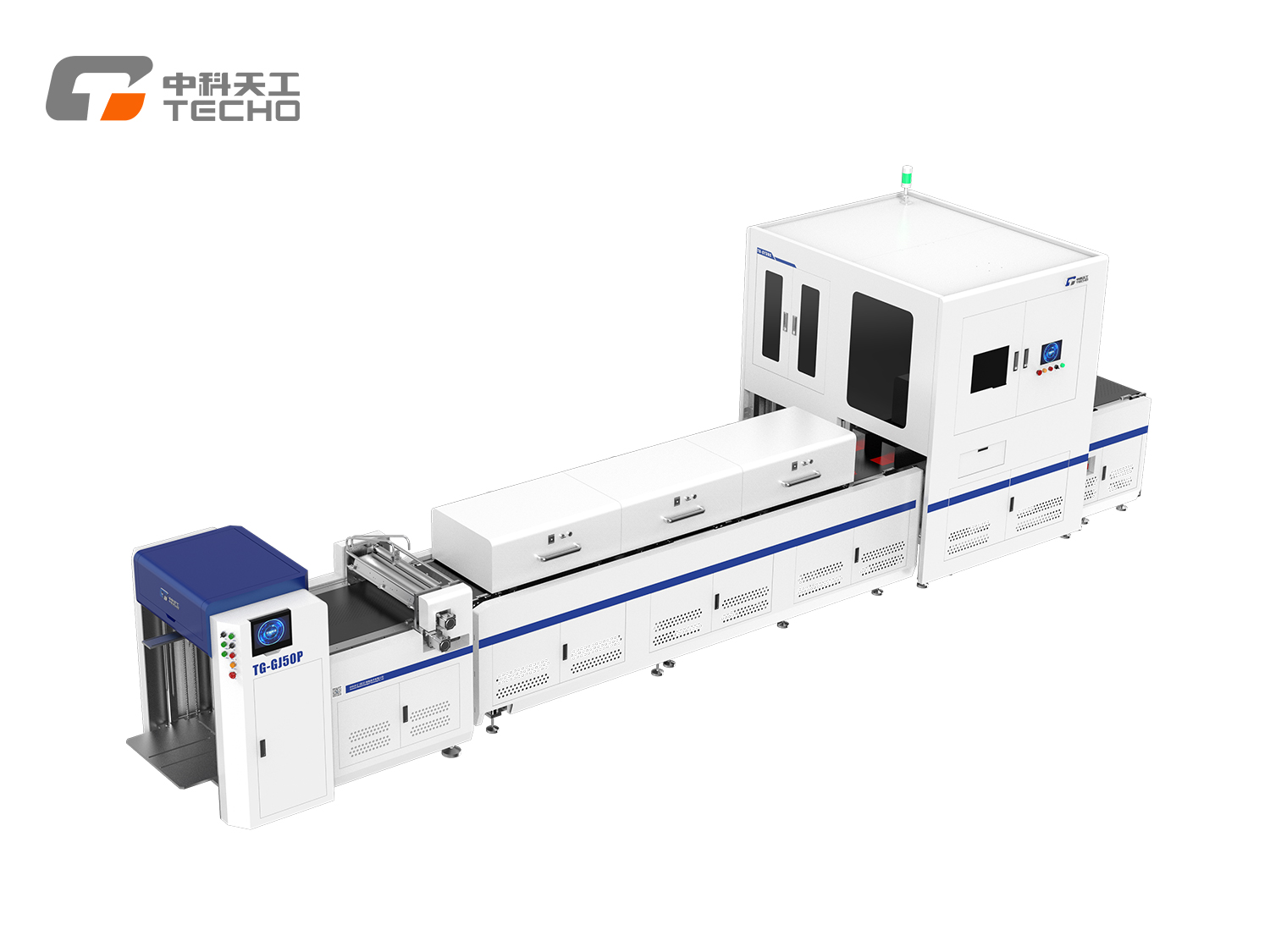

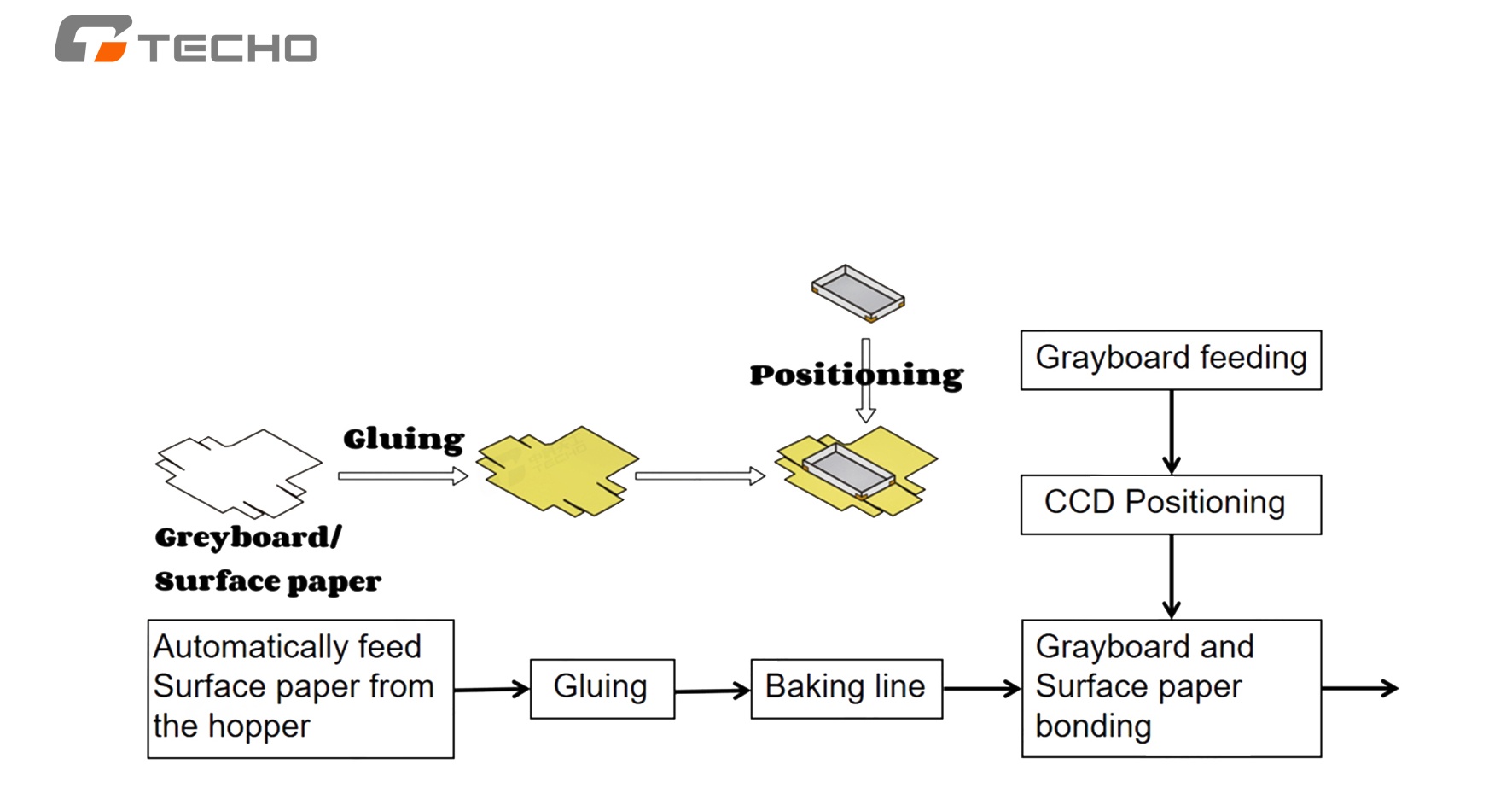

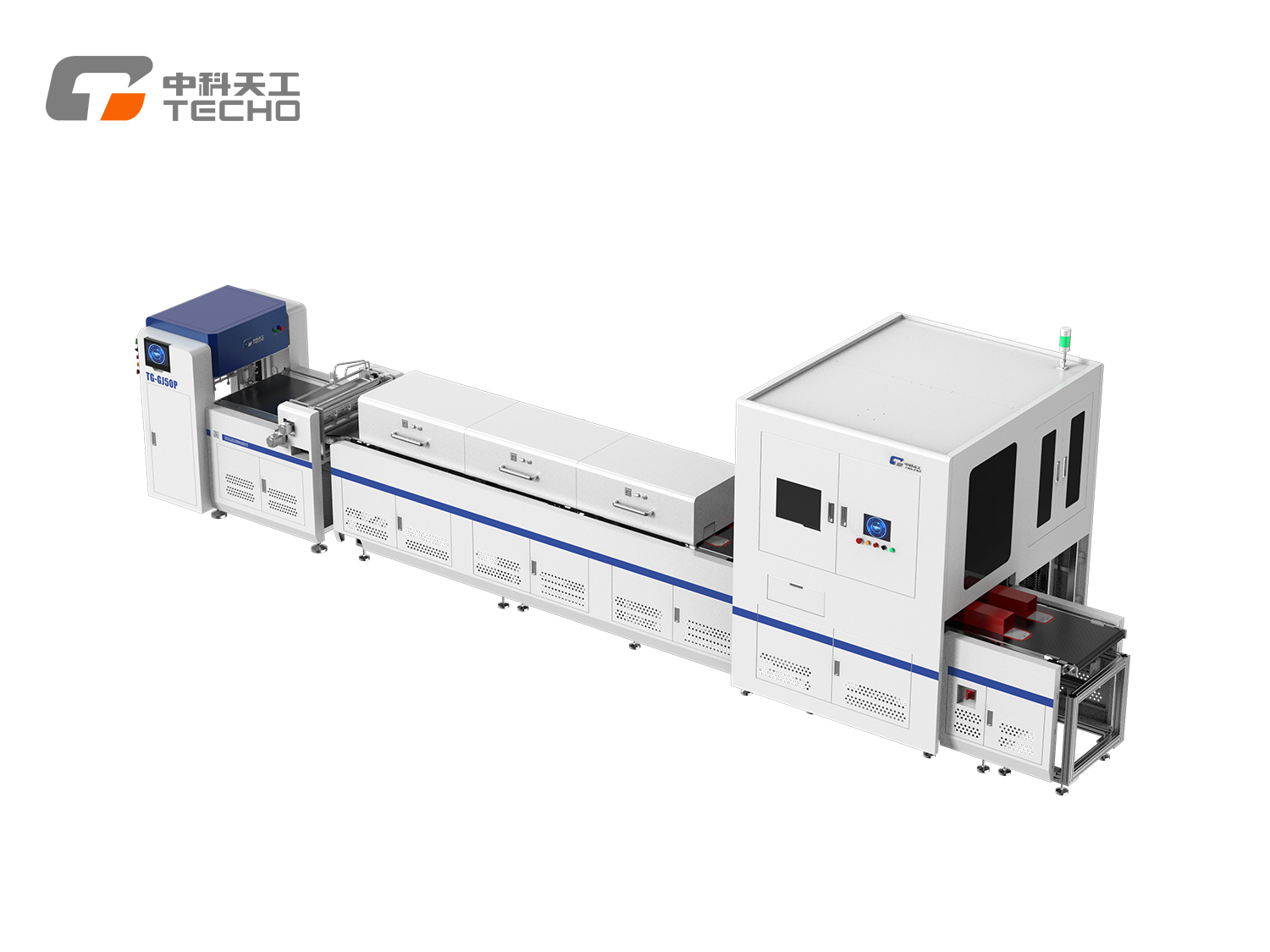

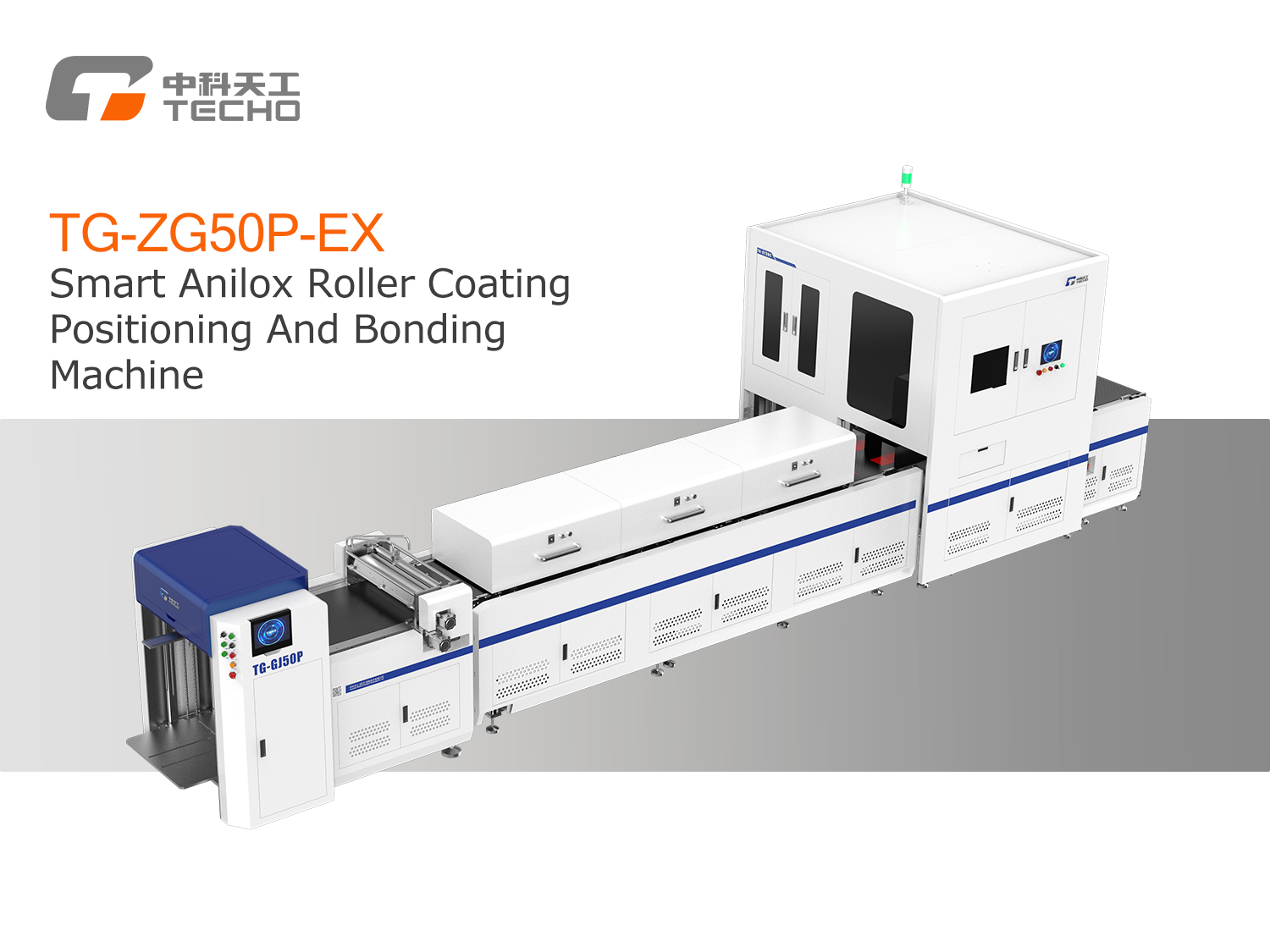

The TG-ZG50P-EX Smart Anilox Roller Coating Positioning and Bonding Machine is a high-performance and intelligent solution designed for the luxury cigarette and wine packaging industry. It integrates automatic paper feeding, anilox roller gluing, box blank feeding, and CCD visual positioning bonding into one continuous production line.
Equipped with an YAMAHA robotic system and high-precision visual positioning technology (±0.1mm), it delivers exceptional stability, fast format changeovers, and consistent gluing quality. The machine adopts a patented concave anilox roller coating process, reducing glue consumption by up to 30% while maintaining perfect lamination results.
Our company has applied for multiple patents and established a complete patent protection chain, ensuring technological leadership and reliable quality for global packaging manufacturers.
1.Patented anilox roller adhesive application — reduces adhesive usage by up to 30%.;
2.Dual-channel continuous feeding system, minimizing downtime for material loading and improving production efficiency;
3.High-precision vision positioning technology, achieving accuracy of ±0.1 mm.
| Item | Specification |
|---|---|
| Applicable Paper Sizes |
L: 175–650 mm |
| Surface Paper Weight | 157–250 g/m² |
| Positioning Accuracy | ±0.1 mm |
| Surface Paper Thickness | 0.1–0.3 mm |
| Production Capacity | 1500–1800 pcs/h |
| Air Supply | 0.6–0.8 MPa |
| Power Supply | AC 380V ±10%, 30 kW |
| Product Weight | 1500 KG |
| Product Dimensions (L × W × H) | 4500 × 2200 × 1500 mm |
| Packaging Material | Wooden Crates |
| After-Sales Service | 1-year warranty |
