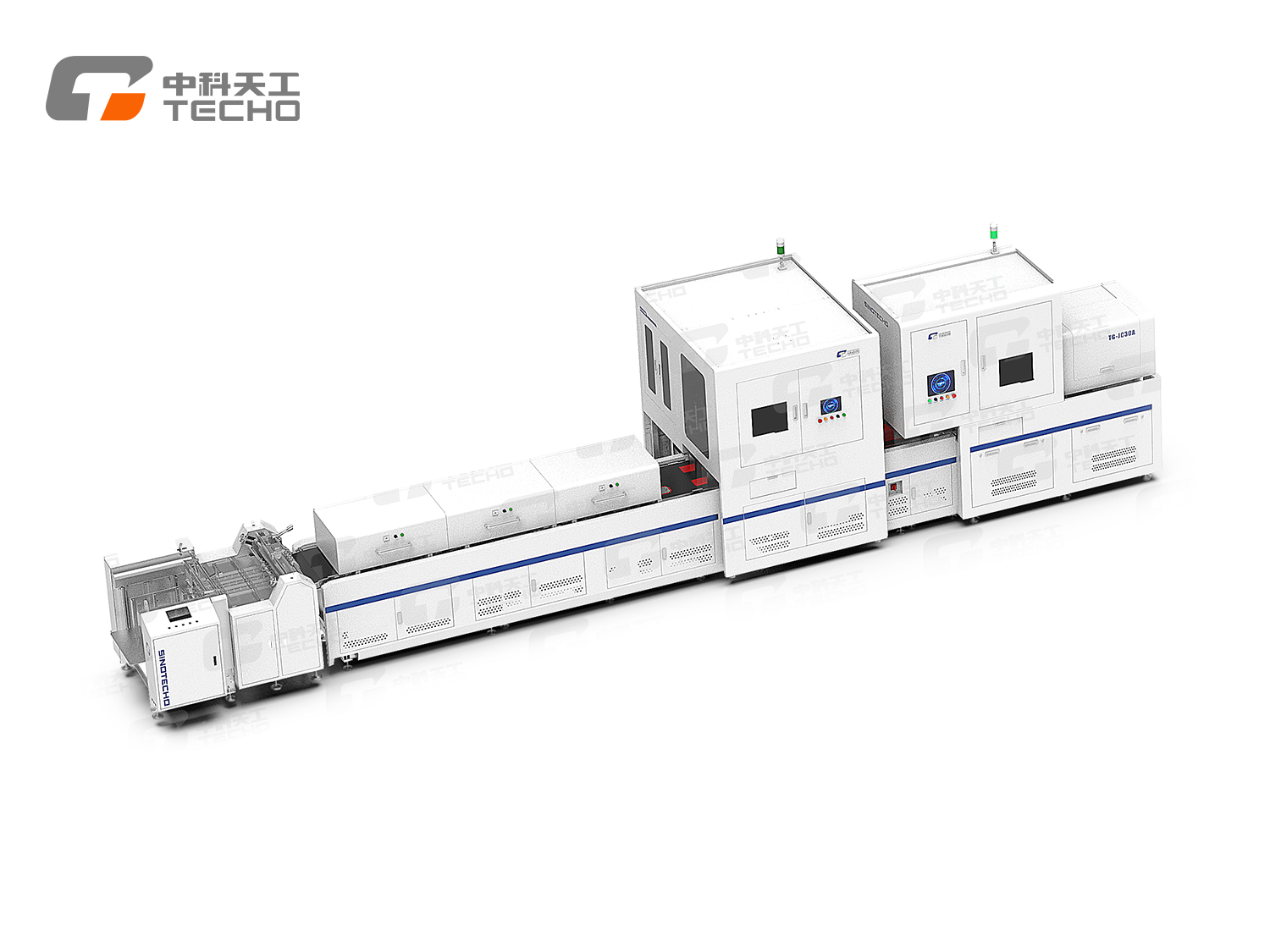

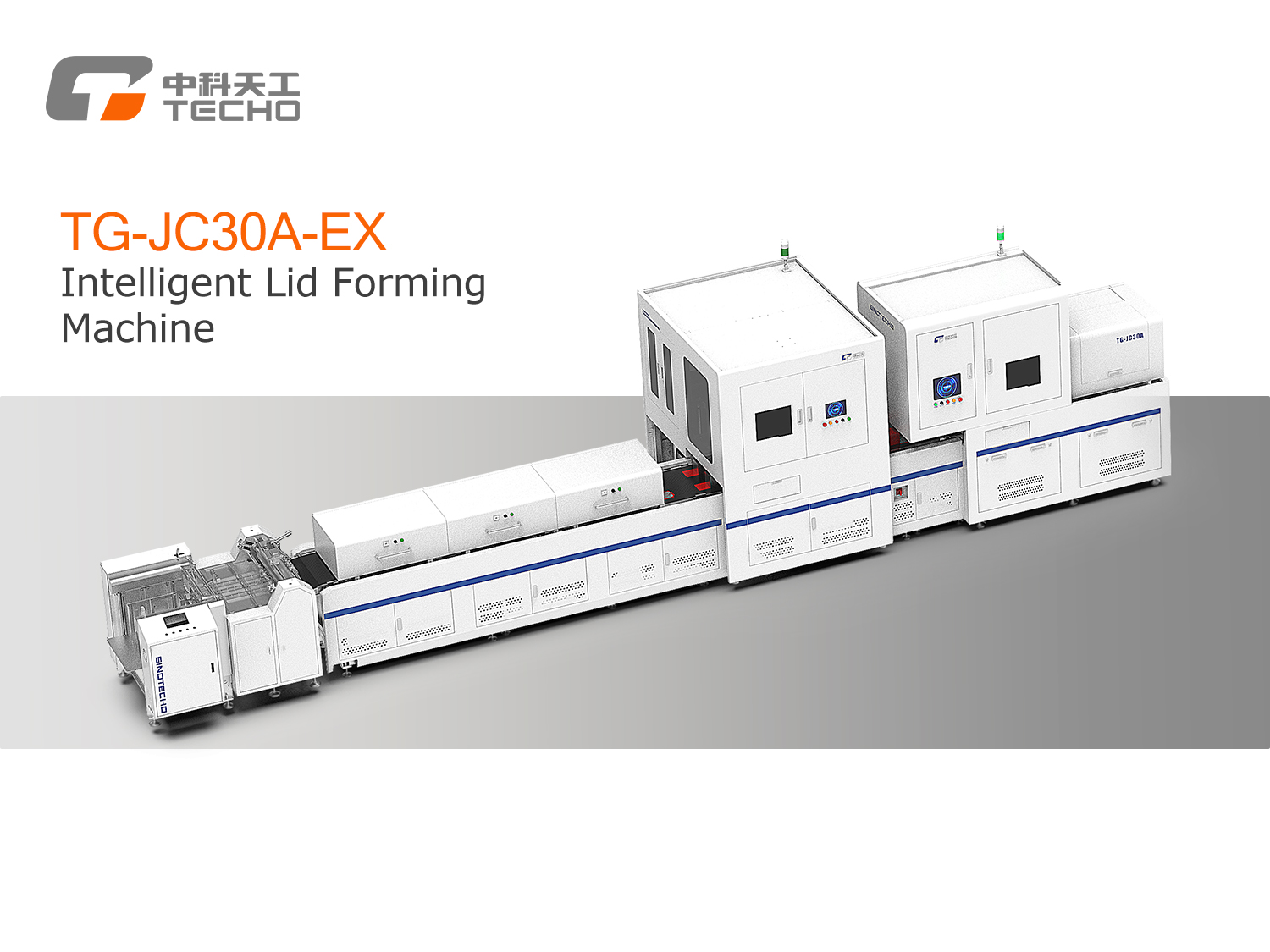

The TG-JC30A-EX Intelligent Rigid Box Lid Wrapping & Forming Machine is a specialized solution developed by Sinotecho specifically for the production of liquor-box lids. It performs fully automatic edge-wrapping and folding for lids of various sizes.
Sinotecho has applied for multiple patents for this production line, establishing a complete and comprehensive patent protection system.
1.High Compatibility: Supports a wide range of box types; compatible with various grayboard sizes and widths.
2.Superior Performance: 4-axis robotic arm with vision positioning; 4-sided lid edge wrapping with integrated pressing ensures no gaps and excellent finishing quality.
3.Higher Efficiency: Vision-guided robotic picking and positioning combined with gantry-style modular handling deliver high efficiency and yield.
4.Flexible Production: Supports both inline multi-line integration and standalone single-machine operation, providing maximum adaptability for varying production needs.
| Item | Specification |
|---|---|
| Applicable Products | Book-style box lids, cigarette pack lids, liquor box lids, barrel-style liquor box lids |
| Finished Product Size (mm) | L: 80–400 W: 80–600 H: 1–3 |
| Production Efficiency | 25–30 pcs/min |
| Voltage | AC 380V ±10% |
| Air Pressure | 0.6–0.8 MPa |
| Machine Dimensions | L 2632 × W 1130 × H 2544 mm |
| Machine Weight | 1100 kg |
