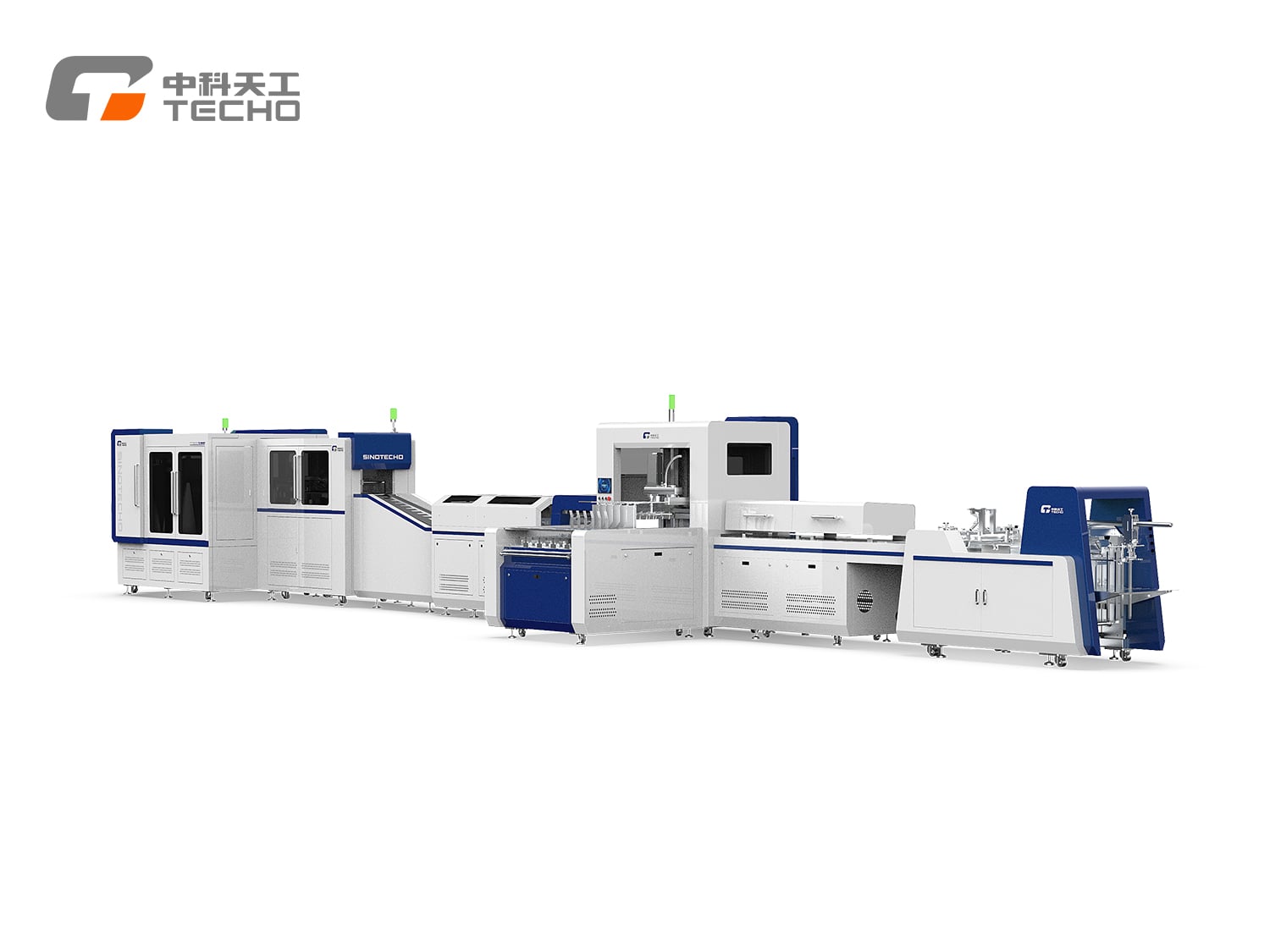

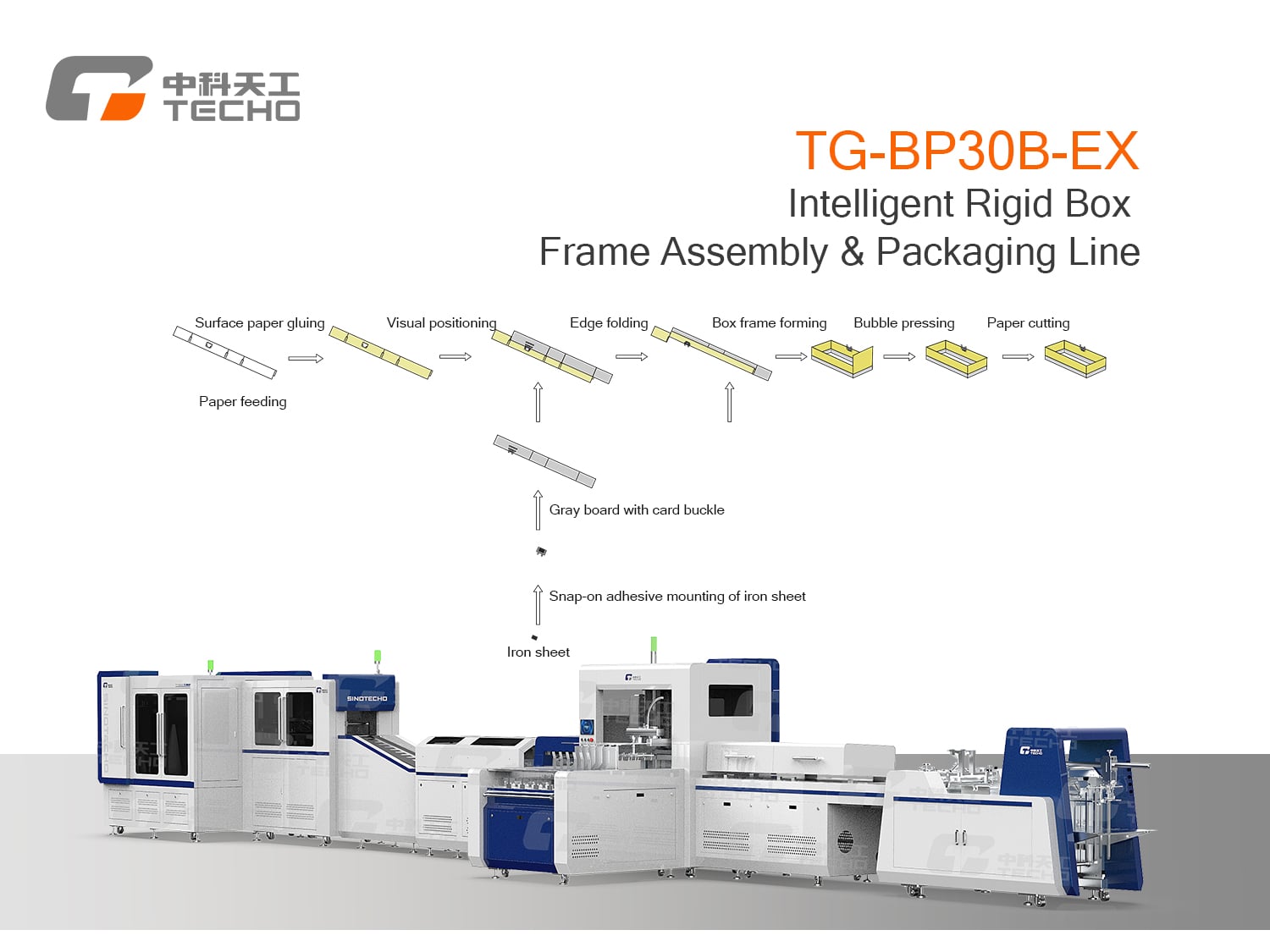

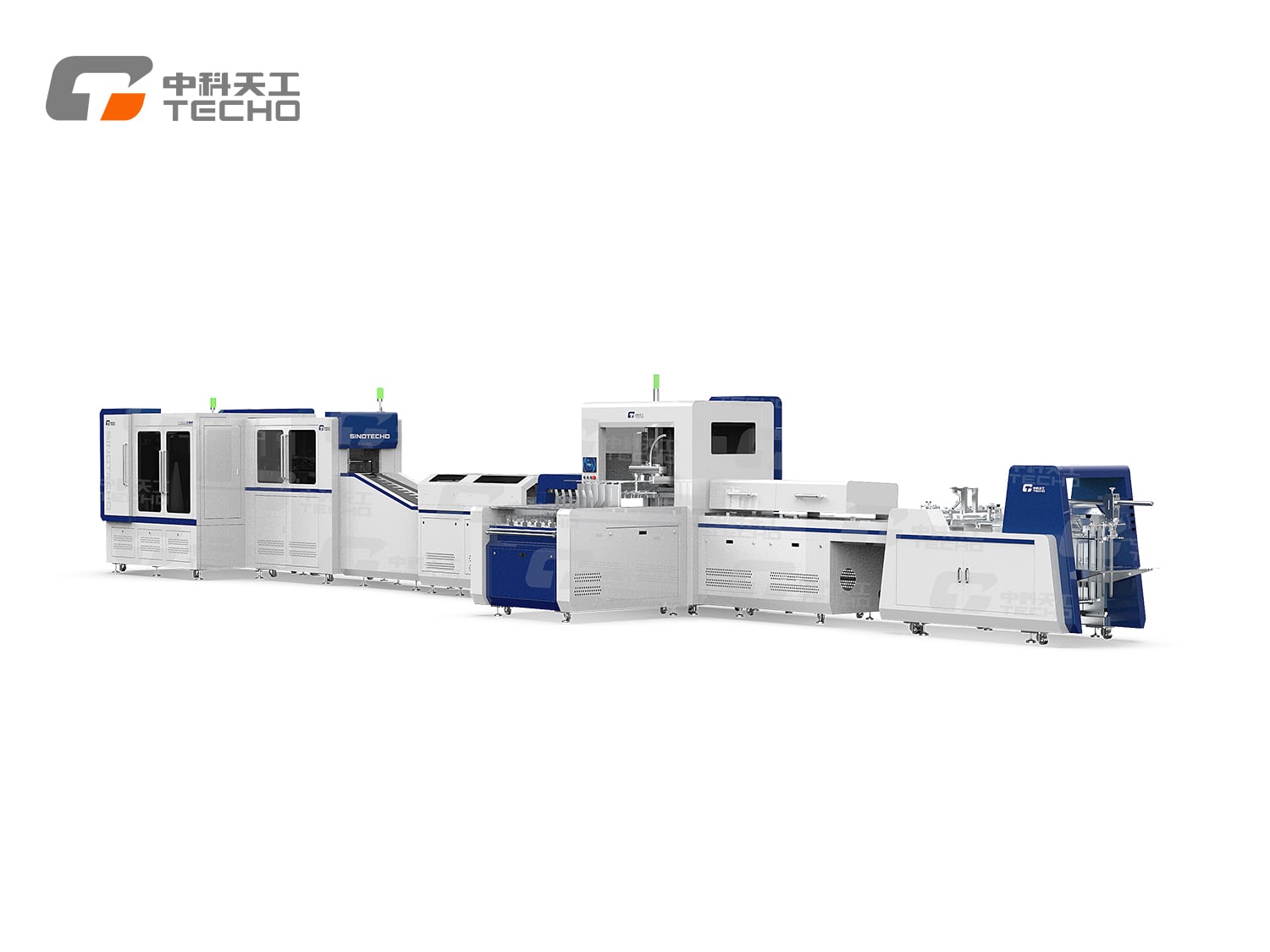

The TG-BP30B-EX Intelligent Rigid Box Frame Assembly & Packaging Line is a specialized production line developed by Sinotecho for the premium box packaging industry. The line mainly comprises a gluing machine, a visual positioning system, and a rigid box frame assembly unit. It can automatically complete processes such as surface paper roller gluing, grey board visual positioning, edge folding, frame forming, pressing, and shaping.
This line is compatible with various types of rigid box frames, including clamshell boxes, book-style boxes, and separate lid-and-base boxes. It features a compact footprint, strong scalability, high production efficiency, precise positioning, and quick changeovers between different box sizes.
Sinotecho has applied for multiple patents for this assembly line, establishing a complete intellectual property protection chain.
| Item | Specification |
|---|---|
| Finished Product Size Range | L 100–380 × W 90–160 × H 90–160 mm |
| Positioning Accuracy | ±0.1 mm |
| Production Efficiency | 1000–1200 pcs/h |
| Air Supply Requirement | 0.6–0.8 MPa |
| Power Supply Standard | AC 380V ±10% |
| Overall Machine Dimensions (L × W × H) | 12500 × 4500 × 2000 mm |
| Overall Machine Weight | 5500 kg |
1.Roller gluing system ensures uniform adhesive coating on the surface paper.
2.High-precision visual positioning, with accuracy ≤ ±0.1mm.
3.Down-press forming process delivers excellent shaping quality.
4.Modular design with strong scalability and wide application range.
5.Single-operator control, one person can operate the entire machine.
 |
