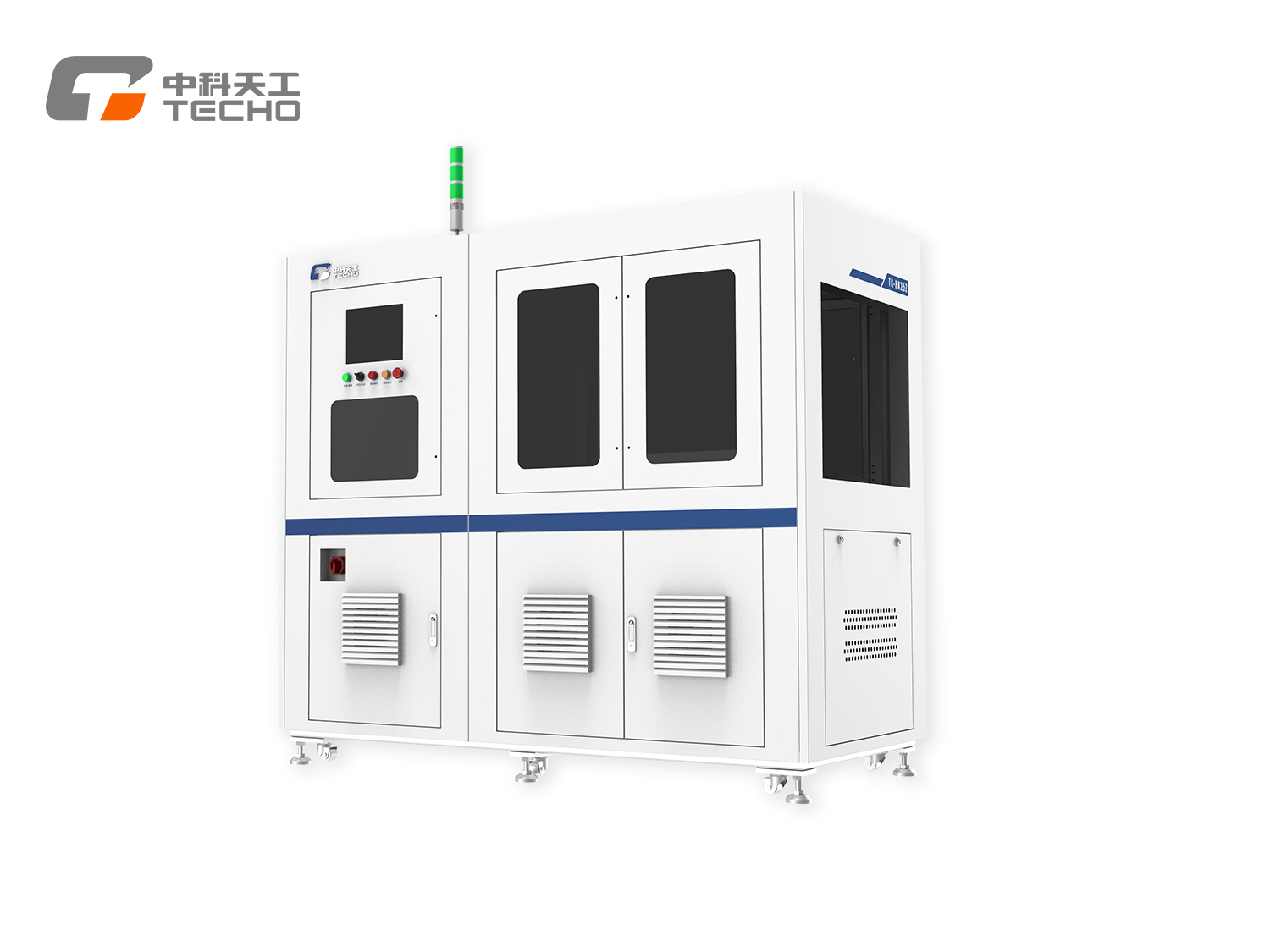

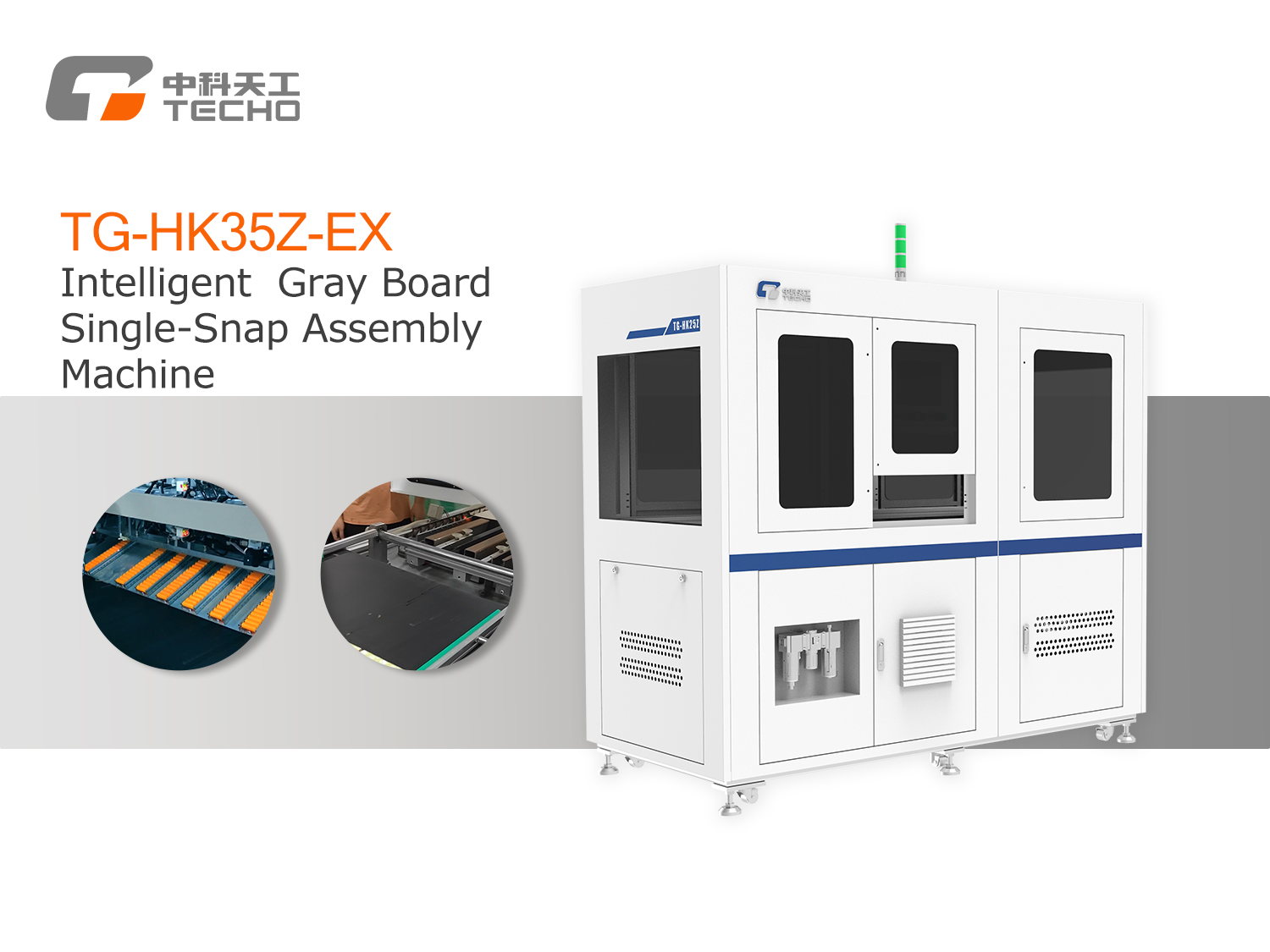

The TG-HK35Z Intelligent Gray Board Single-Snap Assembly Machine is an automated snap-assembly solution developed by Sinotecho specifically for premium liquor box gray board snap assembly. It can achieve fully automated processing including gray board feeding, snap glue dispensing, snap assembly, and gray board flipping. With multiple patents applied, this machine is protected by a comprehensive intellectual property portfolio, ensuring innovation and reliability.
1.High Compatibility: Snap assembly is performed via robot and fixture, supporting both single or double snap configurations.

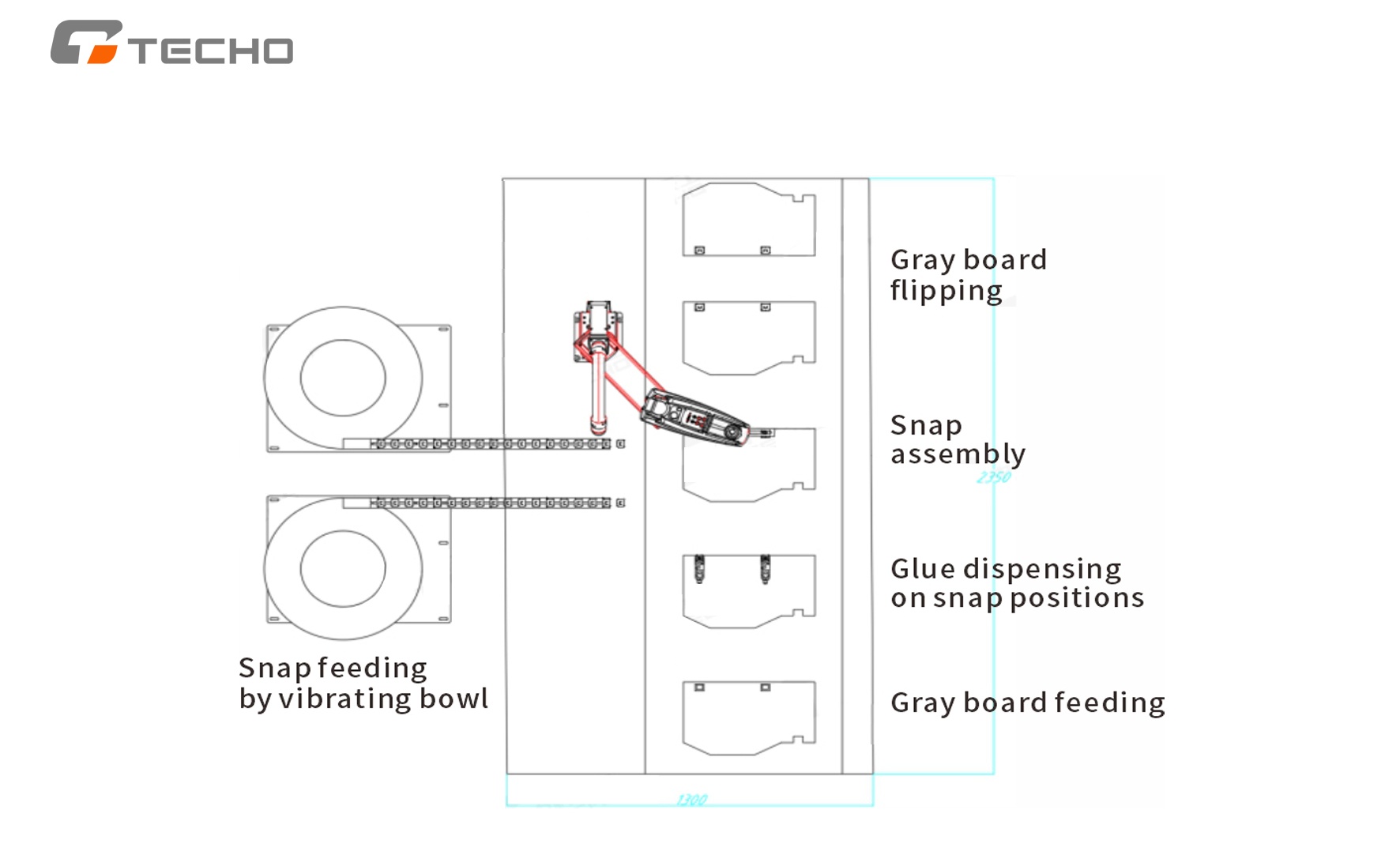

2.Excellent Stability: Multi-station linear conveying ensures precise glue dispensing, positioning, and assembly.
3.High Automation: Full automation of gray board feeding, snap glue dispensing, snap assembly, and gray board flipping.
4.Compact & Efficient: Small footprint(2.5*1.65*1.8m), high production efficiency, high positioning accuracy, and high yield.
5.Seamless Integration: Compatible with barrel forming lines and downstream equipmet.
| Item | Specification |
|---|---|
| Applicable Products | Liquor barrel, mouth strip, cover plate |
| Finished Product Size (mm) | L: 220–350 W: 83–130 H: 83–130 |
| Capacity | 20–25 pcs/min |
| Electrical Requirements | AC 380V, 0.6–0.8 MPa |
| Machine Dimensions (m) | 2.5 × 1.65 × 1.8 |
| Machine Weight | 1300 KG |
|
Components |
Picture |
Quantity |
Quality Standard |
|

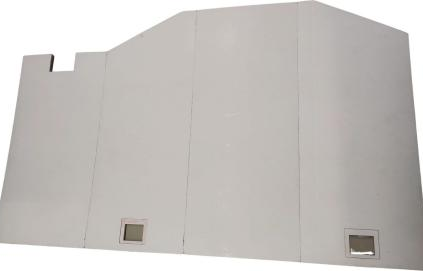

Gray Board |
|
1 |
Feeding Material Requirements: 1.Snap hole areas must be clean and free of waste. 2.Overall gray board deformation ≤ 1 mm. |
|

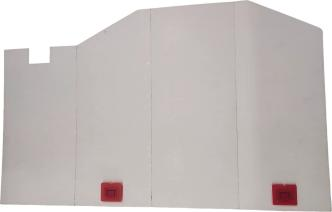

Snap |
|
1 |
/ |
|
Gray Board Snap-Assembly Finished Product |
|
1 |
1.Assembly must be tight and secure, with no missing snaps, glue overflow, or reversed installation. 2.Gray board surface must be free from scratches, dents, or other damage. |
