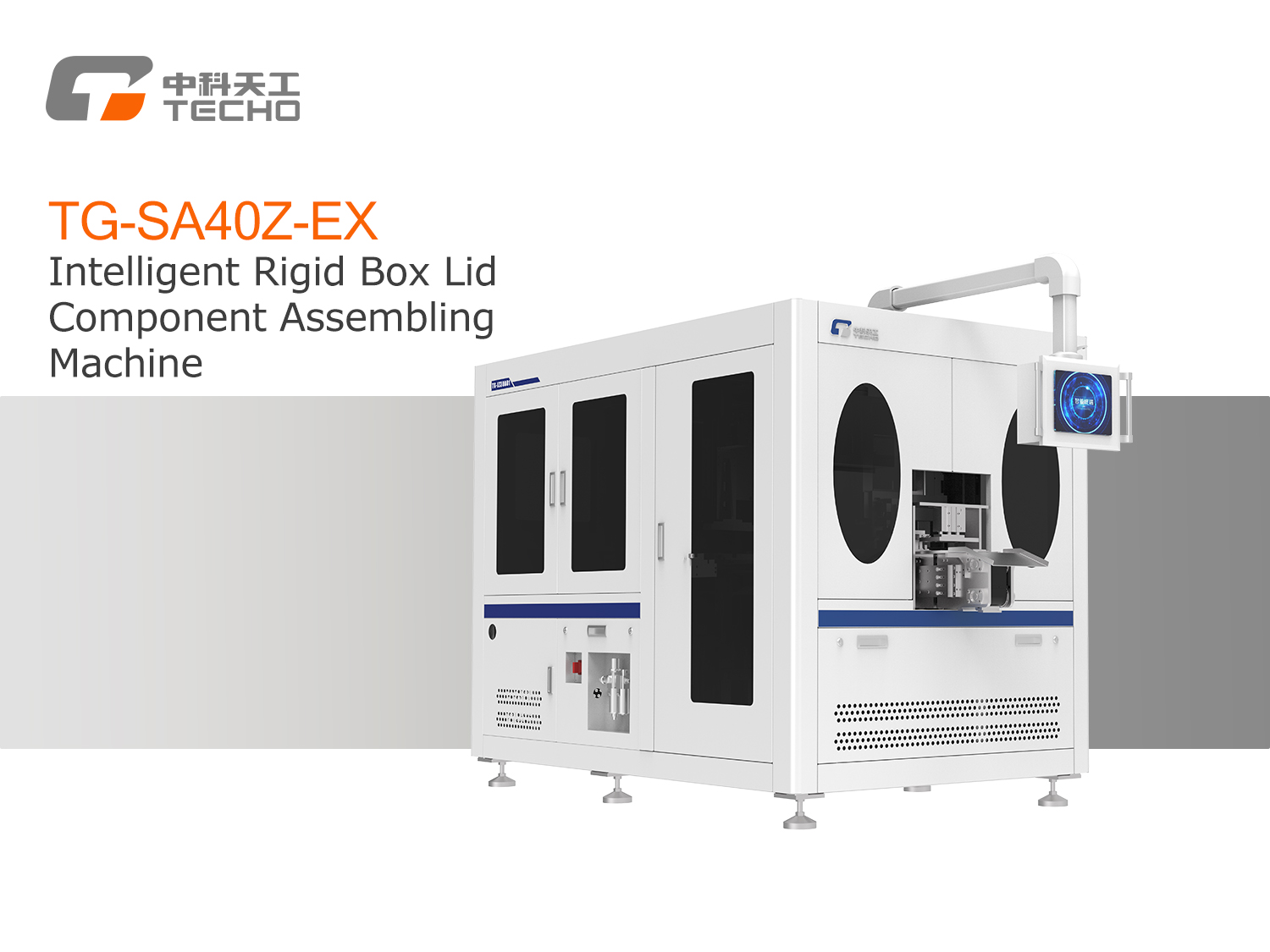

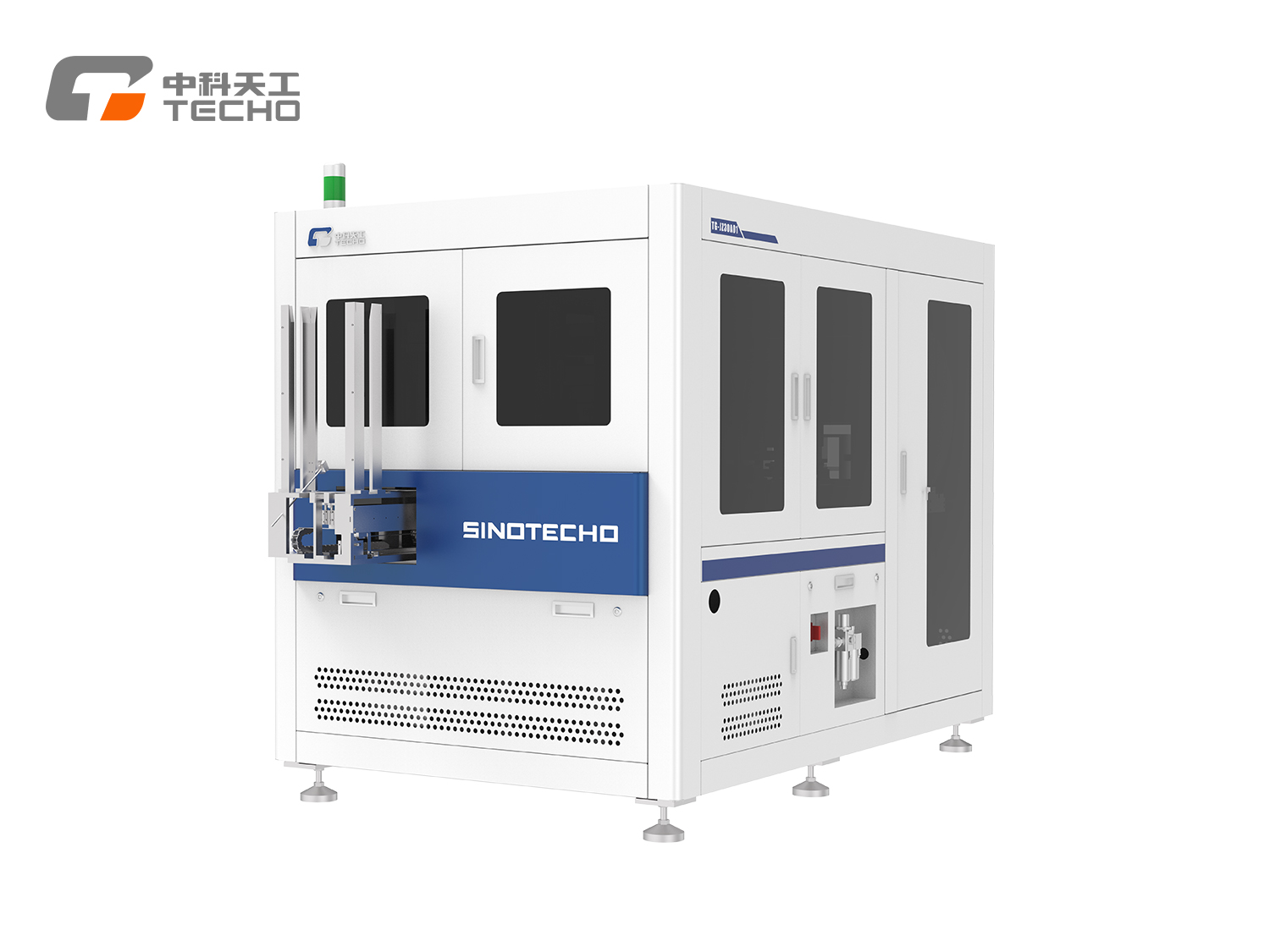

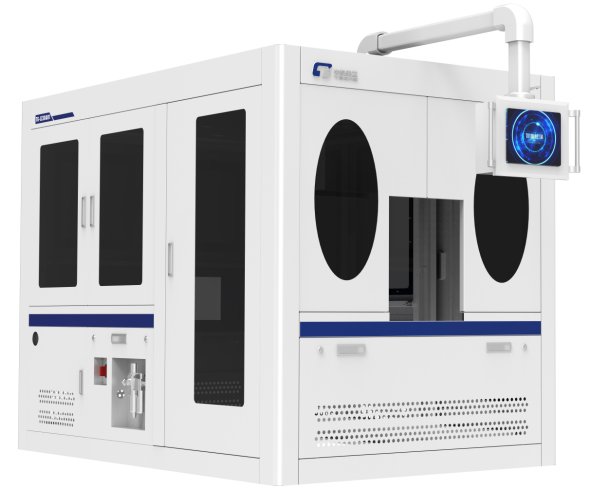

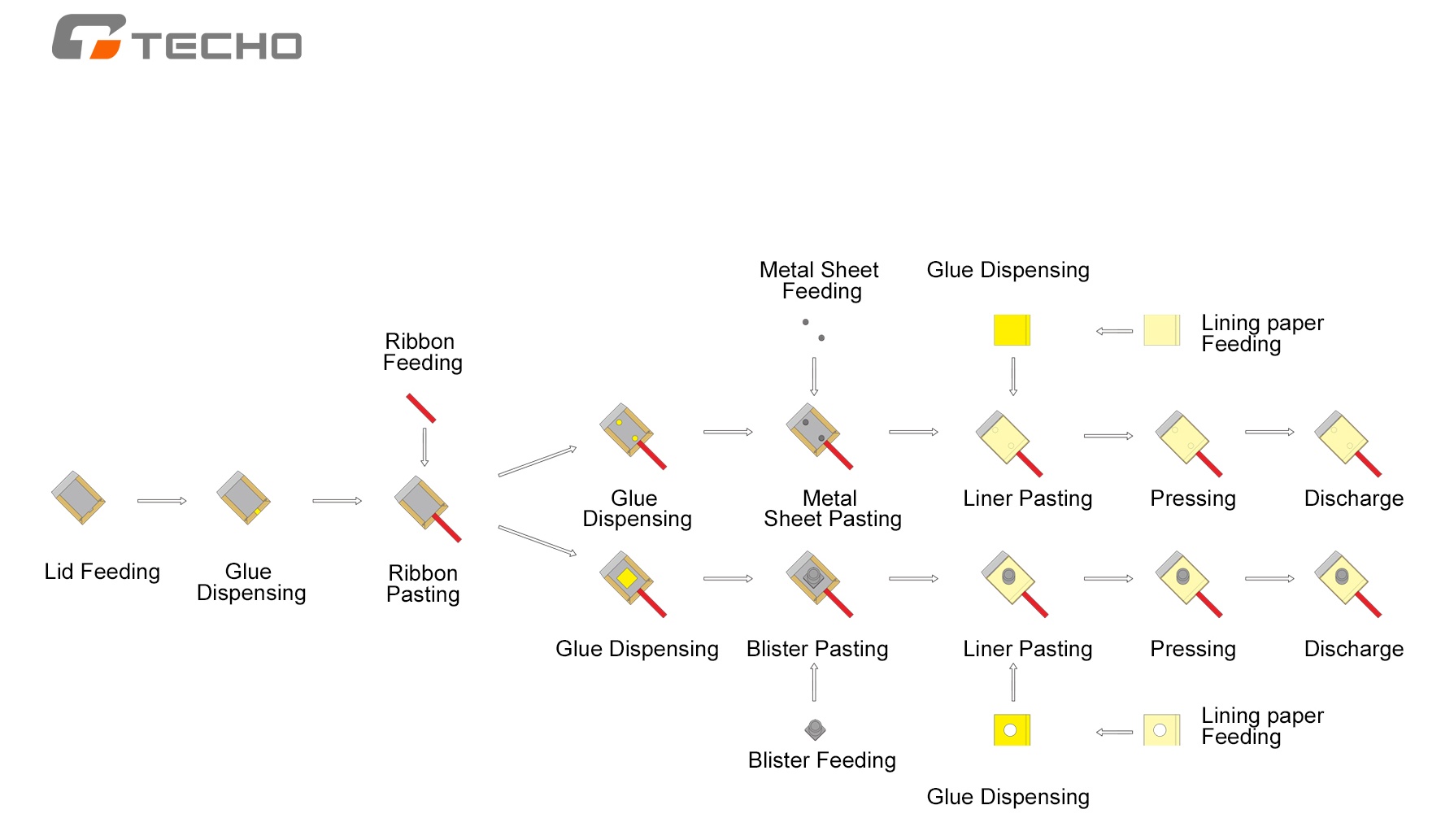

The TG-SA40Z-EX Intelligent Rigid Box Lid Component Assembling Machine is a fully automated solution developed by Sinotecho specifically for rigid box lid production. It can handle components such as ribbons, liners, blister inserts, metal sheets, and magnets. The machine automatically assembles lid shells, ribbons, liners, and blister parts, performs pressing, and folds liner edges. Sinotecho has filed multiple patents for this production line, establishing a comprehensive patent protection system.
1.High Compatibility: Supports various box types, wide liner size range, adapts to ribbons of different widths and lengths, and accommodates liners with or without side tabs.
2.Automated Ribbon Handling: Automatic ribbon unwinding and cutting; suitable for light and dark-colored ribbons; clean cut without fraying; cut angle adjustable ±50°.
3.Modular Functions: Capable of assembling lid boards, liners, magnets, metal sheets, ribbons, and blister inserts; modules can be switched as needed.
4.High Efficiency & Yield: Stable and reliable production.
5.Standalone Production: Can operate independently outside the production line.
| Item | Specification |
|---|---|
| Applicable Products | Wine box lid assembly with liner and ribbon |
| Board Size Range | Length: 120–250 mm Width: 80–140 mm Thickness: 1–3 mm |
| Liner Size Range | Length: 140–270 mm Width: 120–180 mm Thickness: 0.1–0.2 mm |
| Blister Insert Dimensions | Length: 40–60 mm Width: 40–60 mm Height: 15–30 mm |
| Liner Grammage | 100–250 g/m² |
| Positioning Accuracy | ±0.1 mm |
| Production Speed | 25–30 pcs/min |
| Machine Power | 11 kW |
| Voltage | 380V ±10% |
| Air Pressure | 0.6–0.8 MPa |
| Machine Dimensions | L 2632 × W 1130 × H 2544 mm |
| Machine Weight | 1100 kg |
