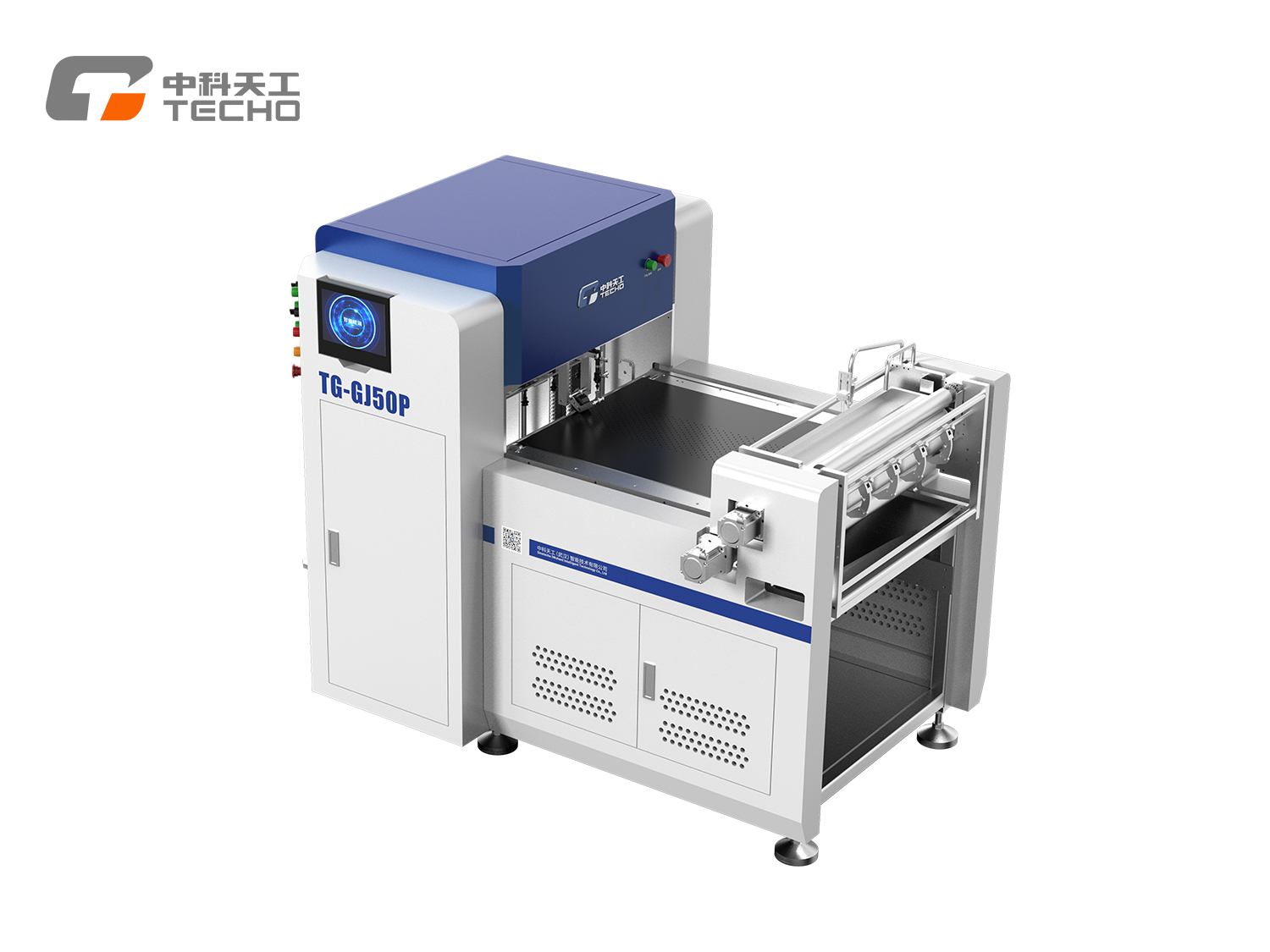

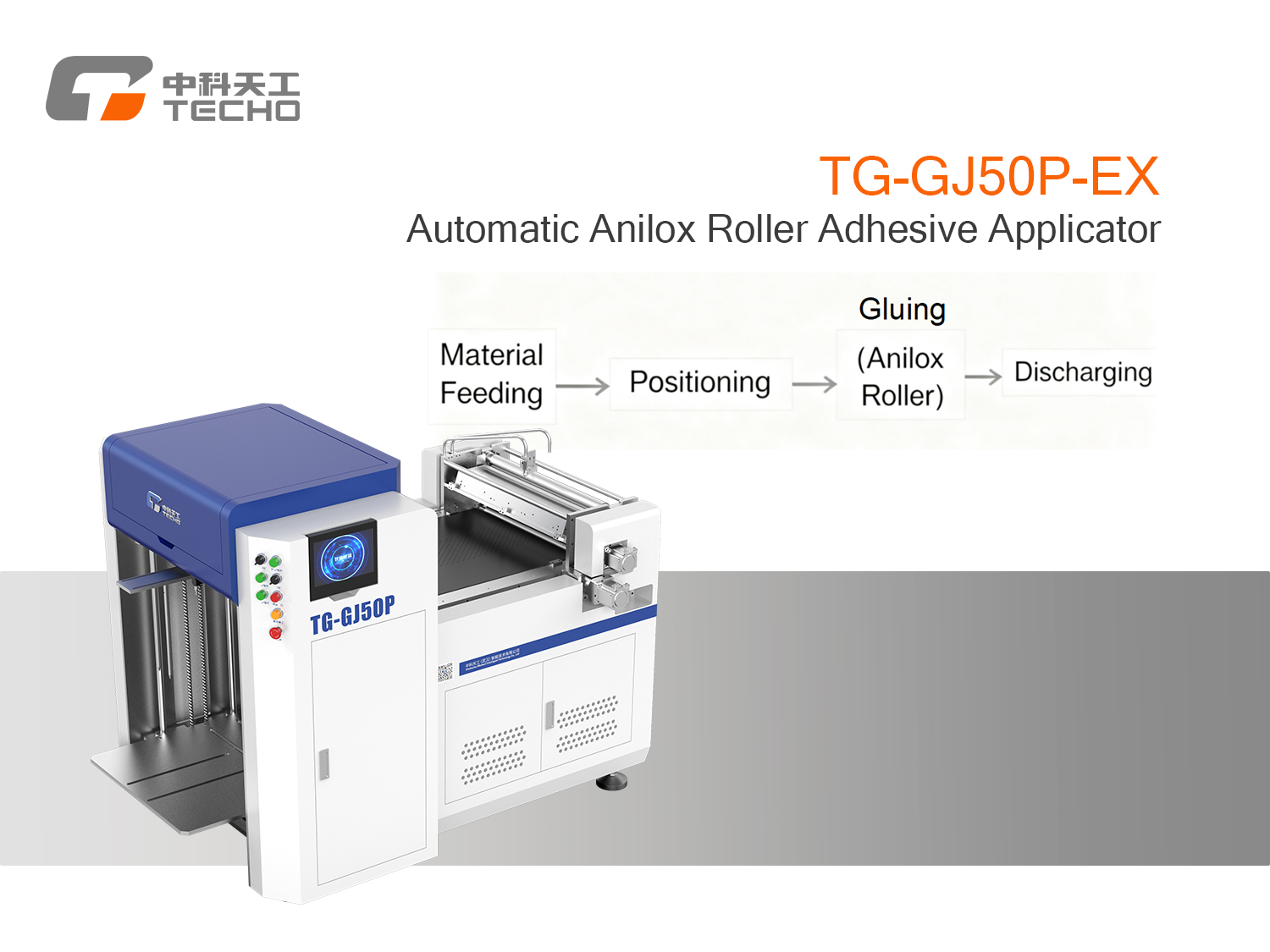

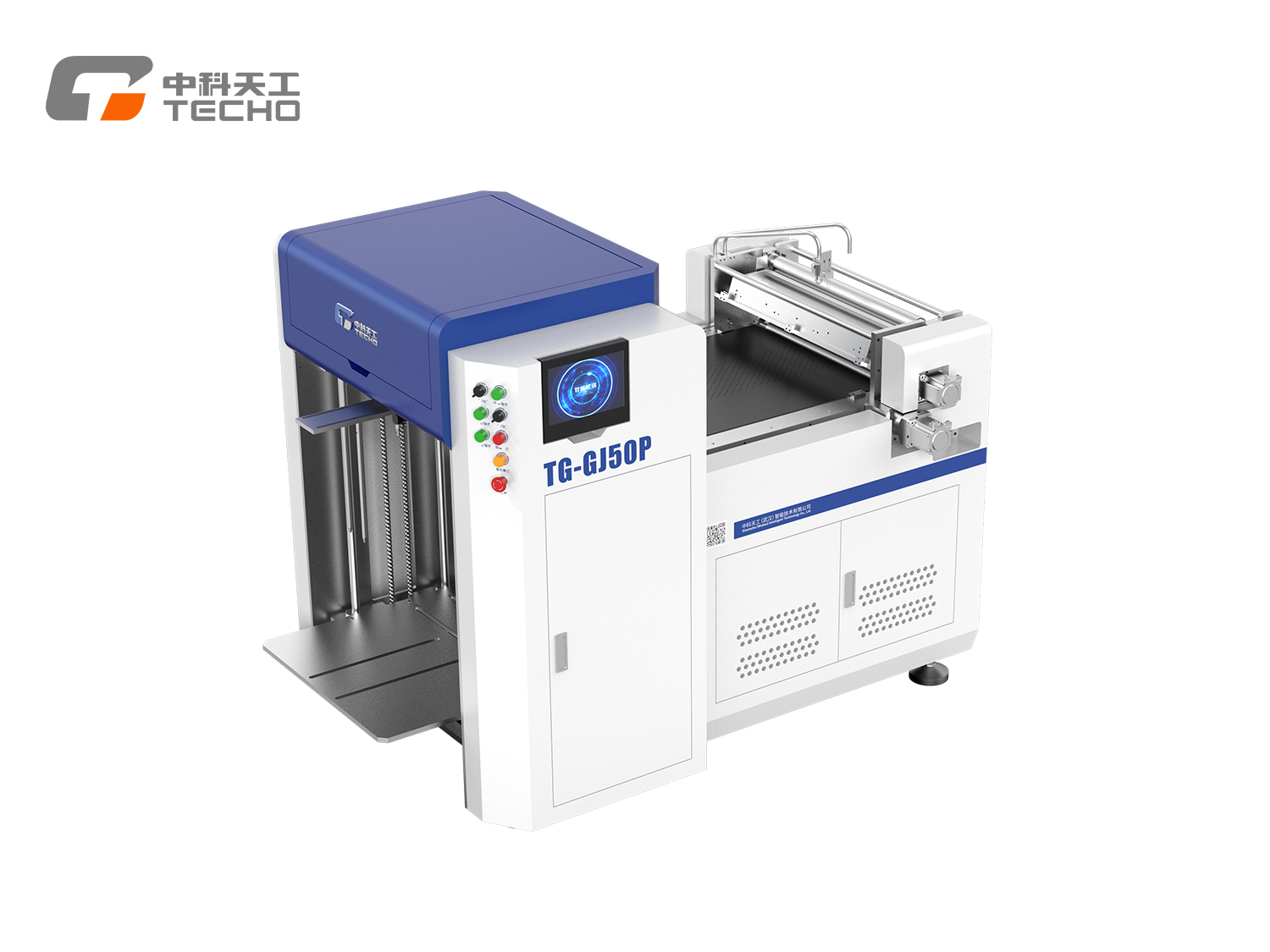

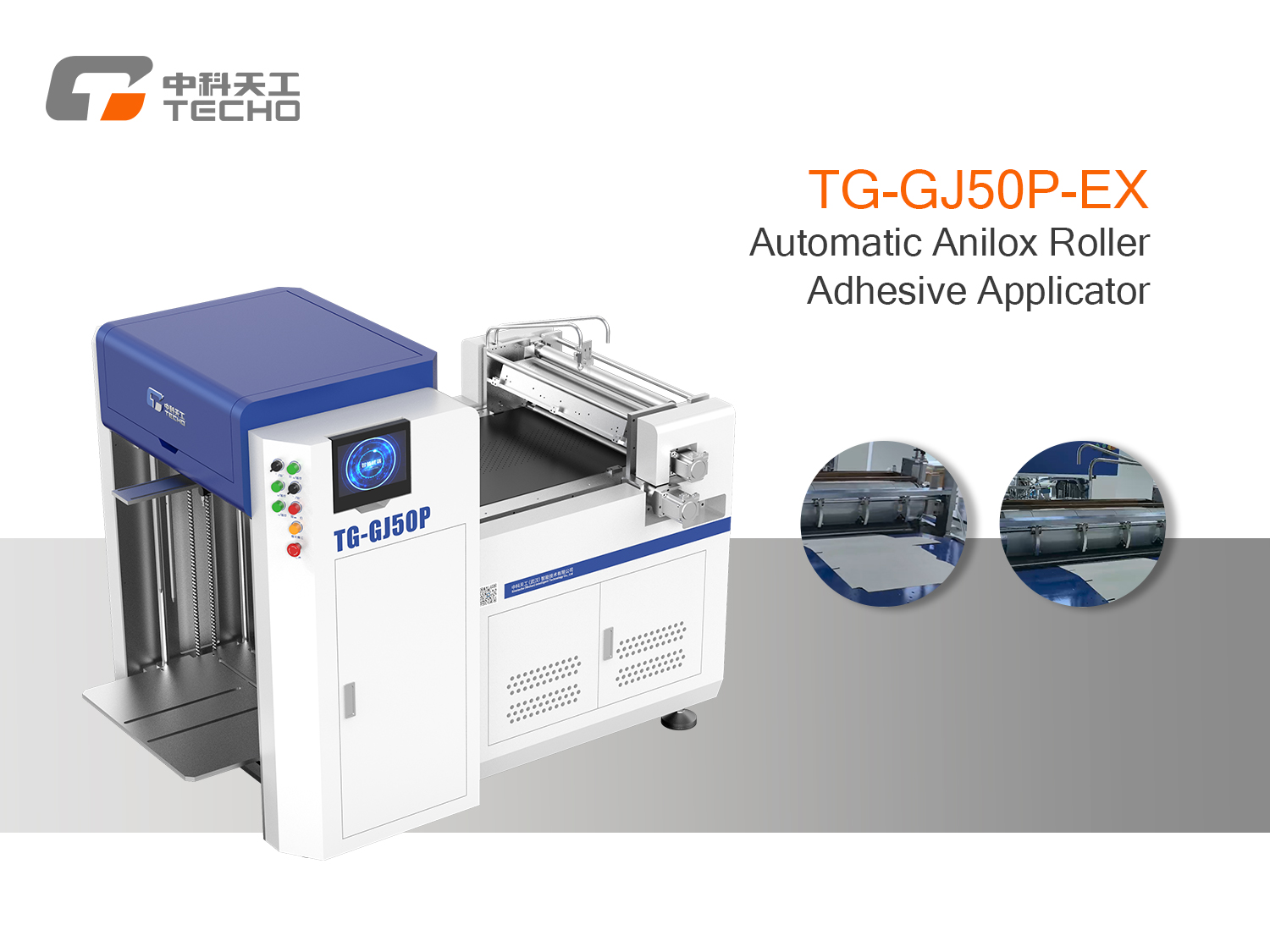

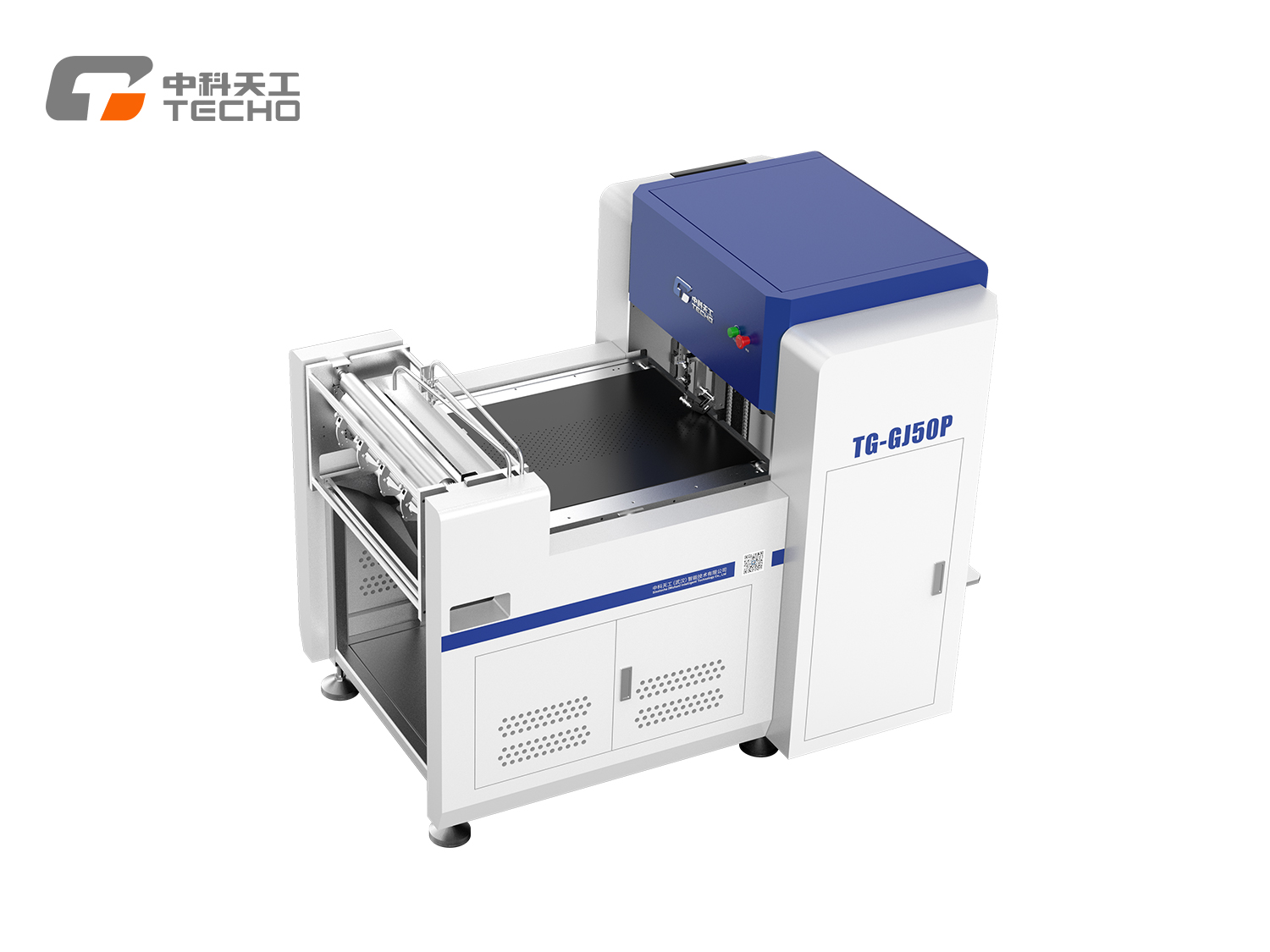

The TG-GJ50P-EX Automatic Anilox Roller Gluing Machine is an advanced gluing and coating equipment designed for luxury box packaging, premium rigid box production, and premium paper packaging lines. This high-precision automatic gluing machine integrates anilox roller coating technology, visual positioning, and robotic automation to deliver stable and accurate adhesive application.
Equipped with an imported YAMAHA robot, the machine ensures ±0.1mm positioning accuracy and fast size adjustment. Its patented anilox roller gluing process provides consistent glue control while reducing glue consumption by 30%. The dual-channel continuous feeding system minimizes downtime and boosts productivity.
The TG-GJ50P-EX is the ideal automated packaging solution for manufacturers seeking efficient, precise, and eco-friendly gluing performance in smart packaging production lines.
| Item | Specification |
|---|---|
| Applicable Paper Sizes | L: 175–650 mm W: 115–580 mm |
| Surface Paper Thickness | 157–250 g/m² |
| Positioning Accuracy | ±0.1 mm |
| Surface Paper Thickness | 0.1–0.3 mm |
| Production Capacity | 1500–1800 pcs/h |
| Air Supply | 0.6–0.8 MPa |
| Power Supply | AC 380V ±10%, 30 kW |
| Product Weight | 600 KG |
| Product Dimensions (L × W × H) | 1600 × 1300 × 1500 mm |
1.Wide compatibility with various box sizes, adaptable to different packaging formats;
2.Equipped with YAMAHA robotic system, offering high precision and quick changeover;
3.Anilox roller adhesive coating technology, ensuring precise and stable glue control.
1.Patented anilox roller adhesive application — reduces adhesive usage by up to 30%.;
2.Dual-channel continuous feeding system, minimizing downtime for material loading and improving production efficiency;
3.High-precision vision positioning technology, achieving accuracy of ±0.1 mm.
