The TG-KC30B-EX is a high-precision grooving machine for luxury packaging boxes. Featuring air-suction feeding, dual-row knife beams, and automatic size adjustment, it delivers fast, stable, and accurate grooving—up to ±0.04 mm precision and 180 pcs/min efficiency.
| Item | Specification |
|---|---|
| Maximum Grooving Quantity | 8 slots |
| Feeding Guide Adjustment Method | Electric adjustment |
| Blade Adjustment Method | Automatic size adjustment |
| Blade Row Quantity | Dual-row, full-row adjustable |
| Angle Adjustment | Blade row adjustment |
| Standard Accuracy | ±0.1 mm |
| Highest Accuracy | ±0.04 mm |
| Working Efficiency | 60–180 pcs/min |
| Working Speed | 15–35 m/min |
| Max Workpiece Size (Two Feeding Guides) | L 600 × W 450 mm |
| Min Workpiece Size | L 140 × W 140 mm |
| Feeding Width | L 600 × W 450 mm |
| Card Paper Thickness | 220–600 g/m² |
| Greyboard Thickness | 0.8–3.0 mm |
| Air Supply | 10 L/min at 0.6 MPa |
| Motor Power | 3.2 kW, 380 V |
| Machine Dimensions (L × W × H) | 2800 × 1950 × 1700 mm |
| Machine Weight | 1870 kg |

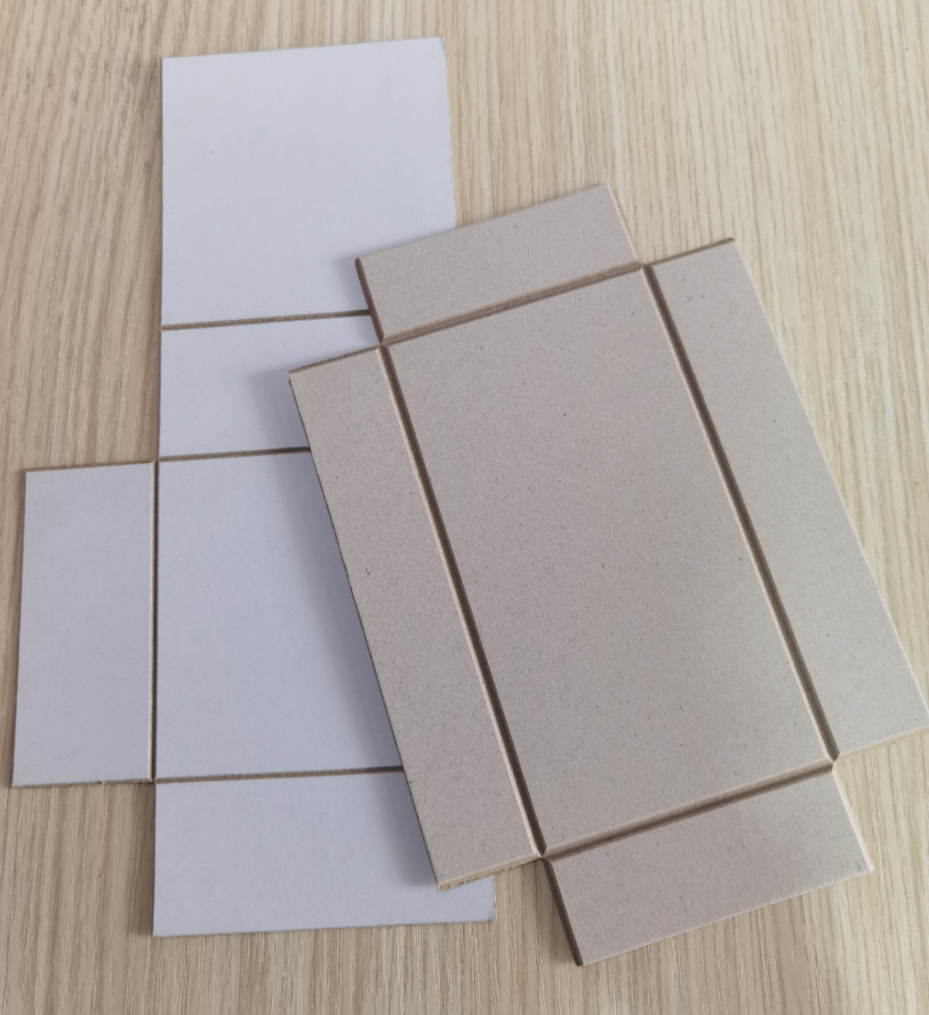

1.High Compatibility: Suitable for various face papers; ideal for grooving wine boxes, cigarette boxes, and premium greyboard packaging.
2.Precise Adjustment: Electric feeding guide fine adjustment with magnetic scale digital display for accurate positioning and repeatability.
3.High-Precision Grooving: Up to 8 grooves per sheet; standard accuracy ±0.1mm and highest precision ±0.04mm.
4.Smart Blade System: Automatic size adjustment with dual-row blade beams; full-row adjustment and independent blade angle control.
5.Wide Material Range: Handles 220–600g coated paper and 0.8–3.0mm greyboard.
6.Stable Feeding: Belt friction feeding ensures smooth and stable operation at high speed.
7.Dual Channel Design: Dual-channel feeding enhances productivity.
8.Automatic Waste Removal: Side-mounted waste removal keeps production clean and efficient.
9.Dual Automatic Blade Grinder: Integrated automatic grinding system ensures consistent cutting quality.
