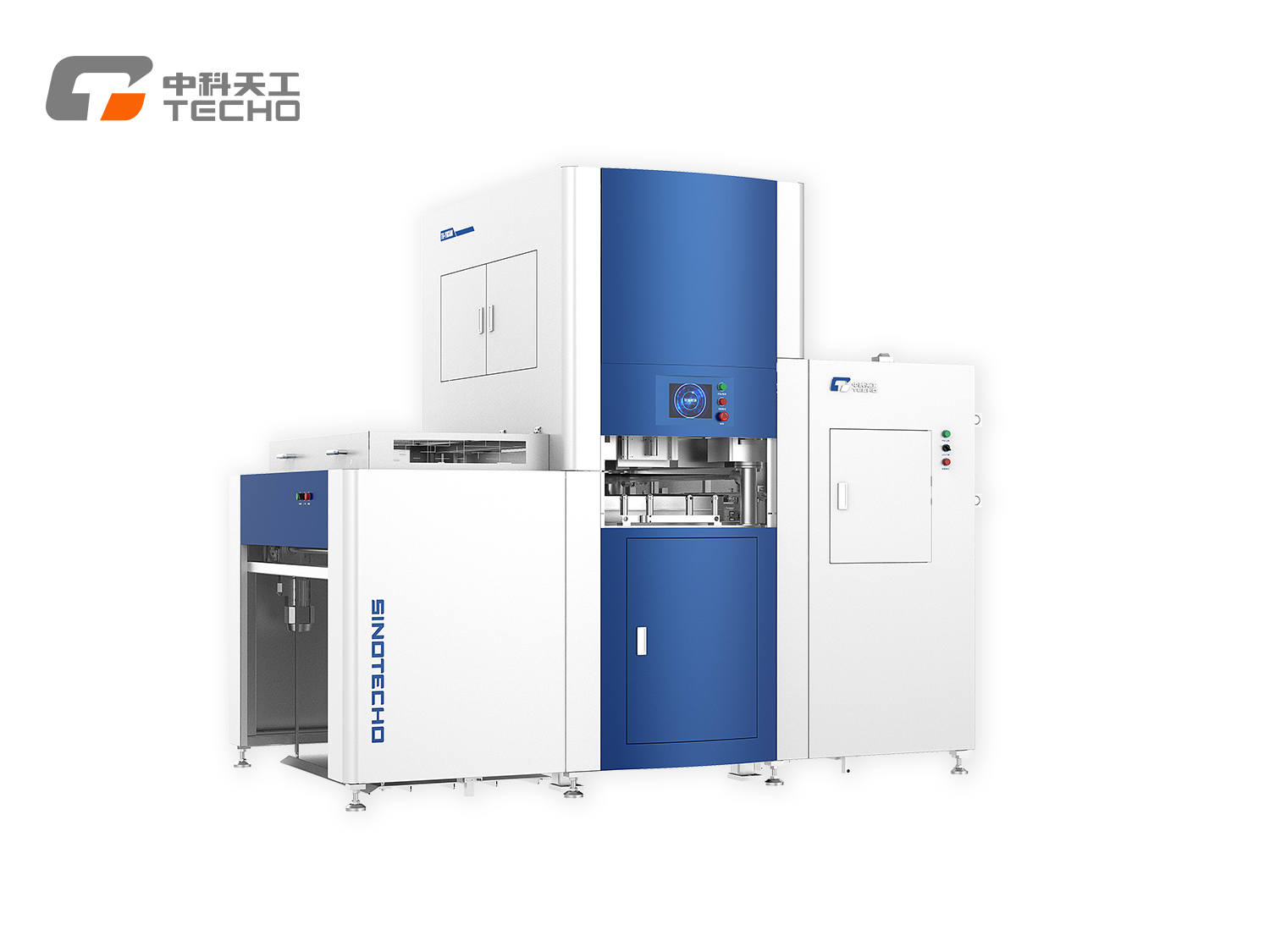

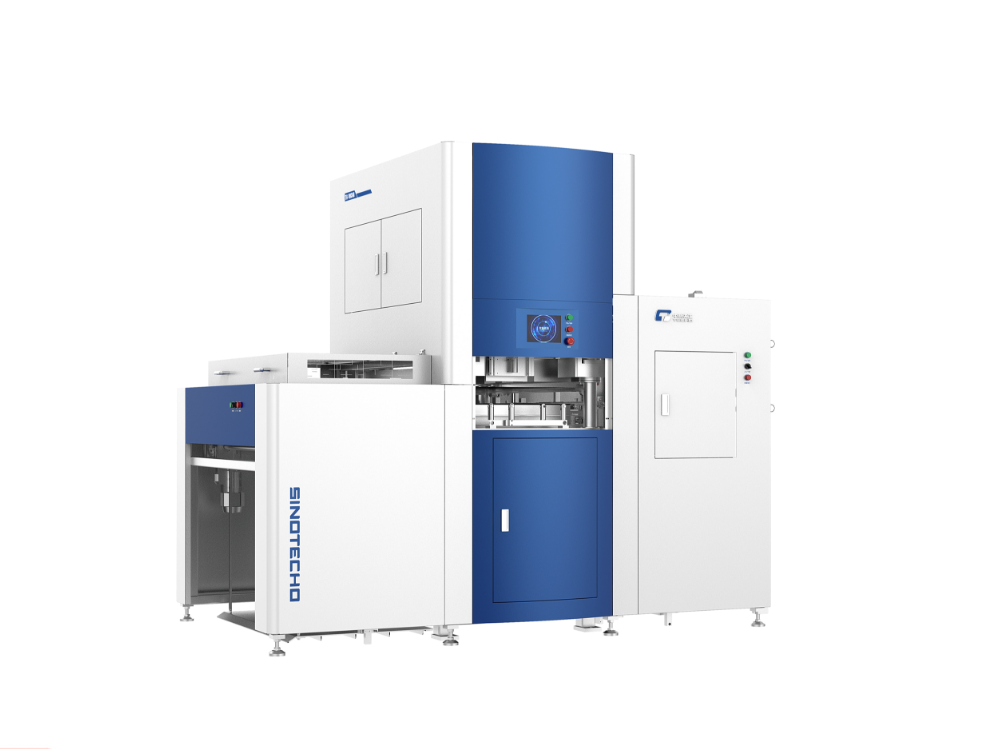

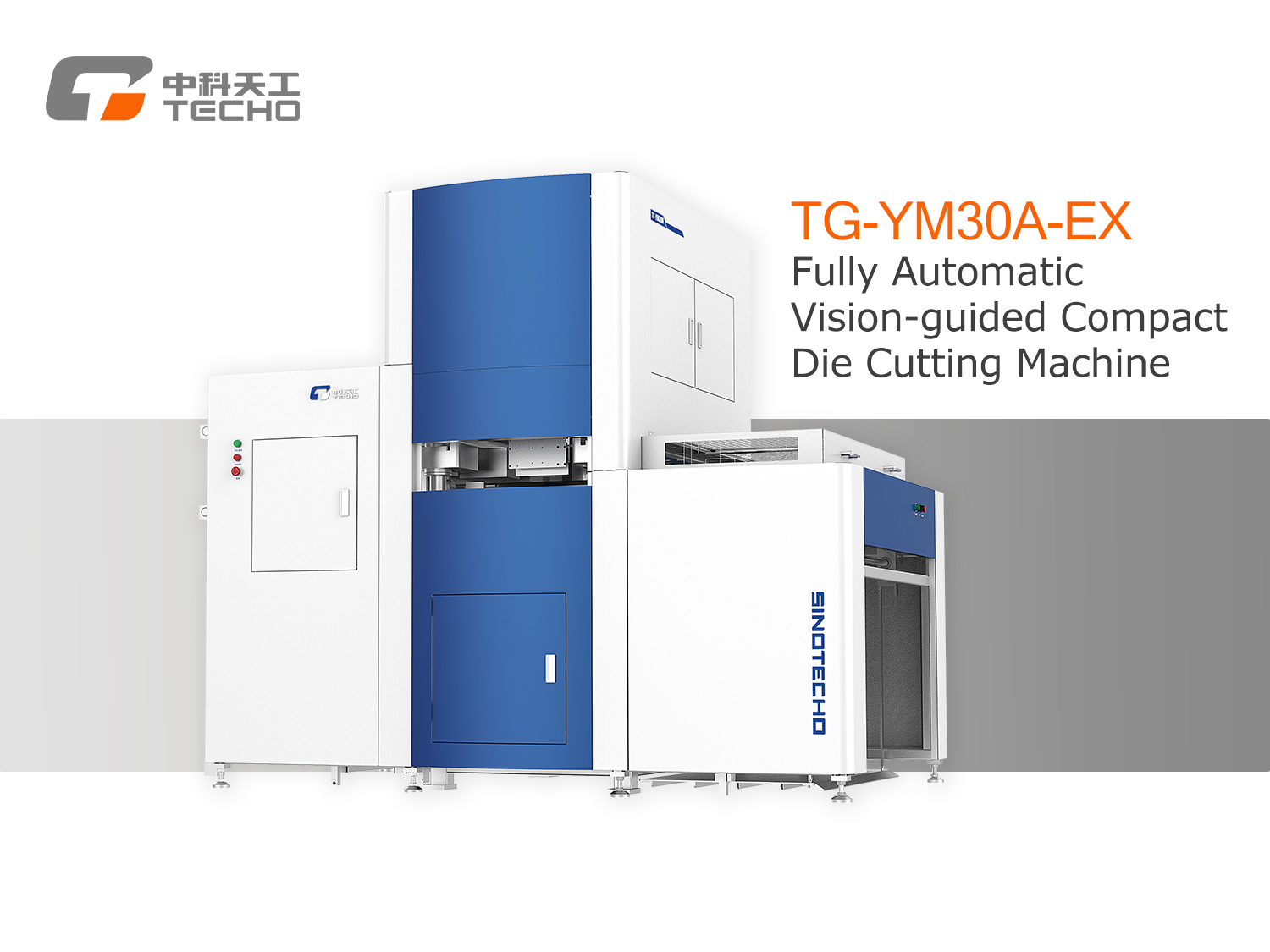

The TG-YM30A is engineered for the printing and packaging industry, specifically to meet the demand for efficient and precise die-cutting and shaping. This advanced system automates the entire process, including feeding, precision die-cutting, and unloading. It is compatible with a wide range of paperboard and gray board stocks, making it an ideal solution for converting operations.
Designed with a compact footprint, the TG-YM30A boosts productivity without demanding extensive floor space. Its modular design ensures straightforward operation, quick setup, and fast changeovers between jobs. The machine delivers high production output with clean, sharp, and visually appealing cuts, guaranteeing superior finished product quality.
1.Rapid Setup: Complete die mold adjustment within 15-30 minutes, greatly enhancing production efficiency.
2.High Precision: Achieves a cutting accuracy of ±0.1 mm, ensuring consistently precise and controllable performance.
3.Ease of Operation: One skilled operator can efficiently run up to three machines simultaneously, reducing labor costs and increasing productivity.
4.Operational Safety: Minimizes the risk of workplace injuries and ensures safe, reliable operation.
5.Compact Footprint: Occupies minimal floor space, allowing for easier maintenance and management.
| Item | Specification |
|---|---|
| Applicable Materials | Grey board, White cardboard, Surface paper |
| Feeding Method | Pallet batch feeding |
| Delivery Method | Automatic collection Pallet batch discharge |
| Maximum Paper Stack Height (Feeding) | 1100 mm |
| Maximum Paper Stack Height (Delivery) | 1000 mm |
| Die Cutting Method | Flatbed, Automatic die cutting |
| Maximum Paper Size | Width 900 × Length 650 mm |
| Minimum Paper Size | Width 600 × Length 400 mm |
| Break Points | None |
| Min. Gripper Margin | 10–12 mm |
| Applicable Sheet Thickness (Grey board / Surface paper) |
0.15–2 mm or 157–2200 g/m² |
| Maximum Die Cutting Size | 900 × 650 mm |
| Maximum Die Cutting Pressure | 80 T |
| Surface Paper Positioning Method | Vision-guided, Accuracy ±0.15 mm |
| Production Speed | 18–20 pcs/min |
| Noise Level | ≤90 dB |
| Machine Weight | ≤4.5 T |
| Machine Dimensions (L × W × H) | ≤3300 × 1650 × 2300 mm |
1.More convenient production: The machine automatically feeds and collects paper, eliminating manual handling.
2.Higher operational efficiency: One operator can control 3–4 machines simultaneously.
3.Increased single-machine daily output: Maximum production up to 1,500 pcs per hour.
4.Reduced product changeover time: Minimum setup time only 15 minutes per hour.
5.Lower operating costs: Minimum cost per machine is 560 USD, and labor cost per machine is reduced by 50%.
