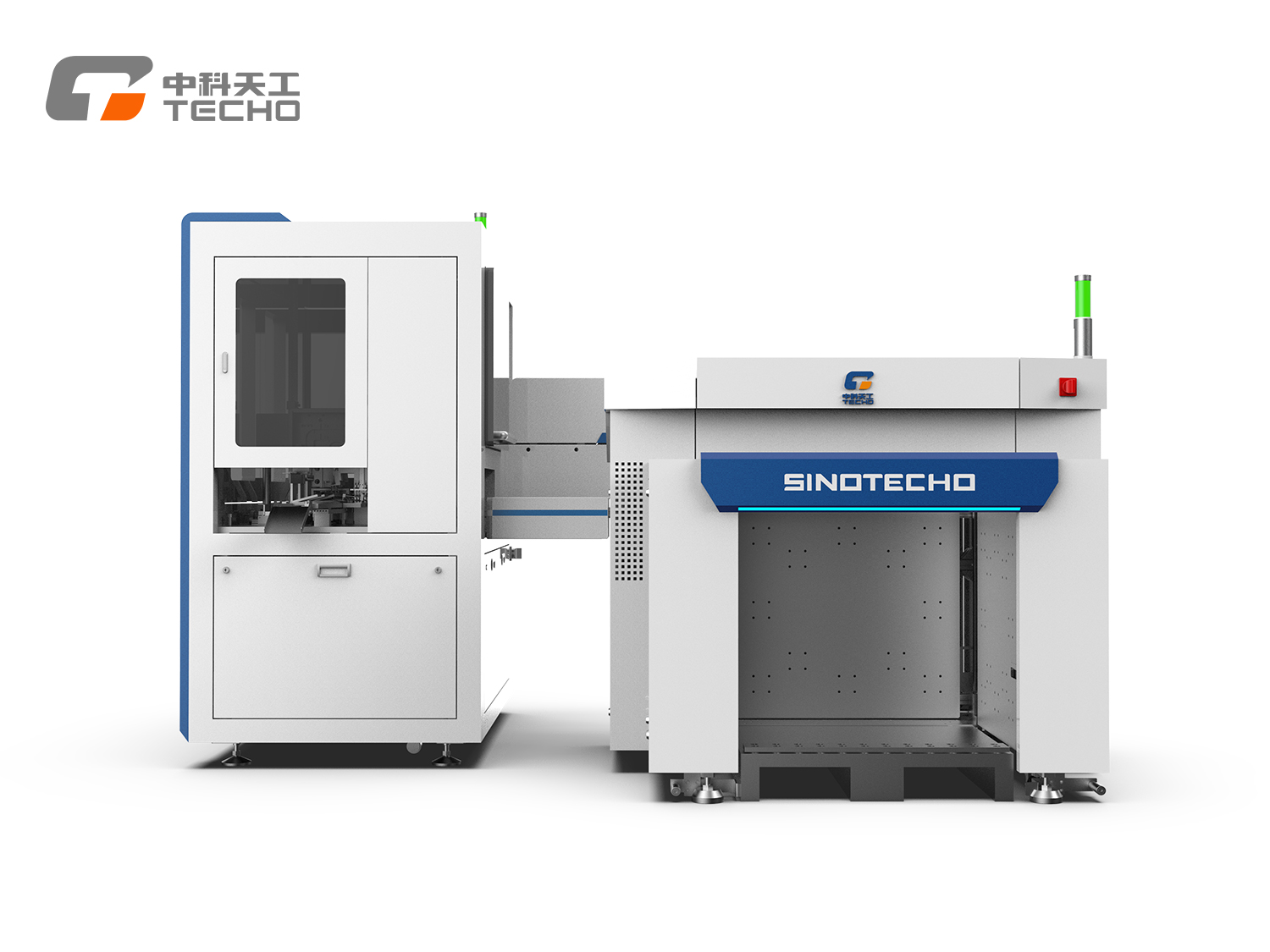

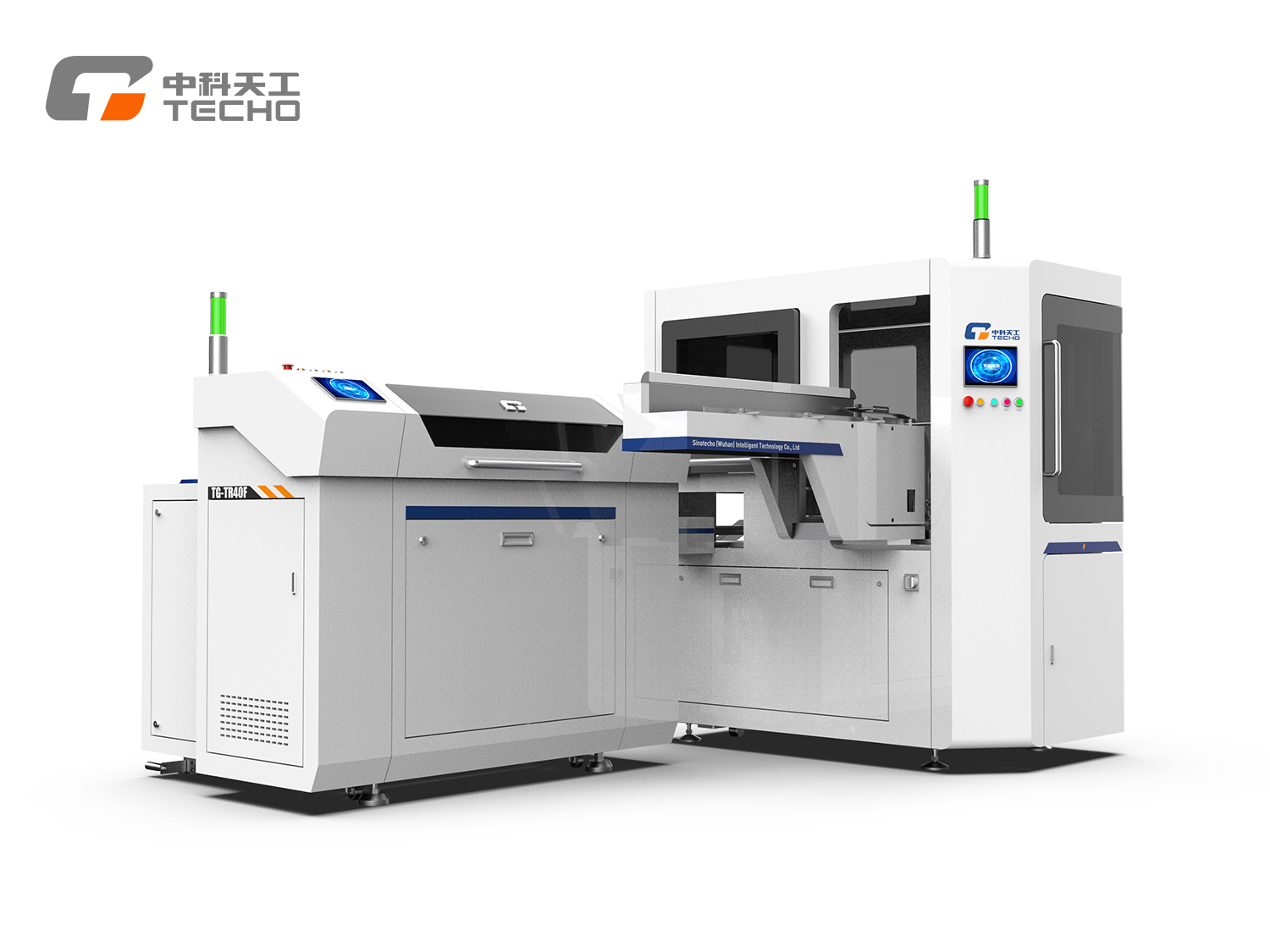

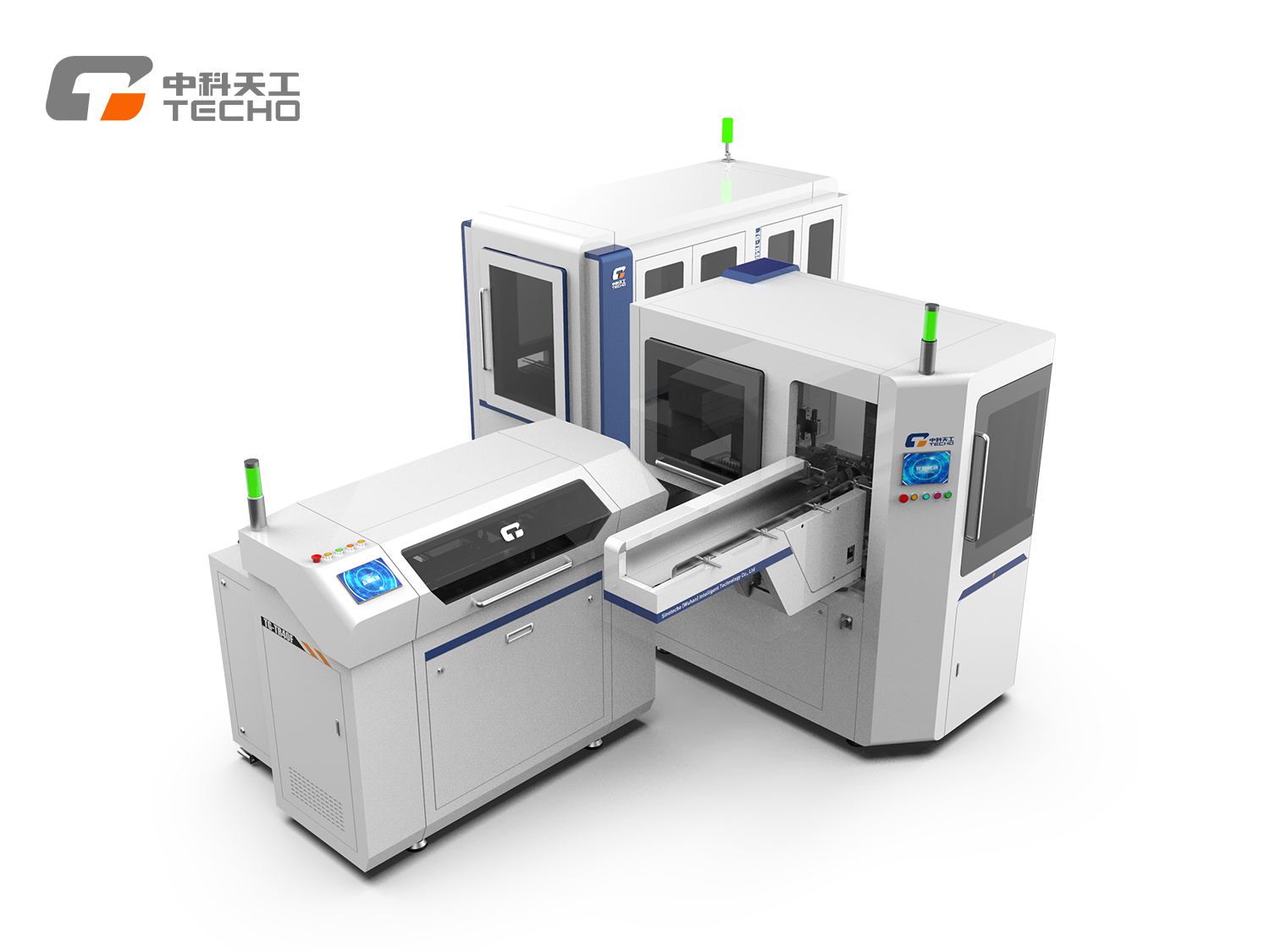

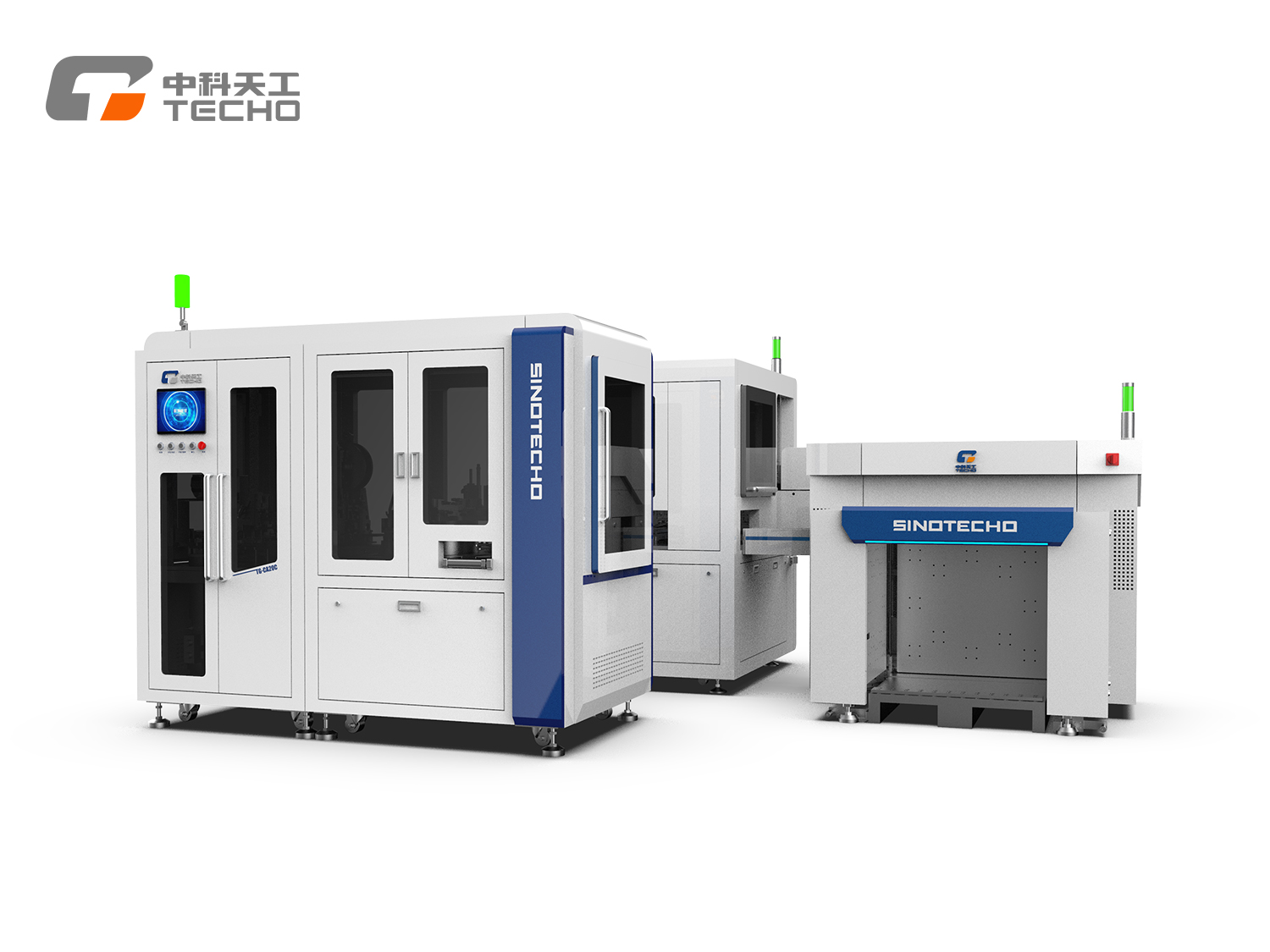

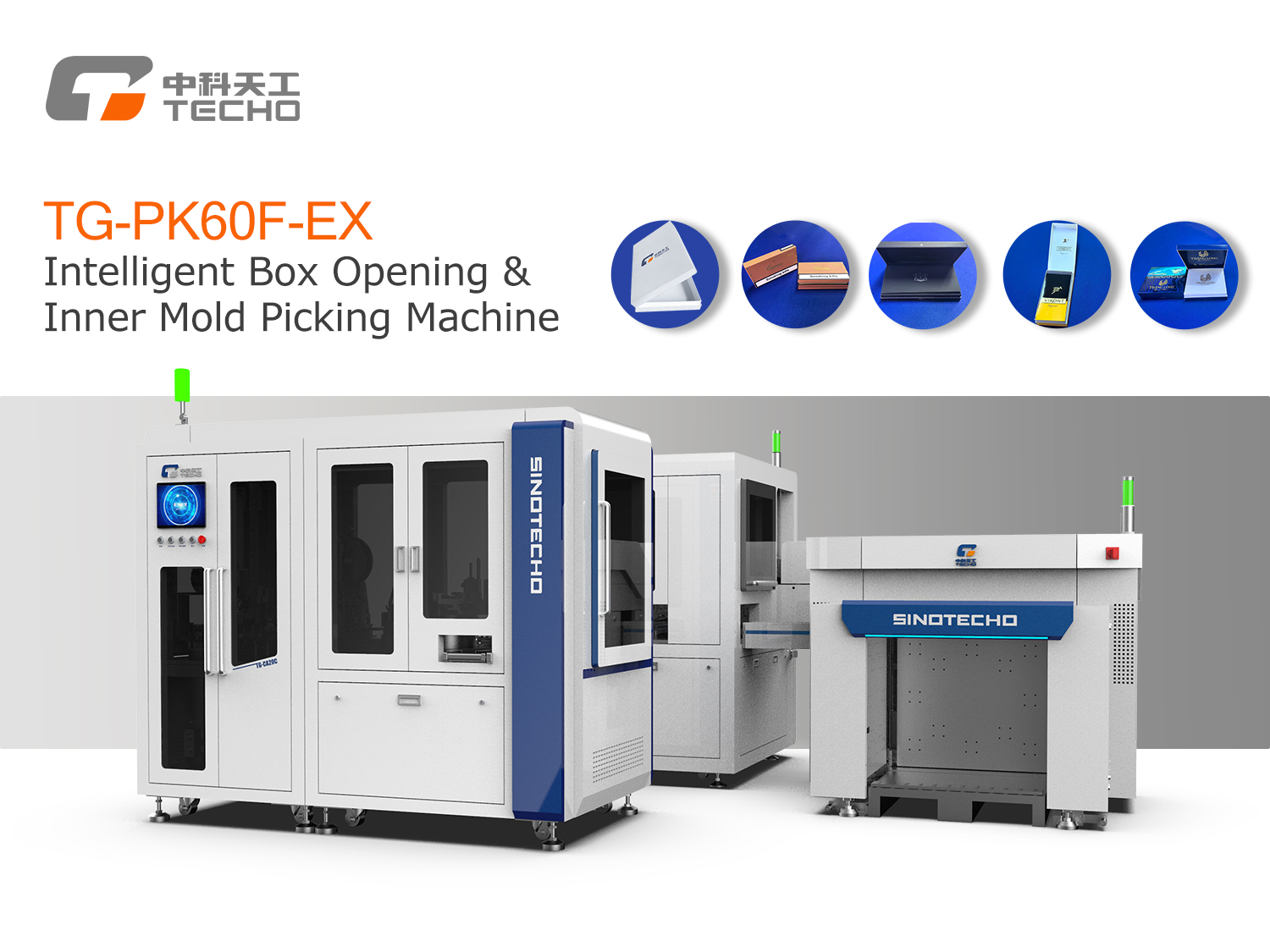

TG-PK60F-EZ is an intelligent machine specially developed by Sinotecho for opening boxes and picking inner molds of premium small boxes. It is compatible with a wide range of small box sizes, features a compact footprint, requires low floor load, and delivers extremely high production efficiency.
1.Compatible with a variety of small boxes;
2.High-precision positioning, ensuring accurate box opening and inner mold handling, reducing material waste;
3.High production efficiency and yield rate, stable operation, minimizing defects, suitable for high-volume continuous production;
4.Fully automated operation, significantly reducing manual labor;
5.Compact footprint with low floor load requirement, ideal for workshops with limited space or low floor bearing capacity;
6. Strong adaptability, low working environment temperature requirements, easy to deploy and operate.
| Item | Specification |
|---|---|
| Surface Paper Grammage | 130–250 g/m² |
| Surface Paper Size | Length: 155–300 mm Width: 85–165 mm |
| Applicable Box Size | Length: 60–121.5 mm Width: 60–105 mm Height: 15–30 mm |
| Positioning Accuracy | ±0.1 mm |
| Production Efficiency | ≥4200 pcs/h |
| Yield Rate | ≥98% |
| Air Pressure Requirement | 0.6–0.8 MPa |
| Power Supply | AC 380V ±10% |
| Machine Weight | 2500 kg |
| Machine Dimensions (L × W × H) | 4565 × 3100 × 2000 mm |
| Floor Load Requirement | 500 kg/m² |
| Working Environment Temperature | 22–26°C |
1.Intelligent fully automated operation, ensuring stable and reliable production;
2.±0.1 mm high-precision positioning, guaranteeing accurate mold picking and reducing box damage;
3.High efficiency and productivity, meeting the needs of continuous production lines;
4.Compact footprint with flexible installation, adaptable to existing workshop layouts;
5.Strong compatibility, suitable for various small box specifications;
6.High yield rate and low failure rate, ensuring high-quality continuous production.
