TG-AP30A-EX is an automated machine specially developed for assembling the lid and base of rigid (two-piece) boxes using inner connector paper.

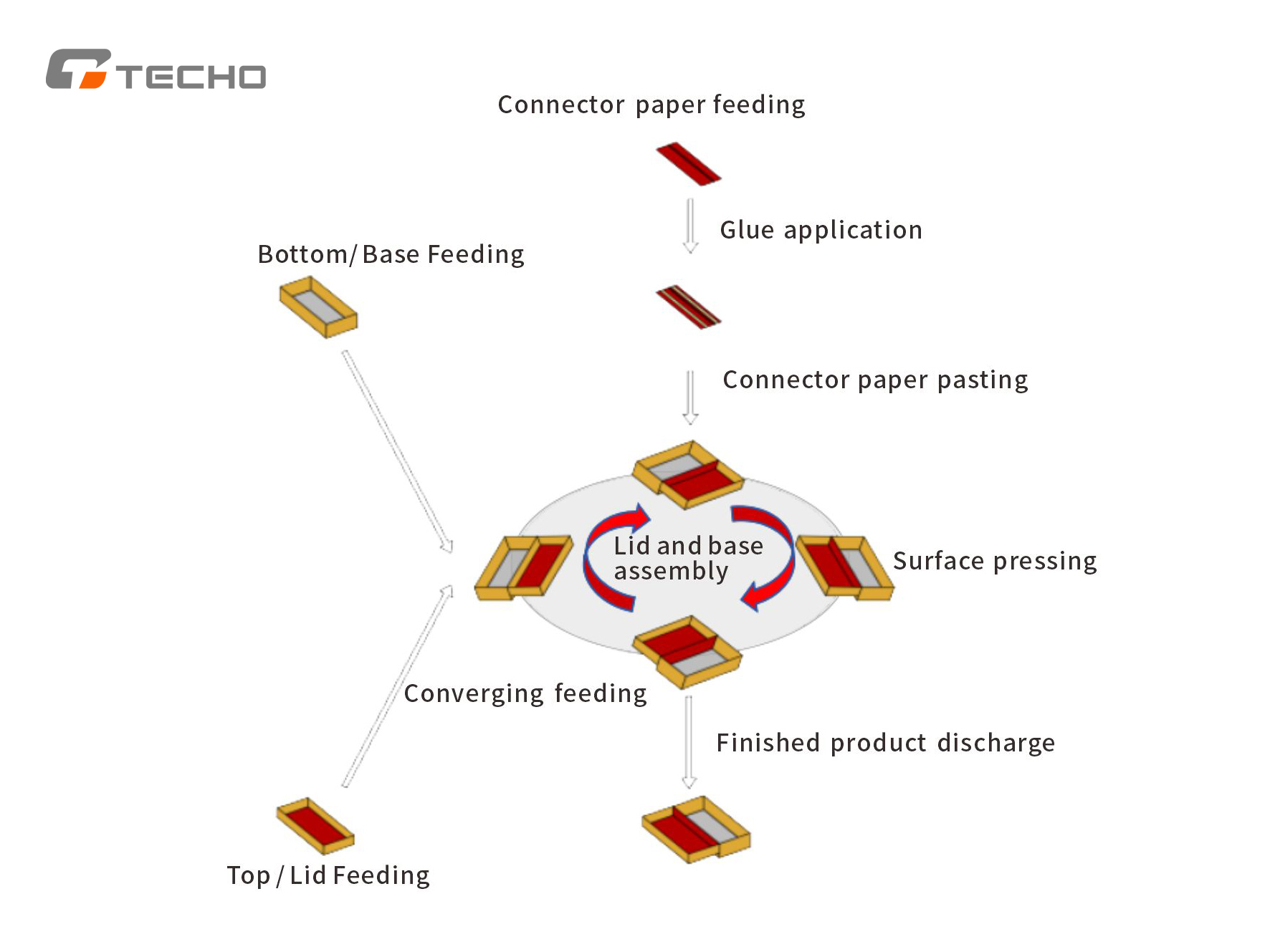

TG-AP30A-EX is an automated machine specially developed for assembling the lid and base of rigid (two-piece) boxes using inner connector paper. TG-AP30A-EX is an automated machine specially developed for assembling the lid and base of rigid (two-piece) boxes using inner connector paper. The machine performs glue application on the connector paper, automatically assembles it onto the inner side of the lid and base, carries out surface pressing, and completes the lid and base connection assembly process. It replaces manual operations, reduces labor intensity, saves manpower, and allows partial retrofitting of semi-automated production lines for better integration, enhancing the overall automation level of the production line.
| Item | Specification |
|---|---|
| Applicable Box Size | Minimum: 65 × 65 × 12 mm Maximum: 400 × 450 × 120 mm |
| Positioning Accuracy | ±0.2 mm |
| Production Efficiency | 1,000–1,200 pcs/h |
| Yield Rate | ≥98% |
| Air Supply Requirement | 0.6–0.8 MPa, 1.2 m³/min |
| Power Supply | AC 380V ±10% |
| Power | 6 kW |
| Machine Weight | 1500 kg |

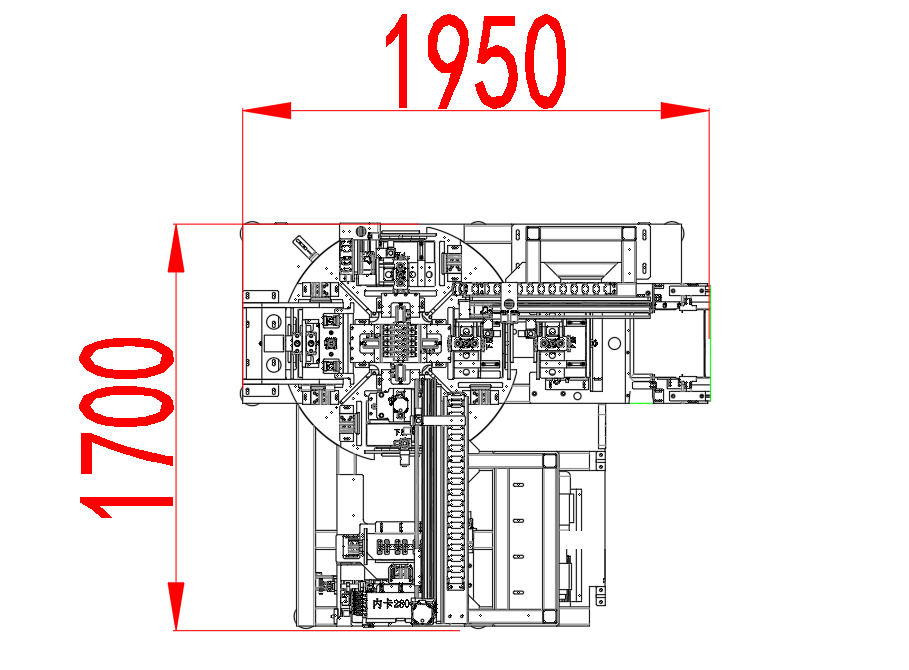

| Machine Dimensions (L × W × H) | 1.95 × 1.7 × 1.8 m |
