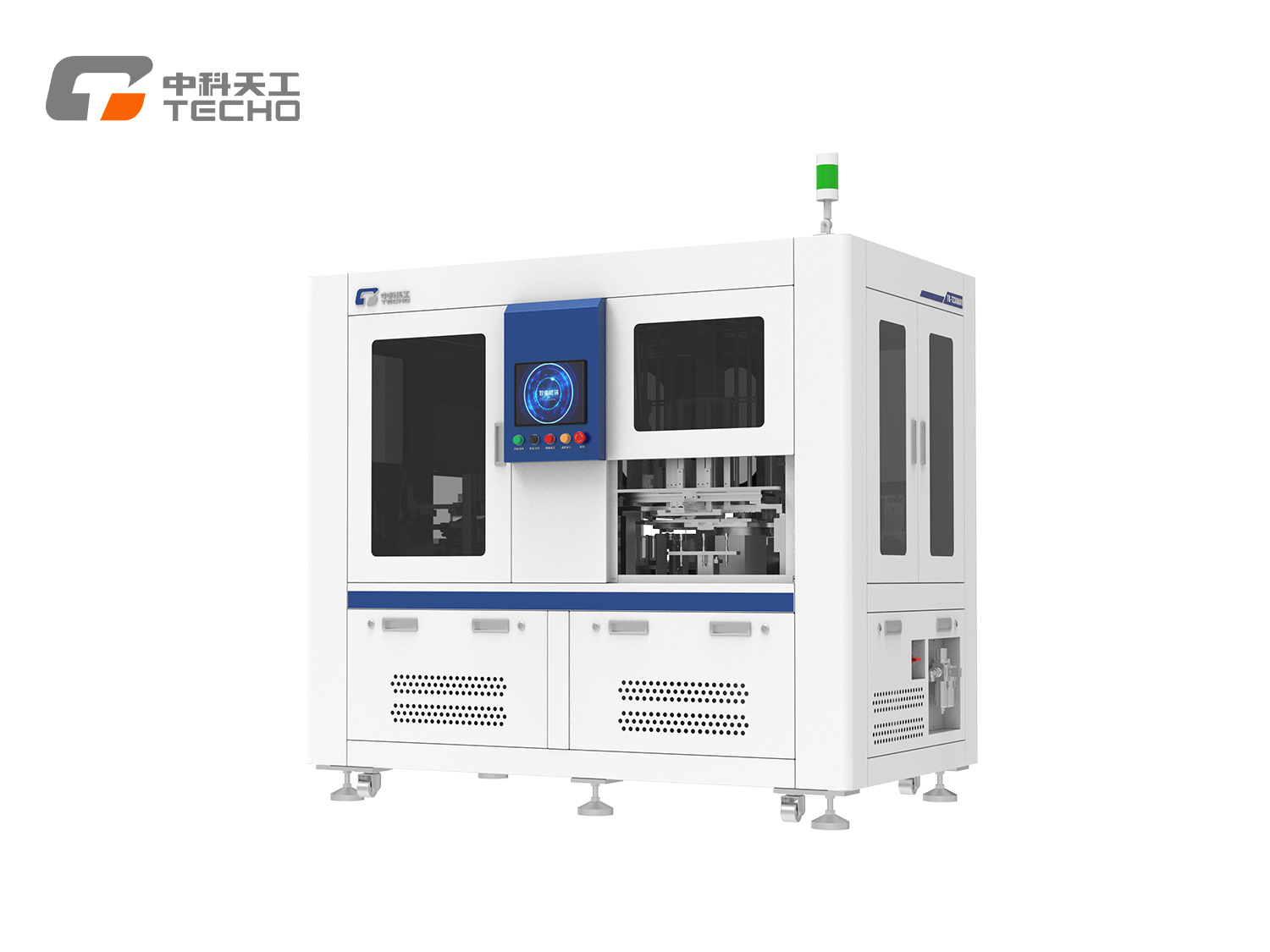

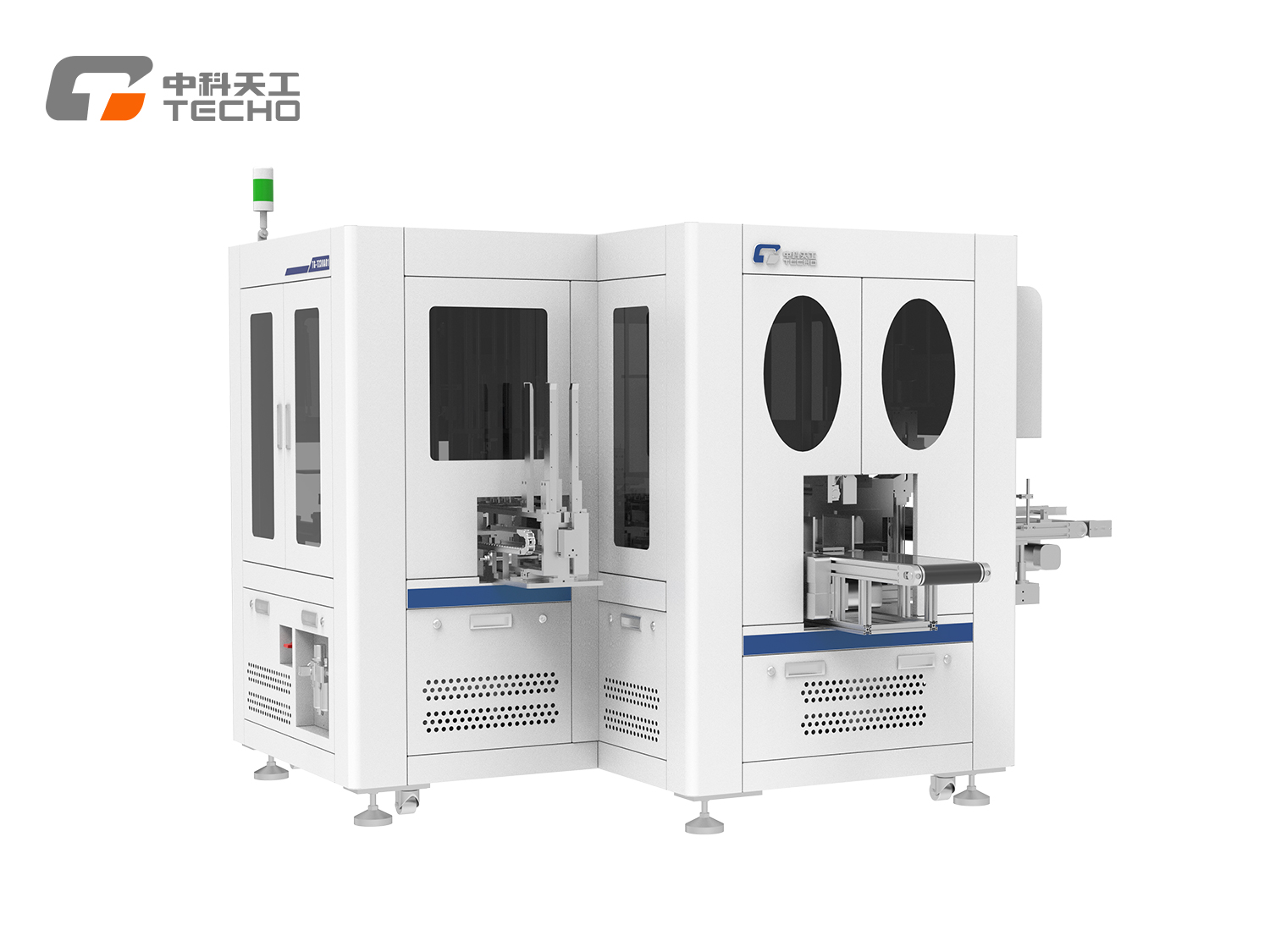

TG-GS40Z-EX Intelligent Barrel Body & Lid Assembly Machine is an automated assembly solution developed by Sinotecho specifically for the production of premium liquor packaging boxes with barrel body and lid assembly. The machine enables automatic assembly of barrel mouths and lids of various sizes. Multiple patents have been filed for this production line, ensuring a complete patent protection chain.
1.Strong Compatibility: Suitable for a wide range of box types and adaptable to barrels, lids, and mouth strips of various lengths and widths.

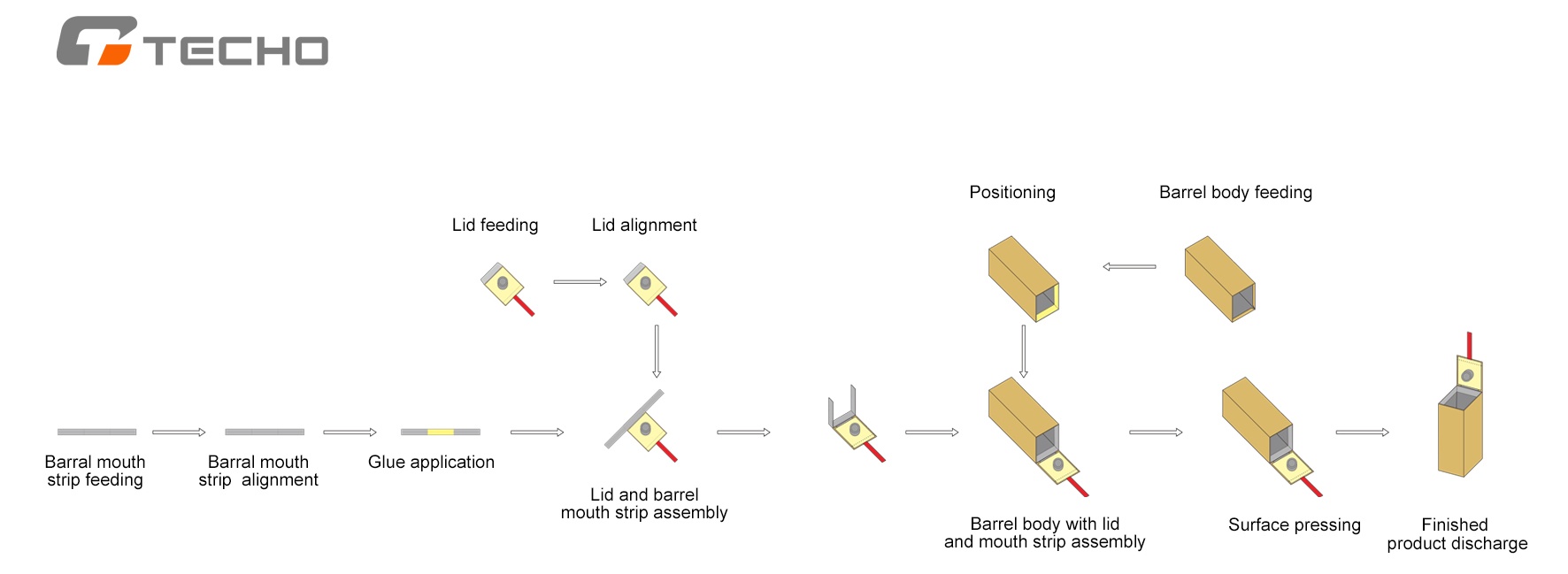

2.Automatic Operation: Fast and fully automatic feeding of barrel mouth strips and lids, enabling efficient assembly.
3.High Versatility: Supports both white glue and hot melt glue for simultaneous gluing operations.
4.High Productivity: Compact footprint, high production efficiency, precise positioning, and high yield rate.
5.Good Adaptability: Can be integrated with barrel forming lines for coordinated production.
6.Easy Changeover: Simple operation and rapid model change for different product sizes.
| Item | Specification |
|---|---|
| Applicable Products | Barrels, mouth strips, lids |
| Finished Product Size | Length: 220–350 mm Width: 83–130 mm Height: 83–130 mm |
| Capacity | 25–30 pcs/min |
| Power Supply | AC 380V ±10% |
| Air Pressure Requirement | 0.6–0.8 MPa |
| Machine Dimensions (L × W × H) | 2680 × 2458 × 2100 mm |
| Machine Weight | 1500 kg |
