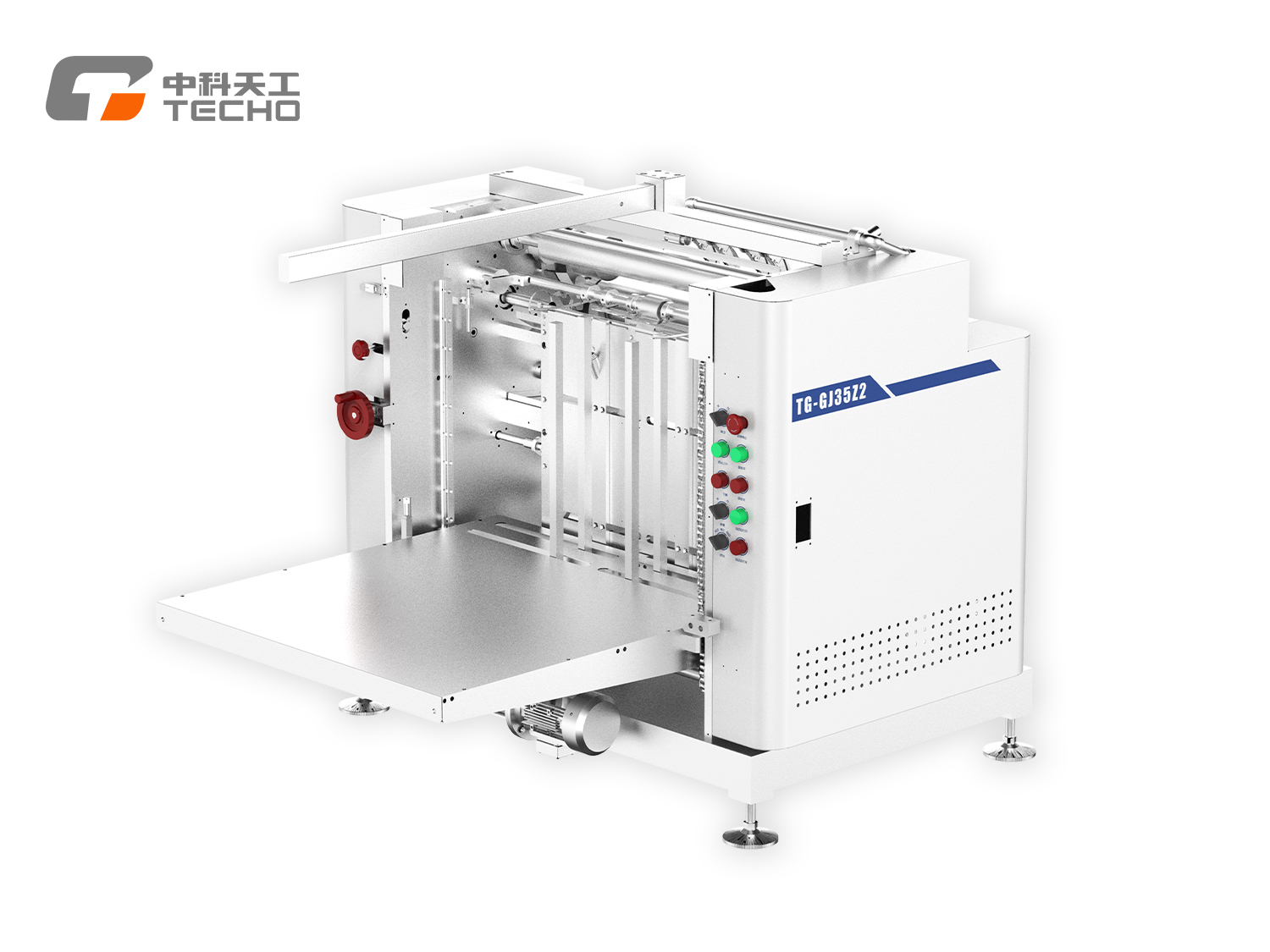

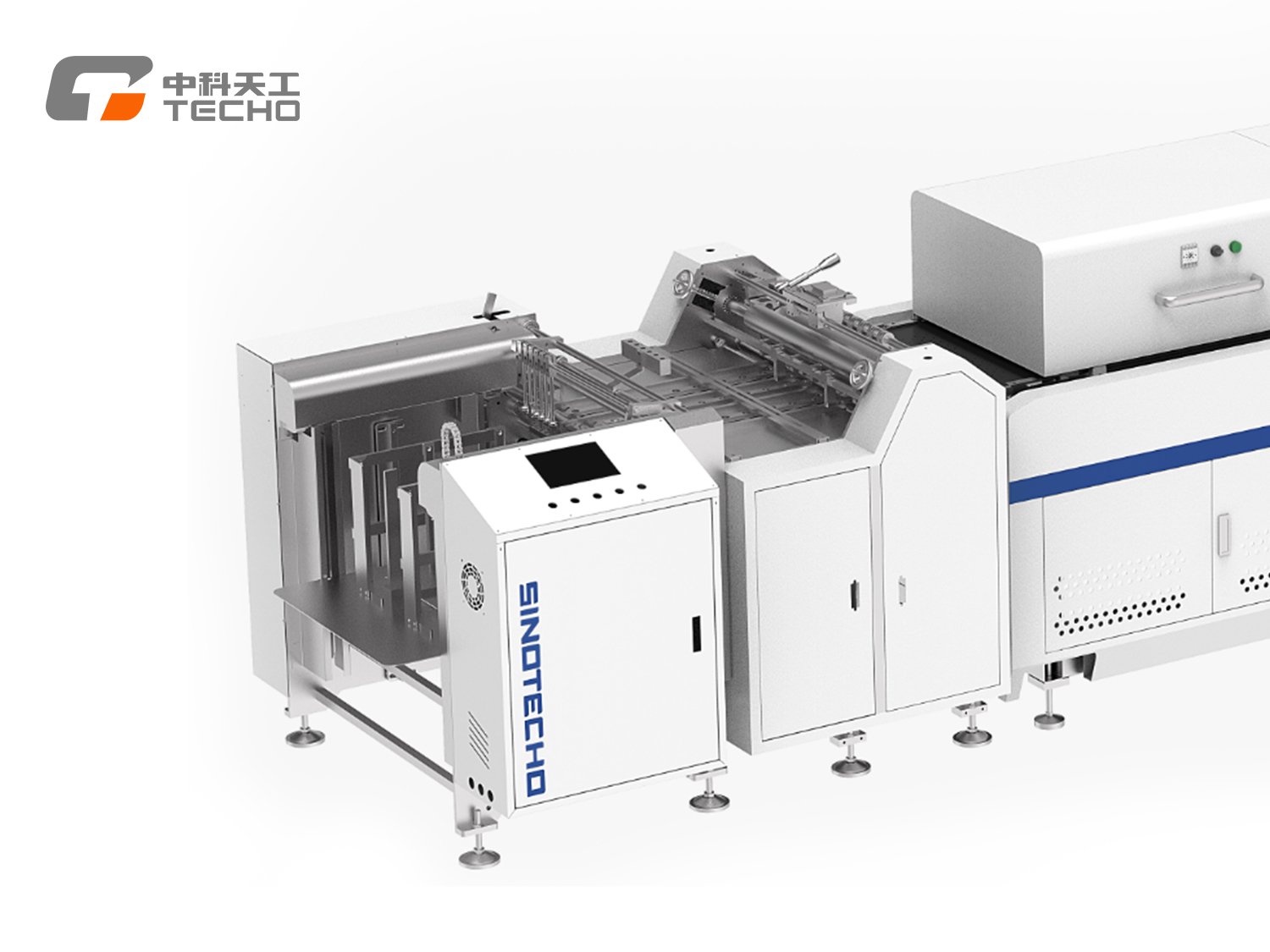

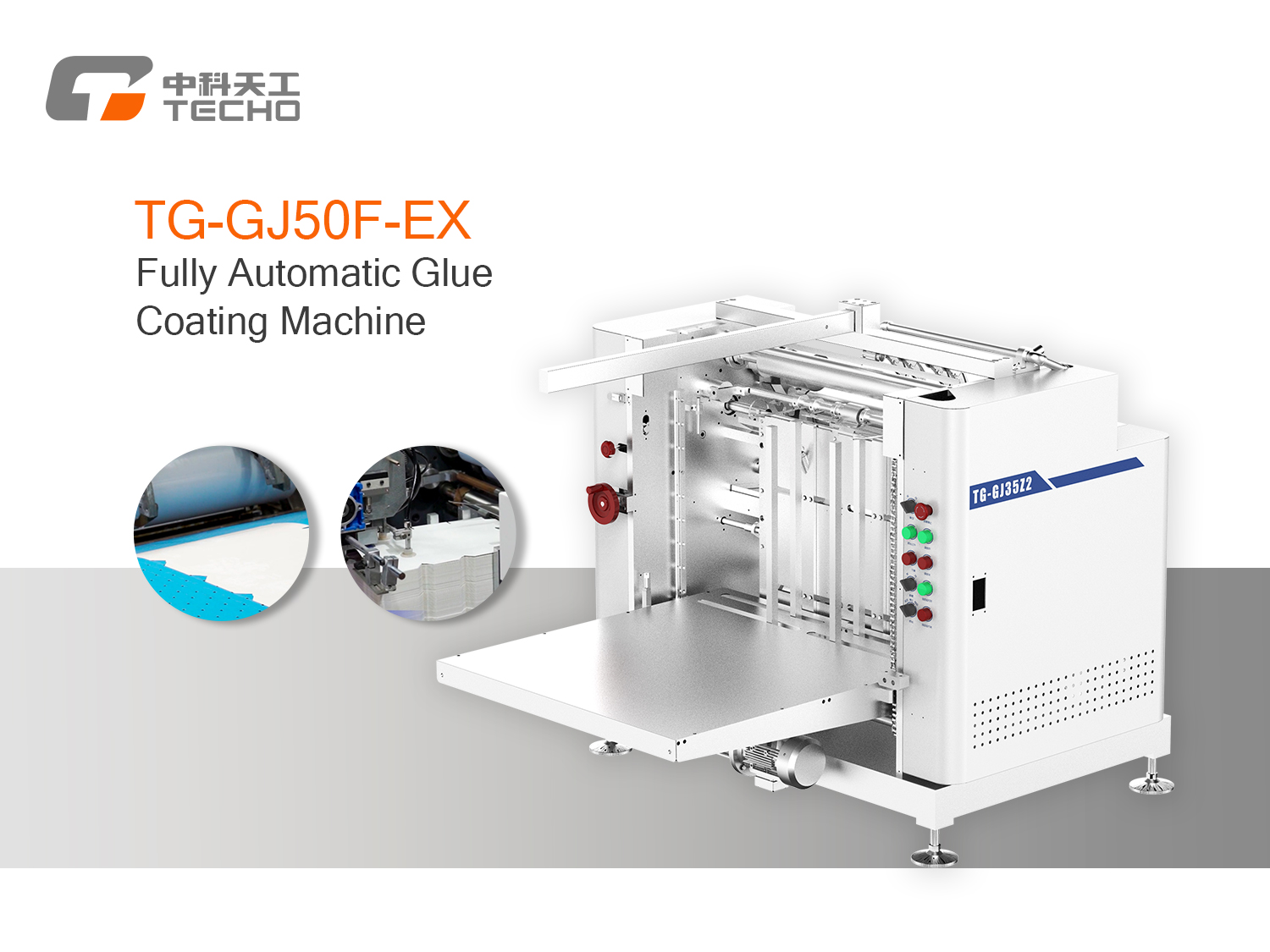

The TG-GJ50F-EX Fully Automatic Gluing Machine is designed for precise and efficient coating of paper materials such as surface paper and cardboard. It features automatic feeding and continuous gluing with a rubber roller coating system, ensuring smooth and uniform adhesive application. The machine adopts a simple yet stable structure, providing easy operation and low maintenance. With compatibility for a wide range of paper sizes and thicknesses, it supports both white glue and hot-melt glue modes, meeting diverse process requirements in luxury packaging production. Ideal for high-end boxes such as wine boxes, gift boxes, and cosmetic packaging, the TG-GJ50F-EX delivers high productivity, precise alignment, and consistent coating quality.
1.Wide size compatibility — suitable for various box types and dimensions.
2.Dual glue system (white glue & hot-melt glue) — flexible for different production needs.
3.Automatic surface paper gluing with ultrasonic double-sheet detection.
4.New feeder system for stable and continuous paper feeding.
5.Optional cold/hot glue customization for process adaptability.
| Item | Specification |
|---|---|
| Applicable Paper Sizes | Min: 130 × 230 mm Max: 570 × 1030 mm 100–300 g/m² |
| Positioning Accuracy | ±0.1 mm |
| Gray Board Thickness | 1–3 mm |
| Production Capacity | ≤38 pcs/h |
| Air Supply | 0.6–0.8 MPa |
| Power Supply | AC 380V ±10%, 25 kW |
| Product Weight | 600 KG |
| Product Dimensions (L × W × H) | 1600 × 1300 × 1500 mm |
1. Automatic adhesive application for face tissue
2. New feeder mechanism with ultrasonic double-sheet detection
3. Customizable hot/cold glue options
