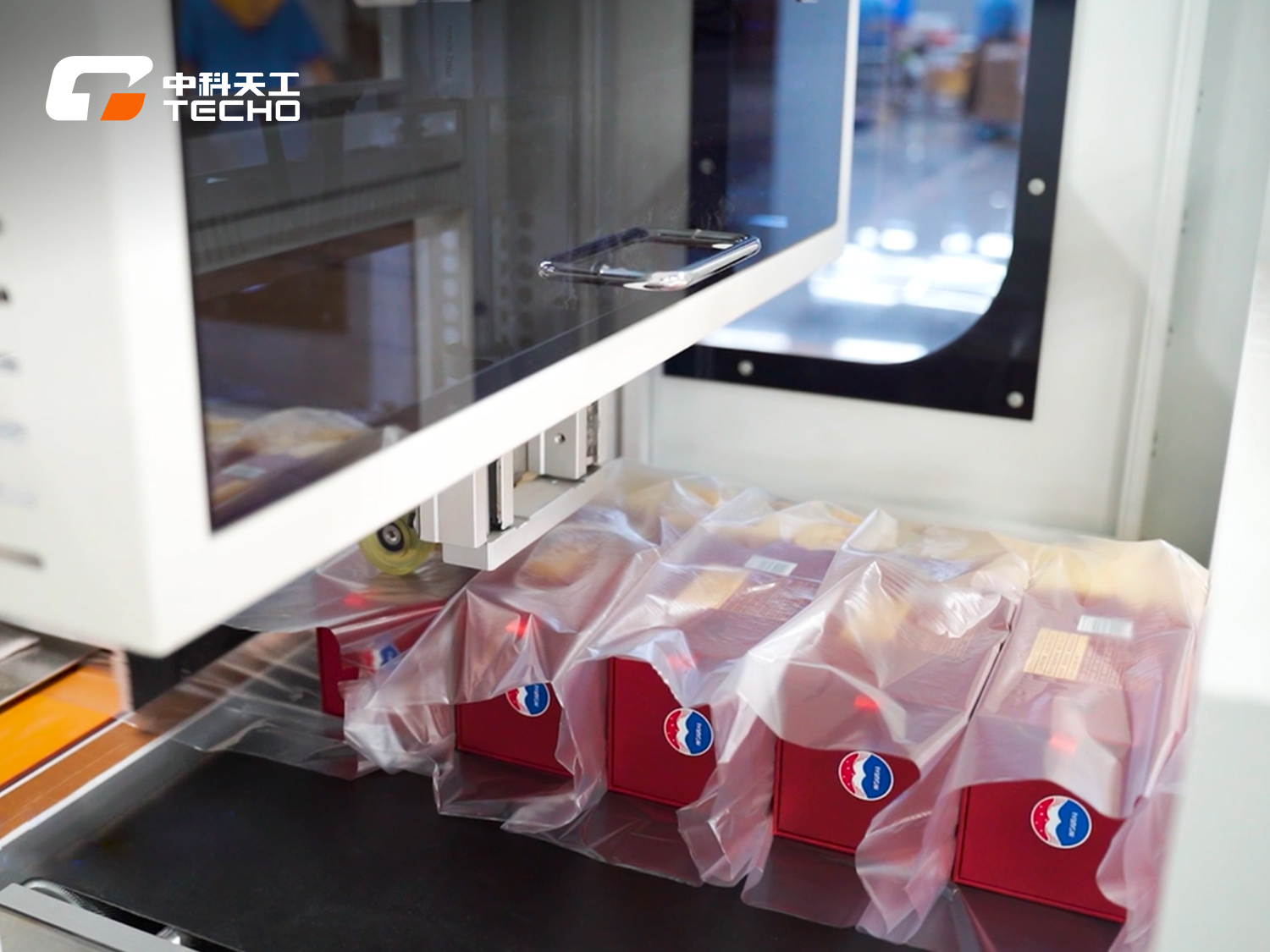

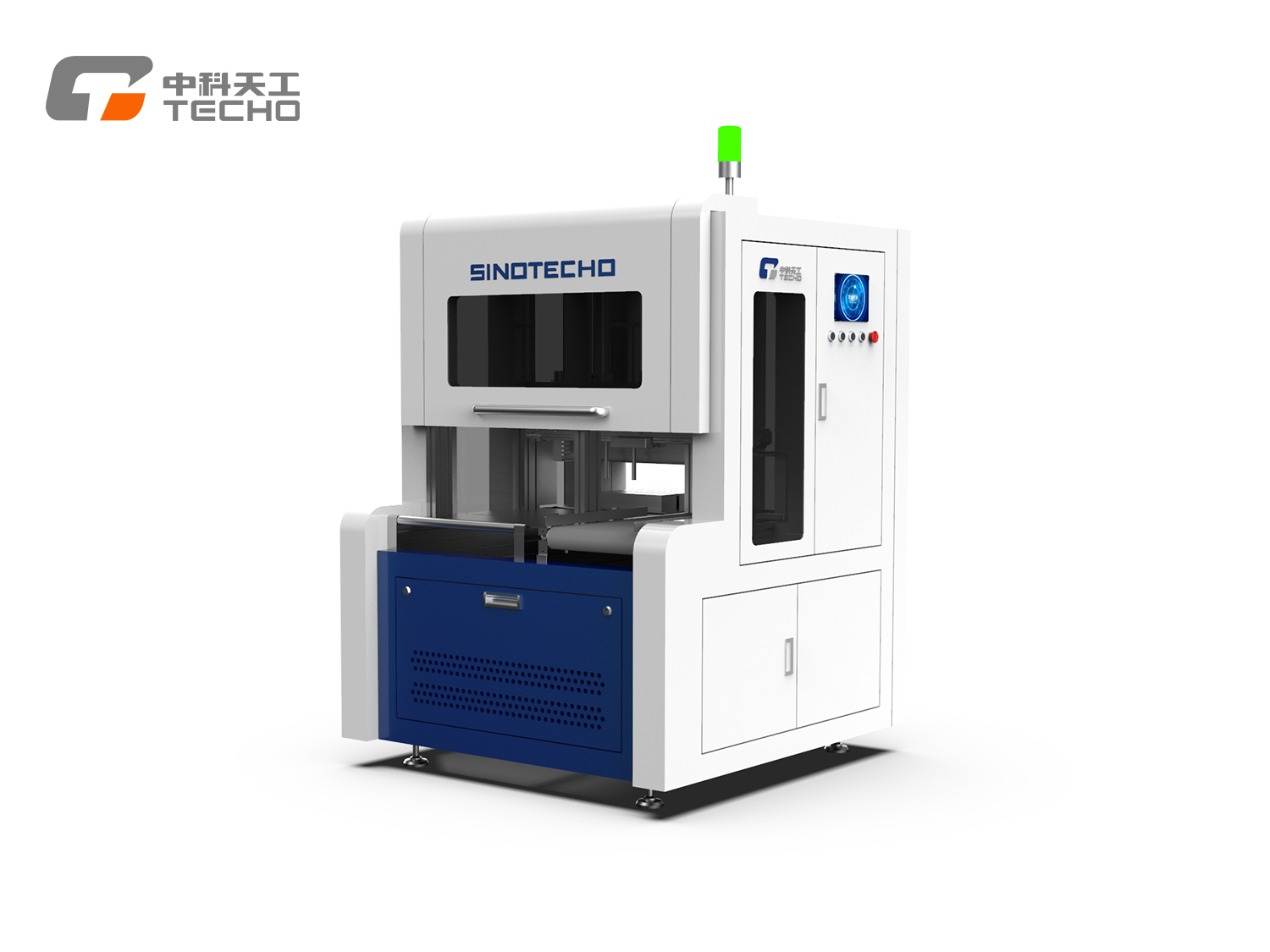

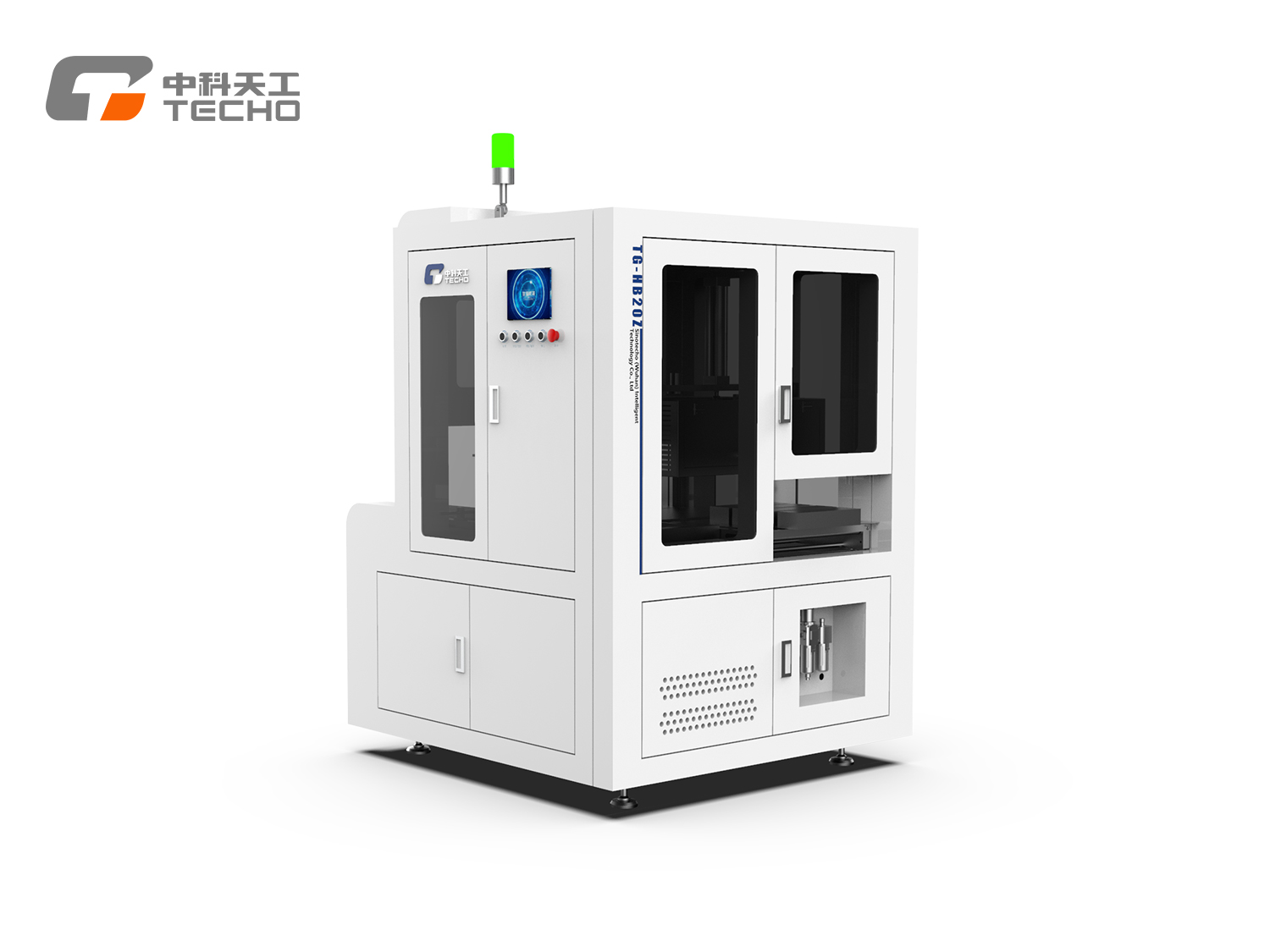

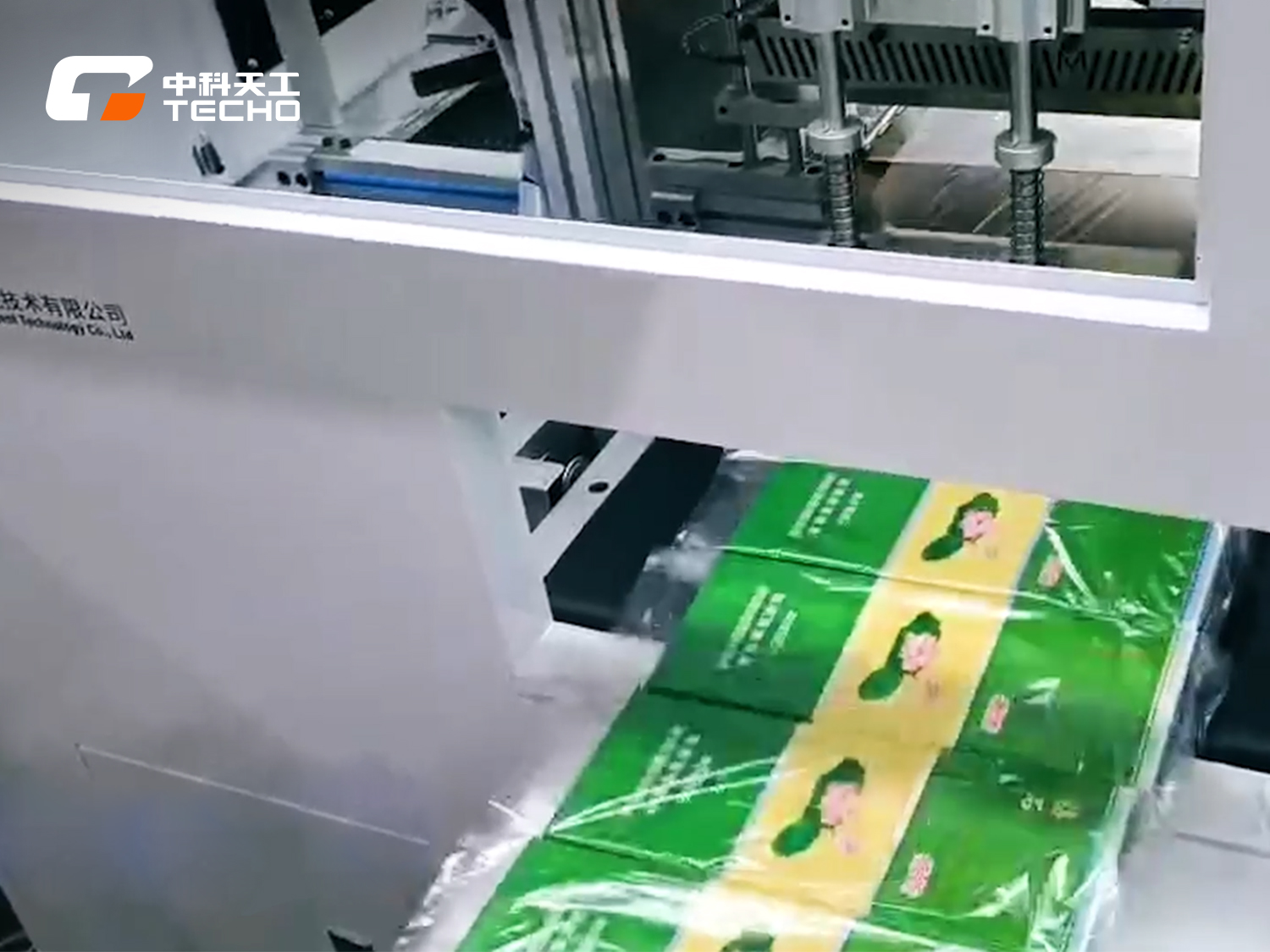

TG-BF60C-EX Intelligent Box Bag Insertion Machine is an automatic bagging machine suitable for cigarette packs, liquor boxes, tea boxes, mobile phone boxes, jewelry boxes, and other products of similar sizes. The machine can automatically bag products of different sizes, replacing traditional manual bagging and greatly improving operational efficiency.
1.High Compatibility: Suitable for various disc-shapes with a wide size range, meeting the requirements of different product specifications.
2.PLC Control with Touchscreen Operation: Equipped with PLC intelligent control and user-friendly touchscreen interface for easy operation.

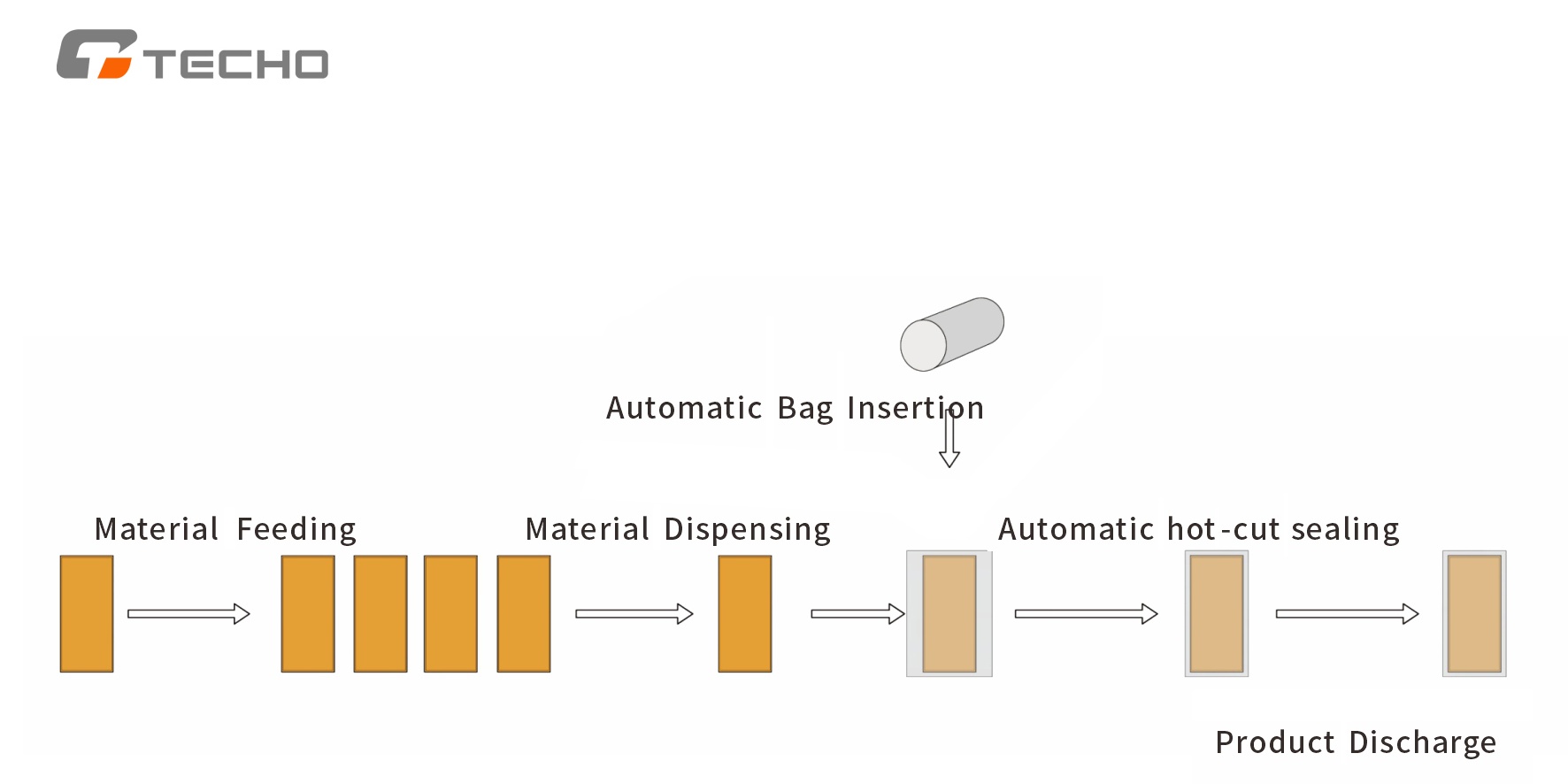

3.Automatic Material Dispensing: Prevents product damage or rejection caused by mis-triggered signals, ensuring stable production.
4.Full-Roll Film Cutting Mode: Reduces material costs and saves packaging consumables.
5.Automatic Hot-cut Sealing: Provides neat and aesthetically pleasing seals, enhancing packaging quality.
6. User-Friendly HMI: Easy to operate, with stable performance and high versatility; allows customization of display and process flow according to on-site requirements, integrating ergonomic and industrial design principles for convenient operation
and visually appealing design.
| Item | Specification |
|---|---|
| Max Bagged Product Size | L 340 × W 200 × H 100 mm |
| Min Bagged Product Size | L 100 × W 50 × H 15 mm |
| Film Reel Size | W 420 mm × Ø 350 mm |
| Drive System | Mainly servo motor & stepper motor |
| Air Pressure | 5–8 kgf/cm² |
| Voltage | 220 V |
| Power | 1800 W |
| Production Speed | Up to 24 pcs/min |
| Machine Dimensions (L × W × H) | L 1150 × W 1050 × H 1600 mm |
| Machine Weight | 450 kg |
1.Automatic material dispensing function to prevent product damage or rejection caused by mis-triggered signals.
2.Quick changeover for different product sizes.
 |
| TG-BF60C-EX |
