1.Designed for high productivity, low noise, and refined appearance.
2.Compact and lightweight — ideal for upper-floor installation.
3.Driven by intelligent control for precise and efficient automated feeding, die-cutting, and delivering.
All standard components of the equipment are sourced from internationally renowned brands or top domestic brands, as follows:
a. Pneumatic components: Airtac
b. Electric components: Panasonic
c. Robotics/Manipulators: Yamaha
d. Optical positioning components: Cognex
e. Other standard components: internationally or domestically well-known brands

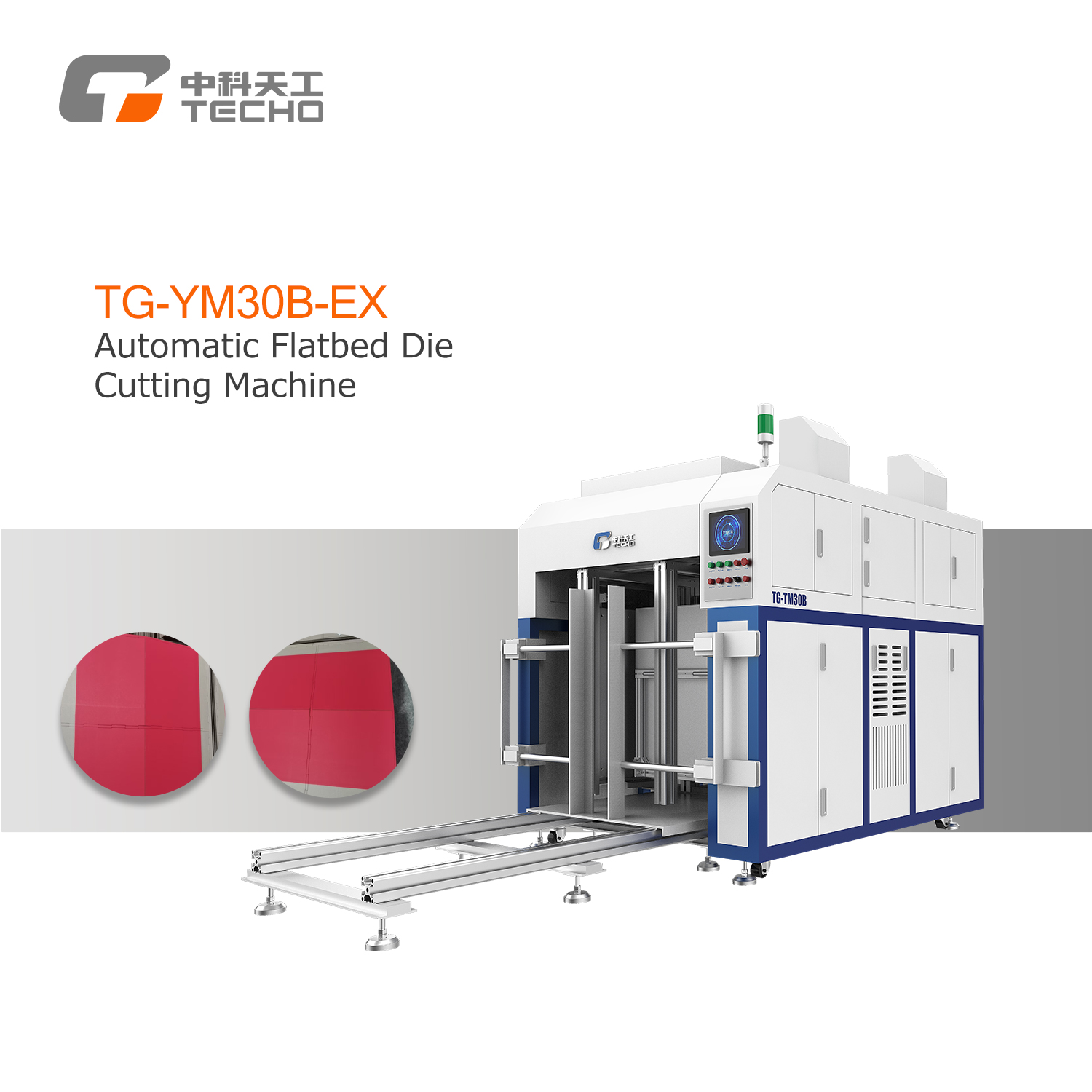

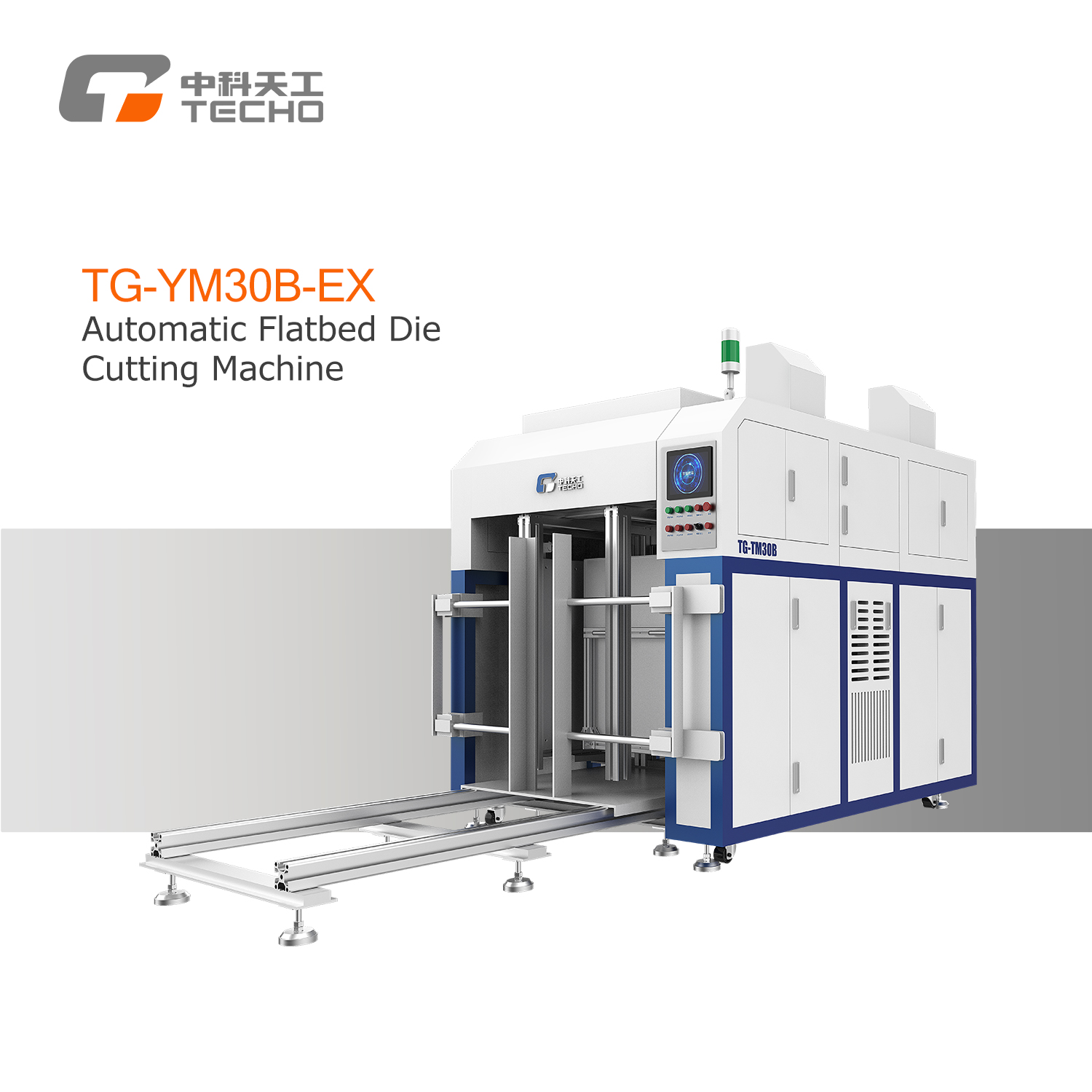

| ITEM | Automatic Flatbed Die Cutting Machine | Fully Automatic Vision-guided Compact Die Cutting Machine |
| Model | TG-YM30B-EX | TG-YM30A-EX |
| Applicable Materials | Grey board, white card board | Grey board、white card board、Surface paper |
| Feeding Method | Automatic pallet feeding | Automatic pallet feeding |
| Delivery Method | Automatic collection with pallet stacking | Automatic collection with pallet stacking |
| Max. Feeding Pile Height | 1280 mm | 1100mm |
| Max. Delivery Pile Height | 1270 mm | 1000mm |
| Die Cutting Method | Flatbed, Automatic die cutting | Flatbed, Automatic die cutting |
| Positioning Method | Mechanical positioning | Vision-guided |
| Max. Sheet Size | 900 × 640 mm | 900 × 650 mm |
| Min. Sheet Size | 250 × 400 mm | 600 × 400 mm |
| Break point | None | None |
| Yield | ≥99.9% | ≥99.9% |
| Min. Gripper Margin | 10 mm | 10mm-12mm |
| Applicable Thickness |
300–2200 g/m² (1–3mm) |
157–2200 g/m² (0.15–2mm) |
| Max. Die Cutting Size | 890 × 590 mm | 900 × 650 mm |
| Max. Die Cutting Pressure | 125Tons | 80Tons |
| Production Speed |
25–30 pcs/min (depending on material) |
18–20 pcs/min (depending on material) |
| Noise Level | ≤85dB | ≤90dB |
| Total Power | ≤10 kW | ≤10 kW |
| Voltage |
AC 220V/380V (to be specified when ordering) |
AC 220V/380V (to be specified when ordering) |
| Machine Weight | ≤4.5 Tons | ≤4.5 Tons |
| Dimensions | 3300*1850*2400mm | 3500*1650*2300mm |
1.Vertical cutting blades for smooth edges.High-quality cutting with minimal burrs.
2.Automatic feeder,Eliminates manual sheet feeding；safe and efficient.
3.Pre-stacked paper feeding system.Full-pallet feeding doubles production efficiency.
4.Palletized unloading，Neatly stacks finished sheets, reducing labor.

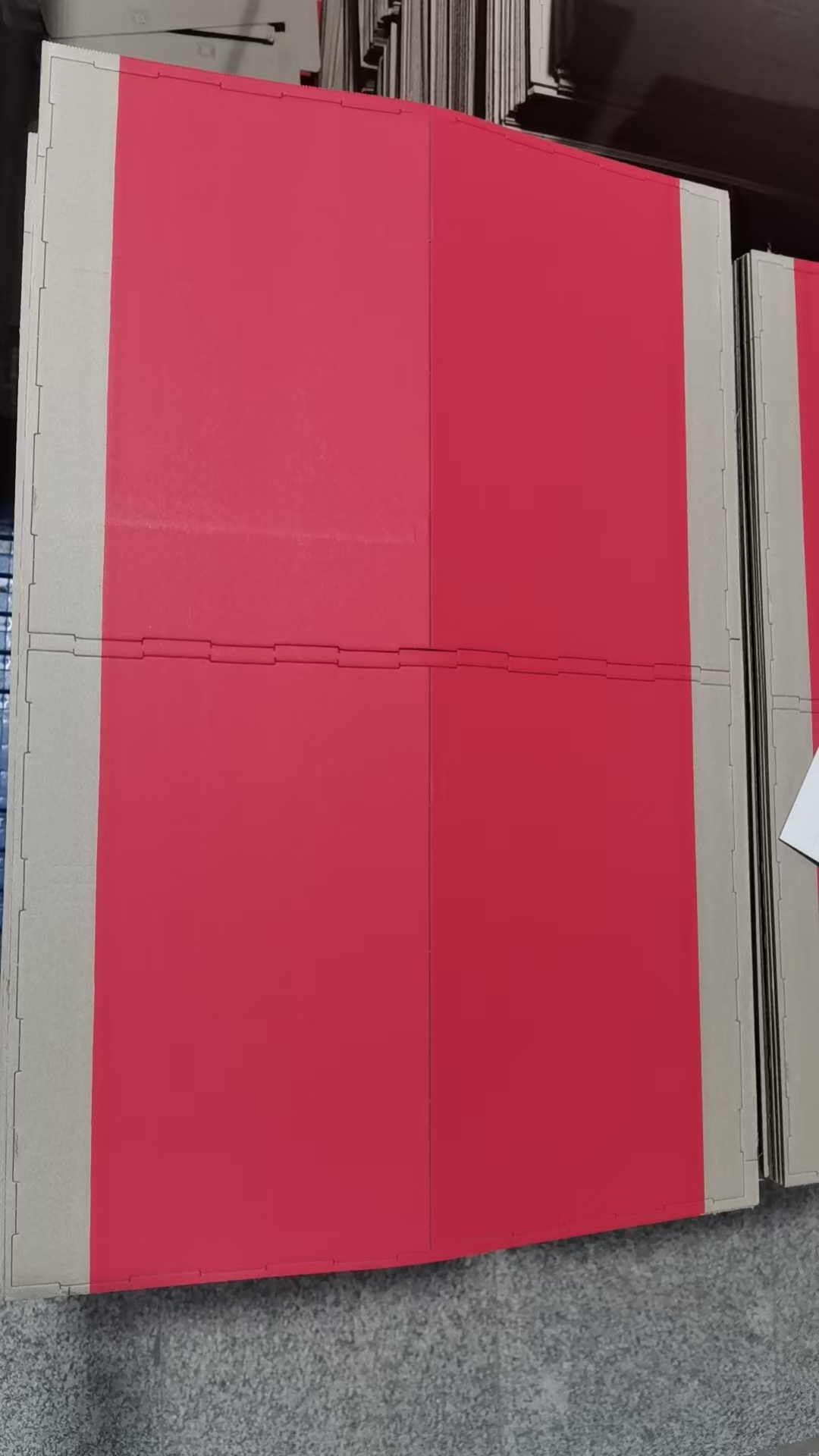

5.Seamless single-sheet cutting without break point. Ensures precise cuts and efficient waste removal.
6.One person can operate up to three machines, including feeding and unloading.
7.Self-locking cylinders enable die changes in 30 seconds.
