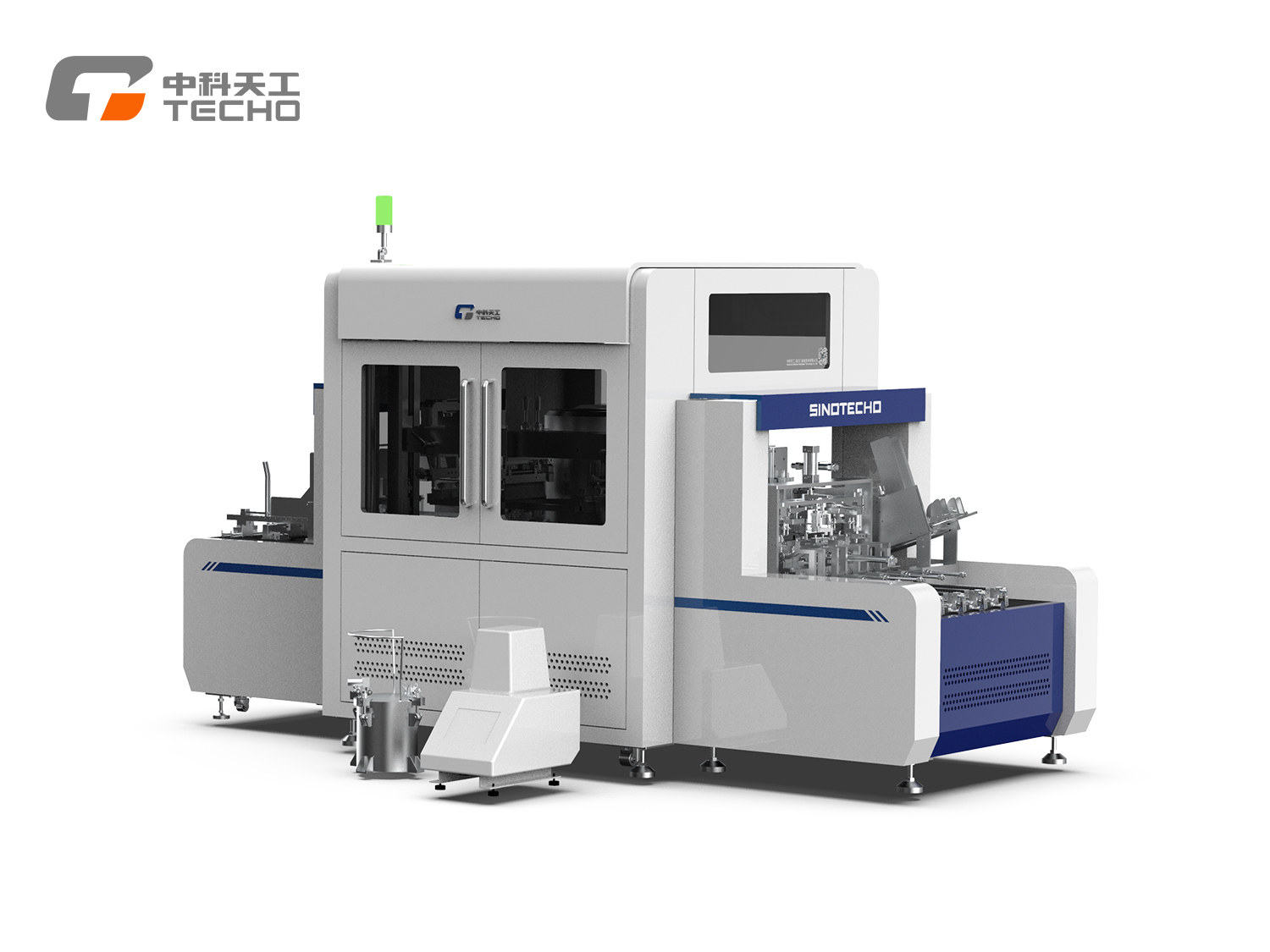

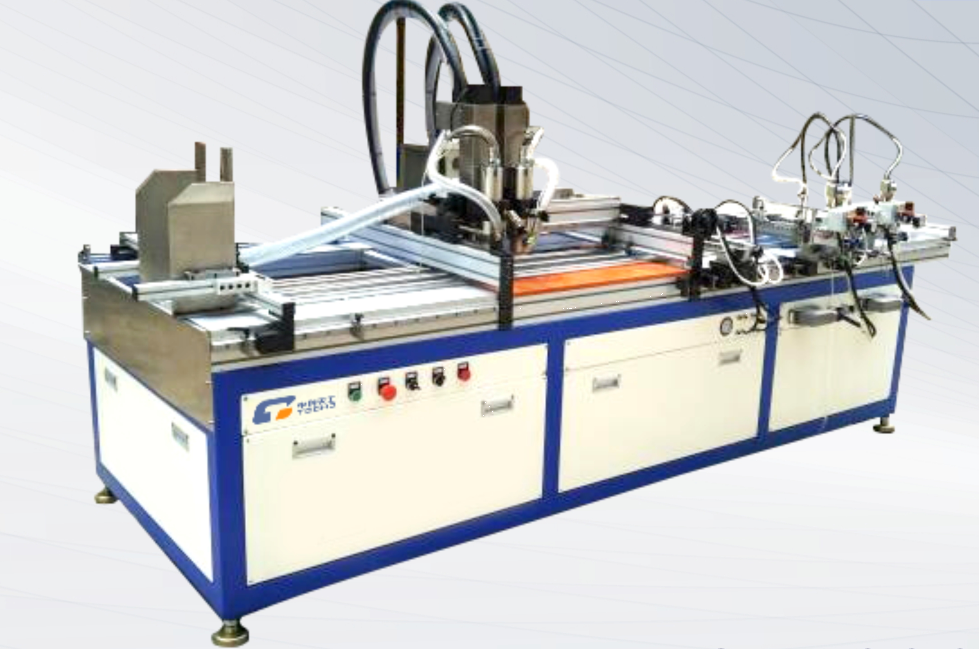

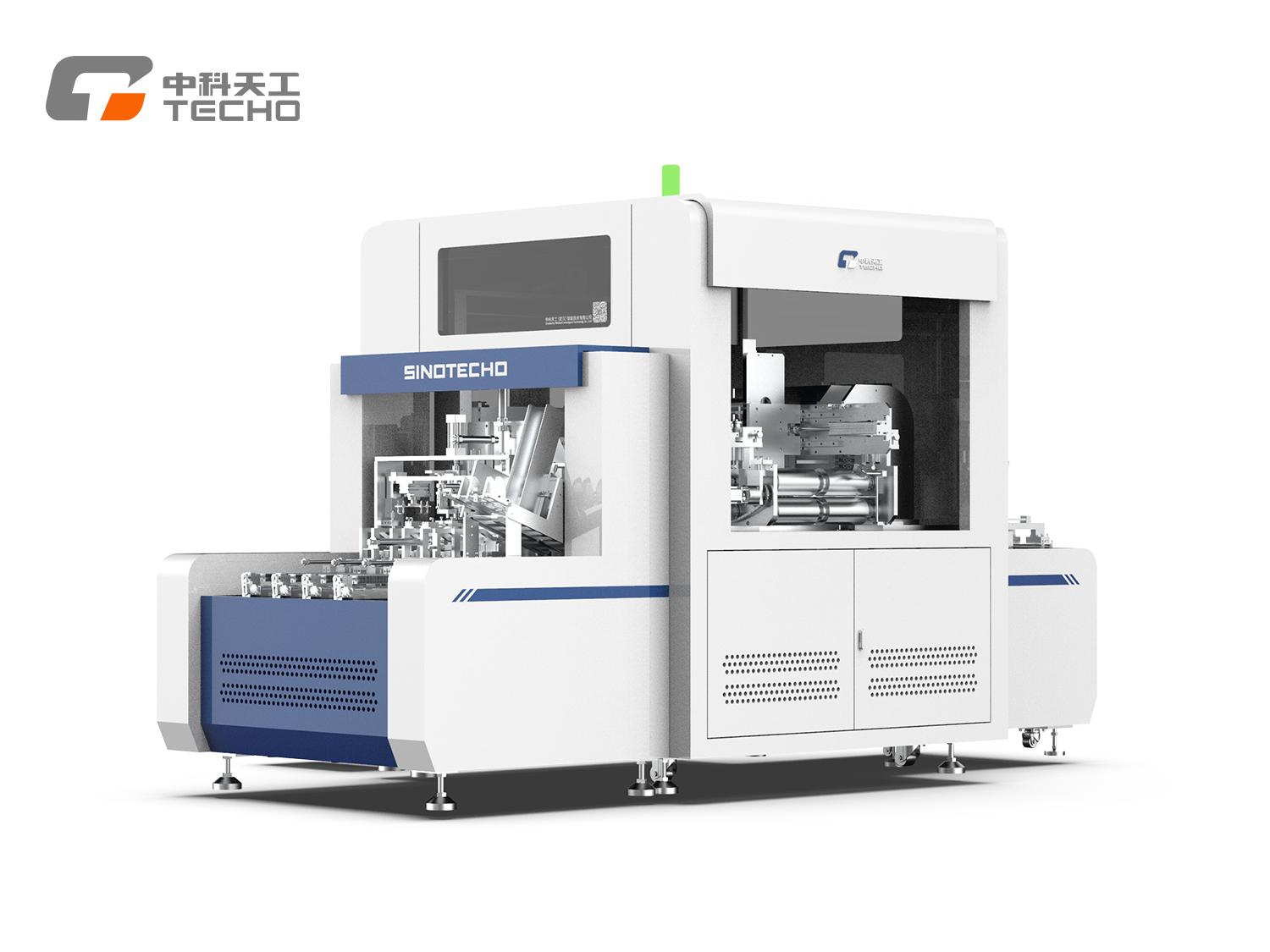

The TG-IS35C-EX is a specialized machine designed for high-end cigarette and liquor box cover production lines. It automates grey board feeding, inline drilling, gluing, and metal sheet (or magnet) pasting in a single process. With multiple patents applied, this machine is protected by a comprehensive intellectual property portfolio, ensuring innovation and reliability.

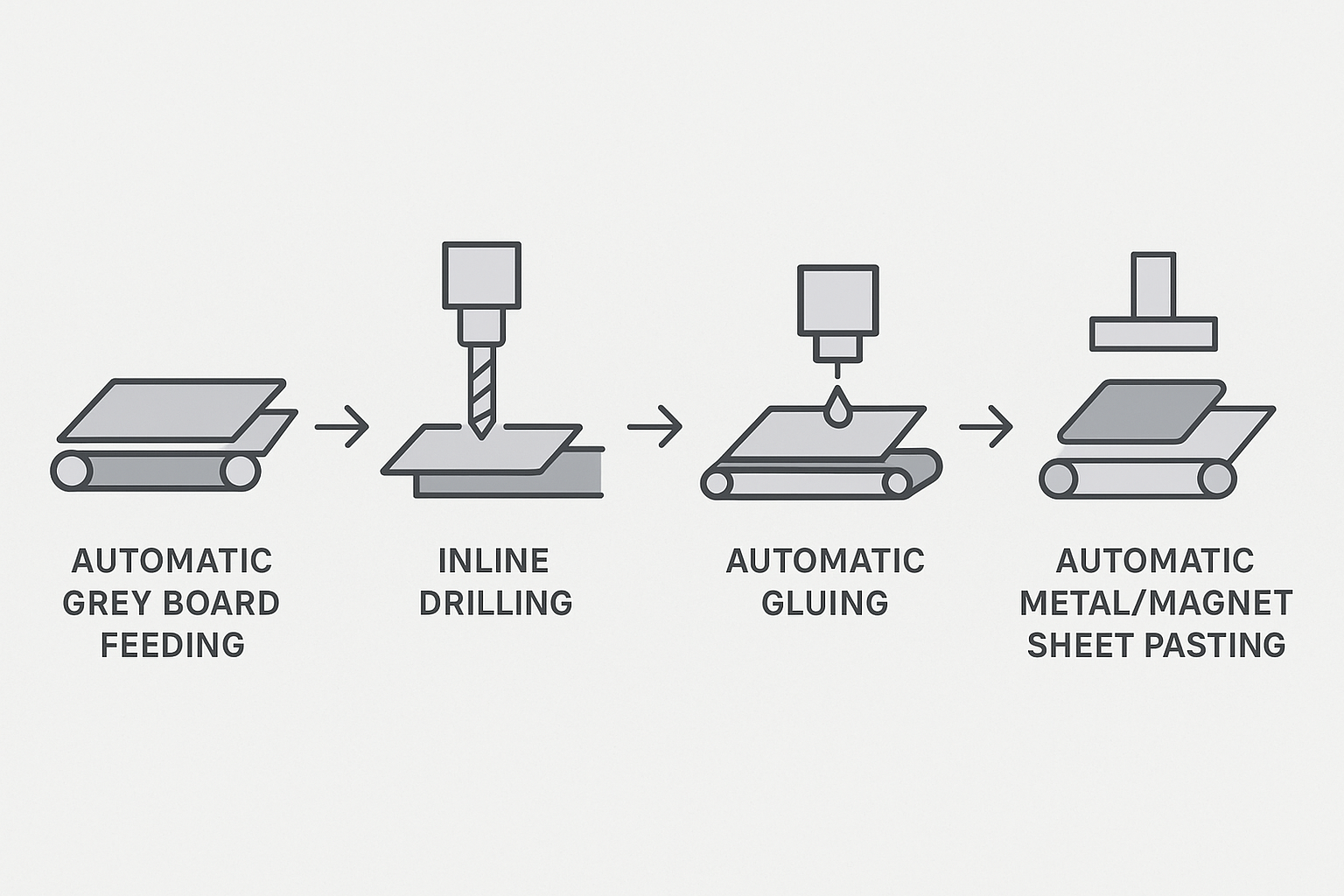

1.Complete process in one step: feeding, drilling, gluing, and sheet pasting.
2.Servo motor milling ensures high precision in hole depth and diameter.
3.Flexible mold changeover design allows broad applicability and easy scalability.
| Item | Specification |
|---|---|
| Applicable Products | Box Covers |
| Finished Product Size (mm) | L: 50–820 W: 15–75 H: 1–3 |
| Production Capacity | 2100–2700 pcs/h |
| Power Supply | AC 220V / 4 kW |
| Air Supply | 0.6–0.8 MPa / 0.12 m³/min |
| Machine Dimensions (mm) | 1300 × 1900 × 1600 |
| Machine Weight | 500 kg |
1.Flexible mold changeover design for strong scalability, compatible with a wide range of metal or magnet sheets.
2.Servo motor milling ensures high-precision control of hole depth and diameter on grey boards.
3.Compact footprint (1.3*1.9*1.6m)with excellent expandability, high production efficiency, and user-friendly operation.
