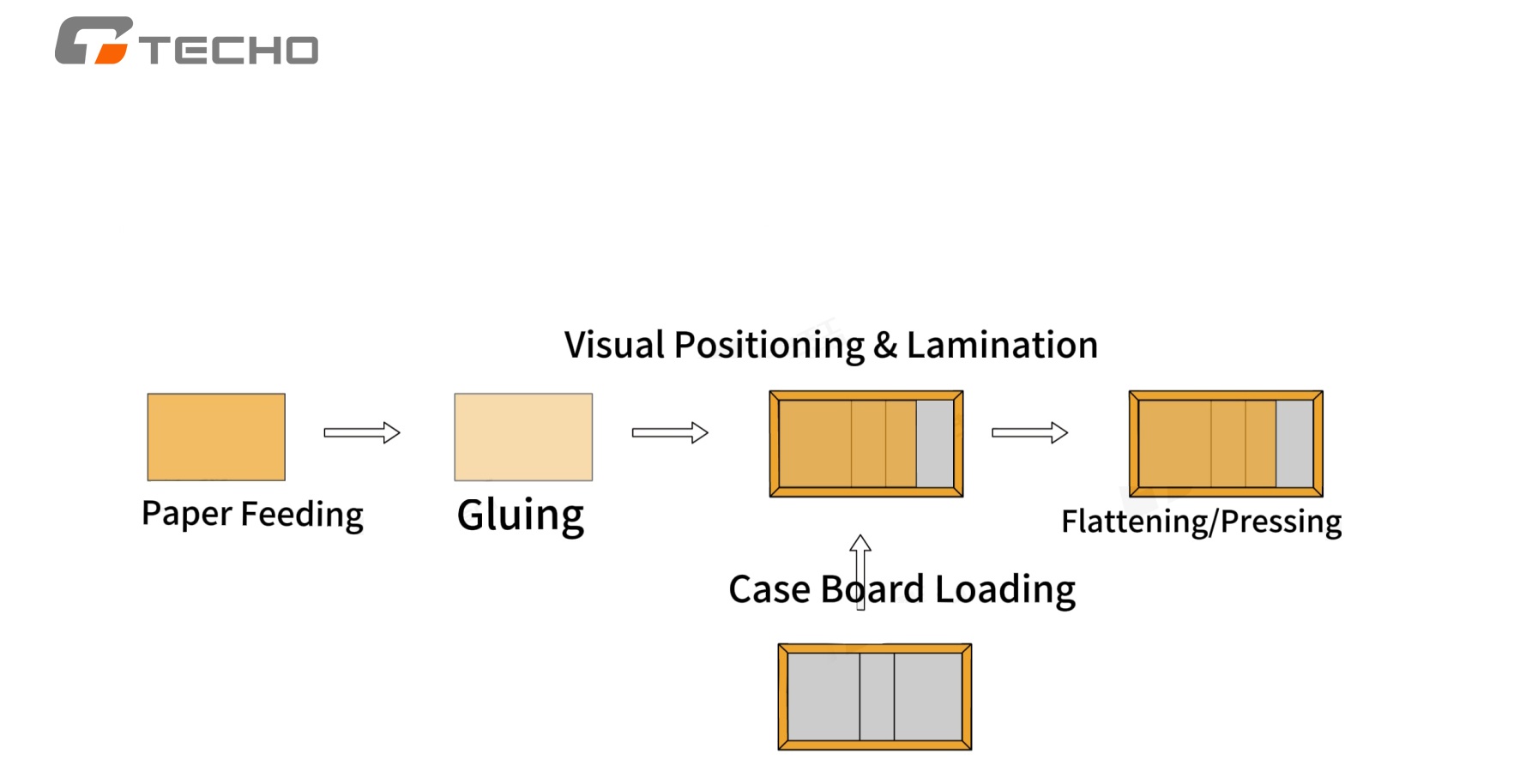

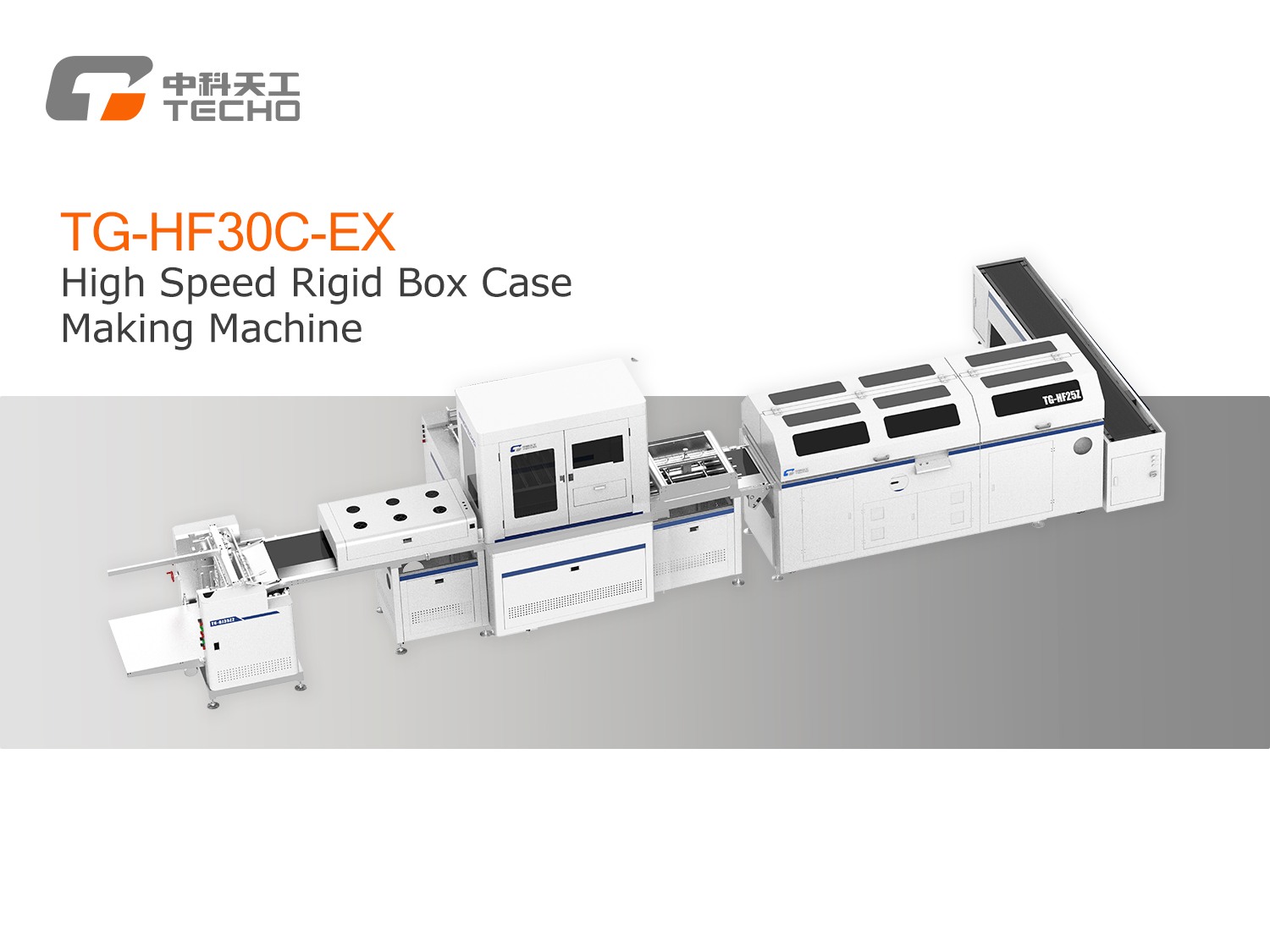

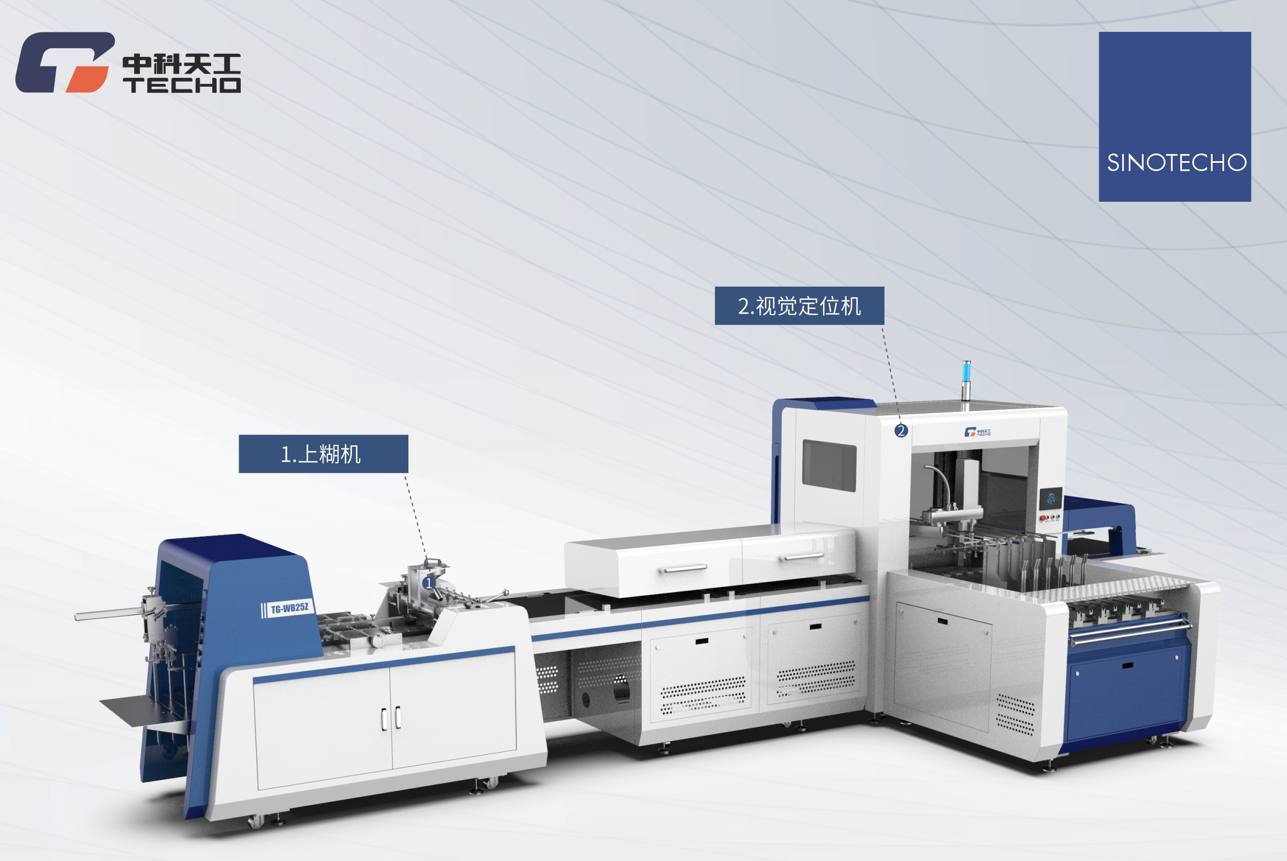

TG-HF30C High Speed Rigid Box Case Making Machine is a dedicated forming machine developed by SINOTECHO for premium cigarette and wine box production.The machine integrates full automation from paper feeding, gluing, and greyboard loading to visual positioning, bonding, and one-time forming of box covers.It features high productivity, exceptional positioning accuracy, and stable performance, ideal for luxury rigid box, book cover, and gift packaging manufacturing.Multiple patents have been granted for this model, ensuring strong intellectual property protection.
1.Automatic paper gluing, positioning, and edge wrapping in one continuous process.
2.Newly designed feeder system for easy operation and maintenance.
3.Equipped with ultrasonic double-sheet detection to ensure stable and reliable production.
1.Rear-suction feeder design – simple structure, easy maintenance, and stable sheet feeding.
2.Ultrasonic double-sheet detection system – effectively prevents feeding errors and enhances reliability.
3.Exclusive irregular edge-wrapping technology – solves complex forming challenges in the industry.
4.Intelligent vision positioning system combined with high-precision four-axis robot, achieving high accuracy and high efficiency in forming.
5.Optional bottom-suction plate feeding system to prevent surface scratching of finished products.
|
Technical Parameters |
Specification |
|
Finished Product Size |
Max: 450 × 800 mm |
|
Min: 100 × 180 mm |
|
|
Positioning Accuracy |
±0.1mm |
|
Efficiency |
Designed speed ≥ 1600 pcs/hour Actual production ≥ 1500 pcs/hour Single shift (11 hours): ≥ 15,000 pcs |
|
Yield Rate |
≥99% |
|
Paper Weight |
100-300g/㎡ |
|
Greyboard Thickness |
1-4mm |
|
Paper Feeding Capacity |
≥ 3000 pcs/time |
|
Operators Required |
2 persons |
|
Machine Dimension |
L12780 × W4340 × H1800 mm |
|
Power Supply |
AC 380V±10% 35KW |
|
Air Supply |
0.8mpa 2.2m³/min |
|
Noise Level |
≤83 db |
|
Dimensions |
11000*3500*1800mm |
|
Wight |
4500KG |
