Intelligent High-Speed Cover Paper Gluing and Positioning Machine

Intelligent High-Speed Cover Paper Gluing and Positioning Machine

TG-CY30C is an intelligent high-speed cover paper gluing and positioning machine specially developed for automatic paper feeding, gluing and visual robotic positioning.

Automated Gluing & Positioning

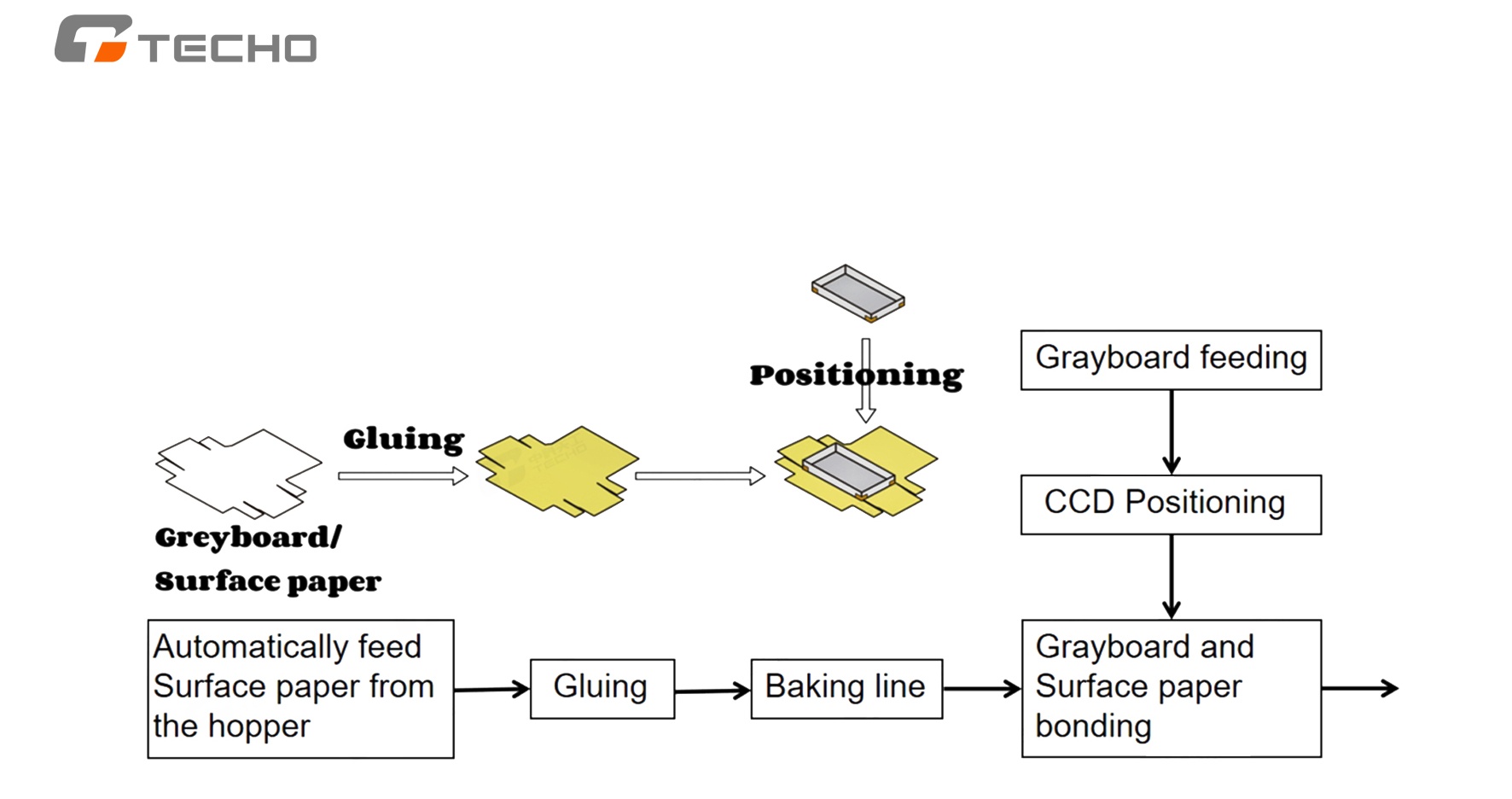

Realizes automatic feeding, gluing and vacuum suction feeding for cover paper of different sizes with visual robotic positioning for alignment.
High-Speed Versatile Operation
Accommodates cover paper of various sizes with high-speed processing capabilities.
Complete Patent Protection
Multiple patents applied with complete patent protection chain ensuring innovation security.

Brand:

Sinotecho

Spu:

TG-AP30A-EX

Introduction

The TG-CY30C Intelligent High-Speed Cover Paper Gluing and Positioning Machine is specially developed by Zhongke Tiangong for automatic paper feeding, gluing, and vacuum suction feeding of greyboard and cover paper, with visual robotic positioning for cover paper alignment.

The TG-CY30C Intelligent High-Speed Cover Paper Gluing and Positioning Machine can realize automatic feeding, gluing, and vacuum suction feeding functions for cover paper of different sizes. Our company has applied for multiple patents for this production line, with a complete patent protection chain.

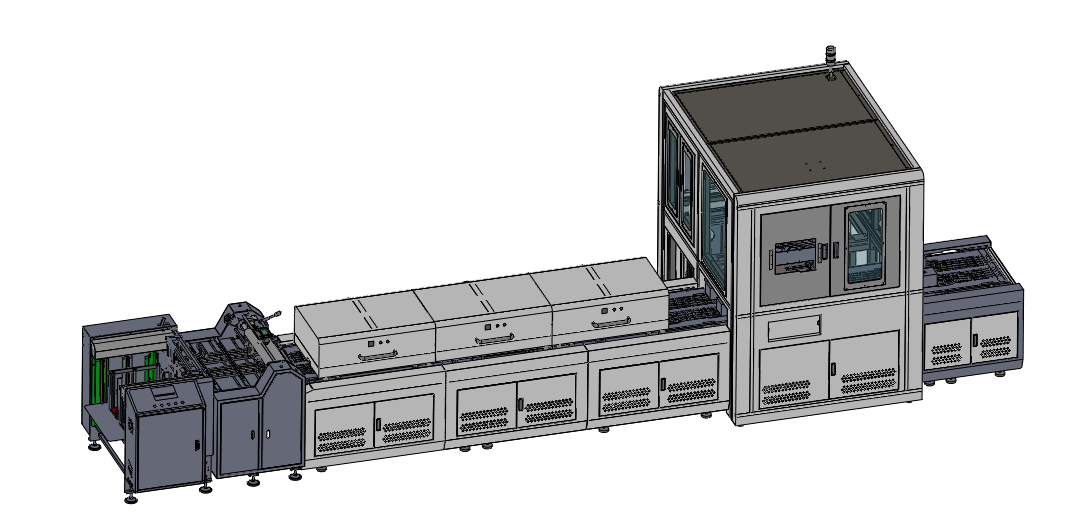

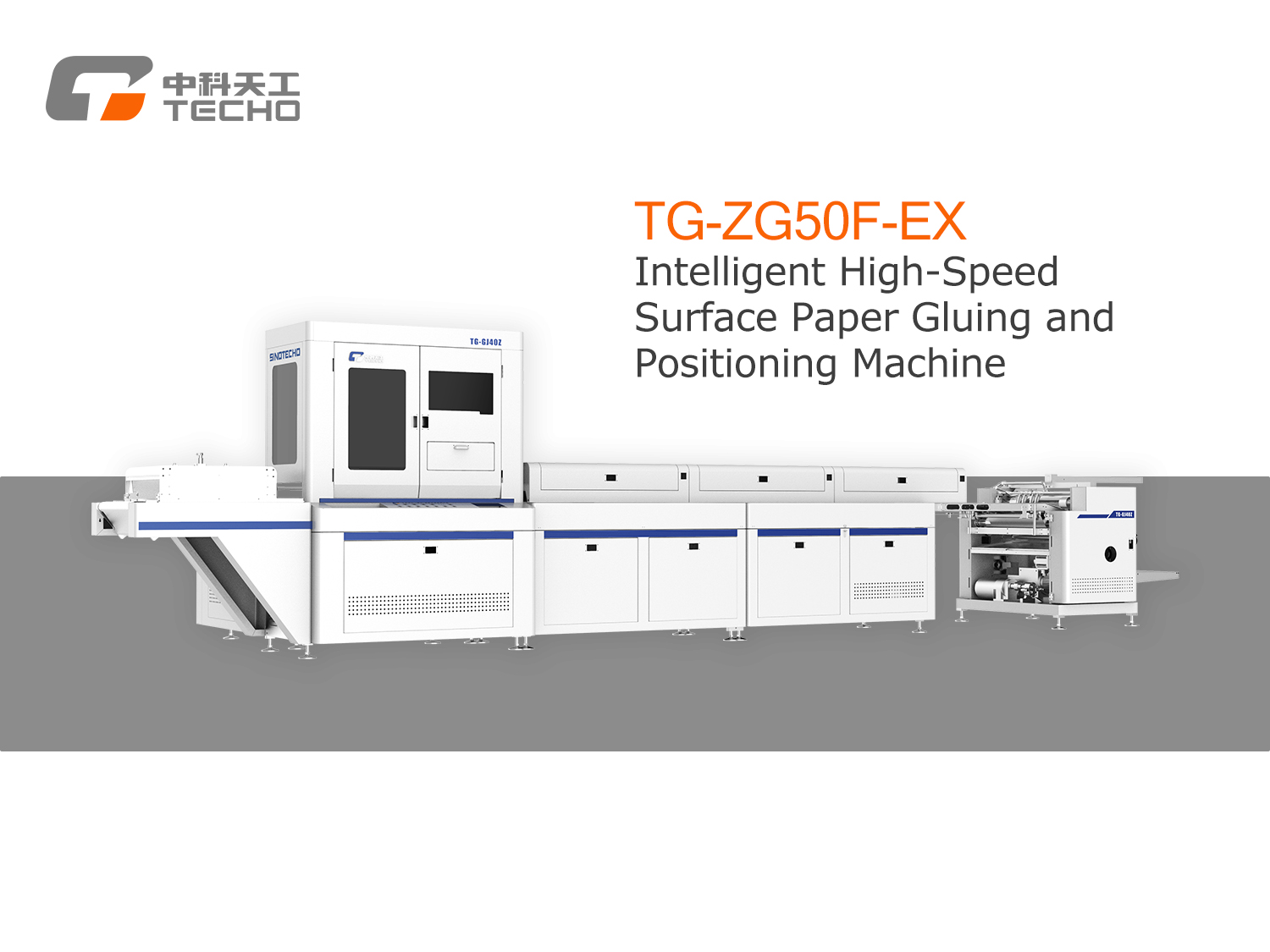

（新增）TG-ZG50F-EX智能过胶定位线.jpg TG-CY30C

Product Features

1.Strong Compatibility: Wide adaptability to cover paper types, suitable for precise positioning and mounting of greyboard and cover paper for various liquor packages, cigarette packages, and premium social packaging;

2.Flexible Positioning: The positioning machine can be freely adjusted to any position along the conveyor line; one conveyor line is compatible with 2 positioning machines;

3.CCD Positioning System: The positioning machine adopts CCD positioning technology, enabling precise lamination of greyboard and cover paper with positioning accuracy controlled within ±0.1 mm;

4.Dual Adhesive Compatibility: Compatible with both white glue and hot melt adhesive;

5.Glue-Saving Design: The gluing roller adopts an anilox roller, saving 40% adhesive compared to conventional smooth rollers;

Technical Parameters

Item	Specification
Board Size Range	Length: 100–560 mm Width: 100–370 mm Thickness: 0.5–3 mm
Positioning Accuracy	±0.1 mm
Production Speed	25–30 pcs/min
Equipment Power	4 kW
Equipment Voltage	380V ±10%
Air Supply Pressure	0.6–0.8 MPa
