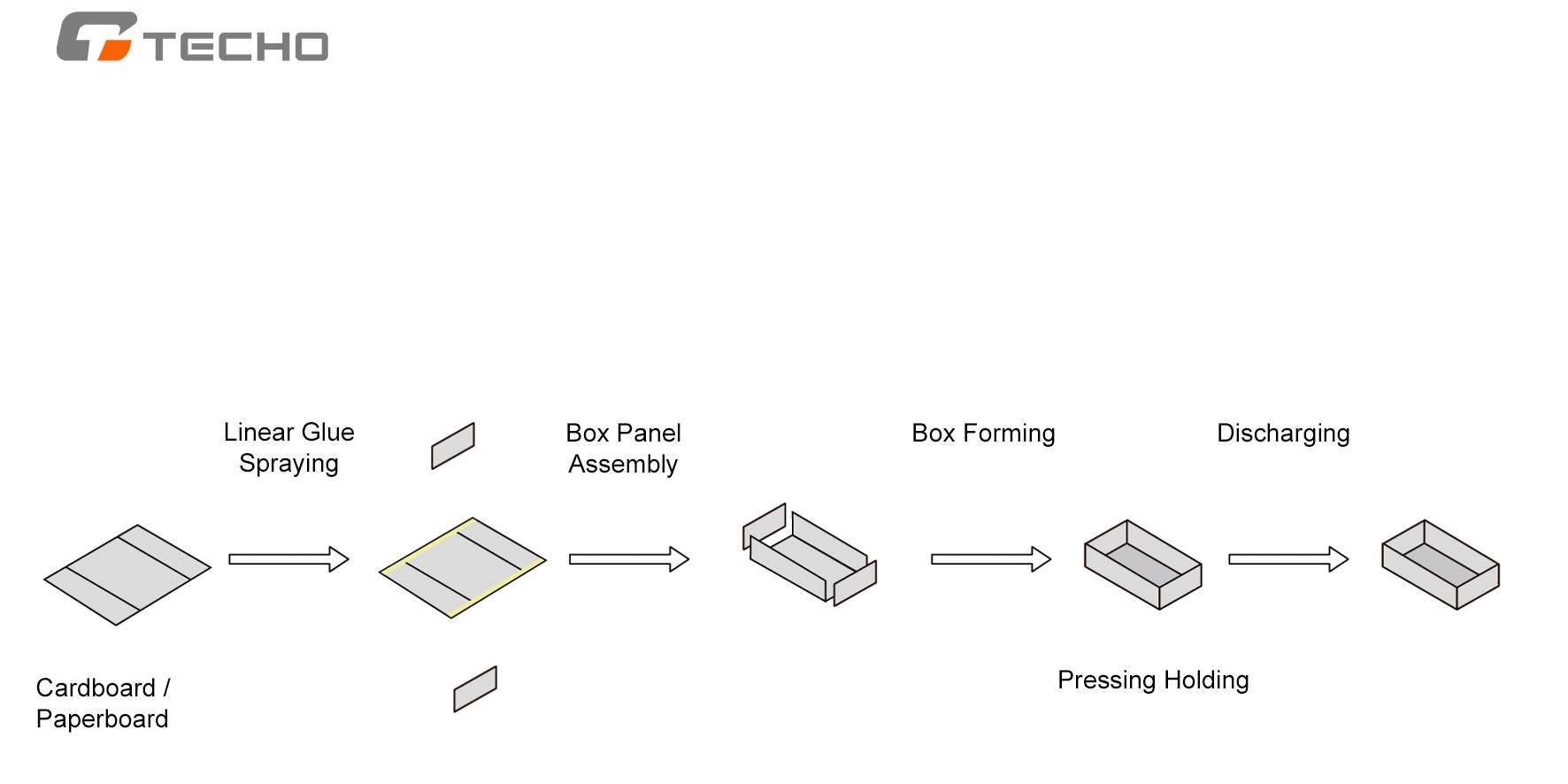

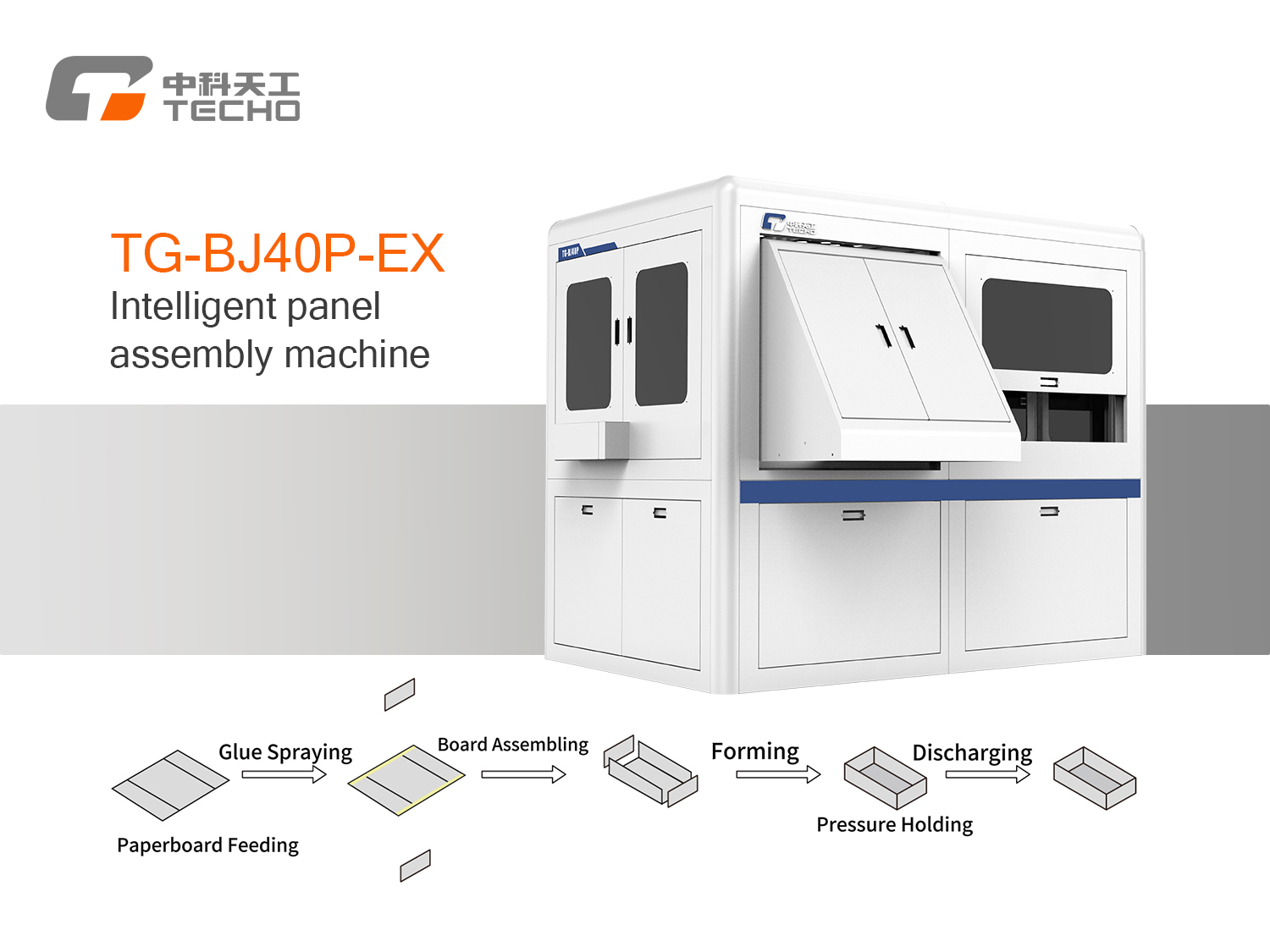

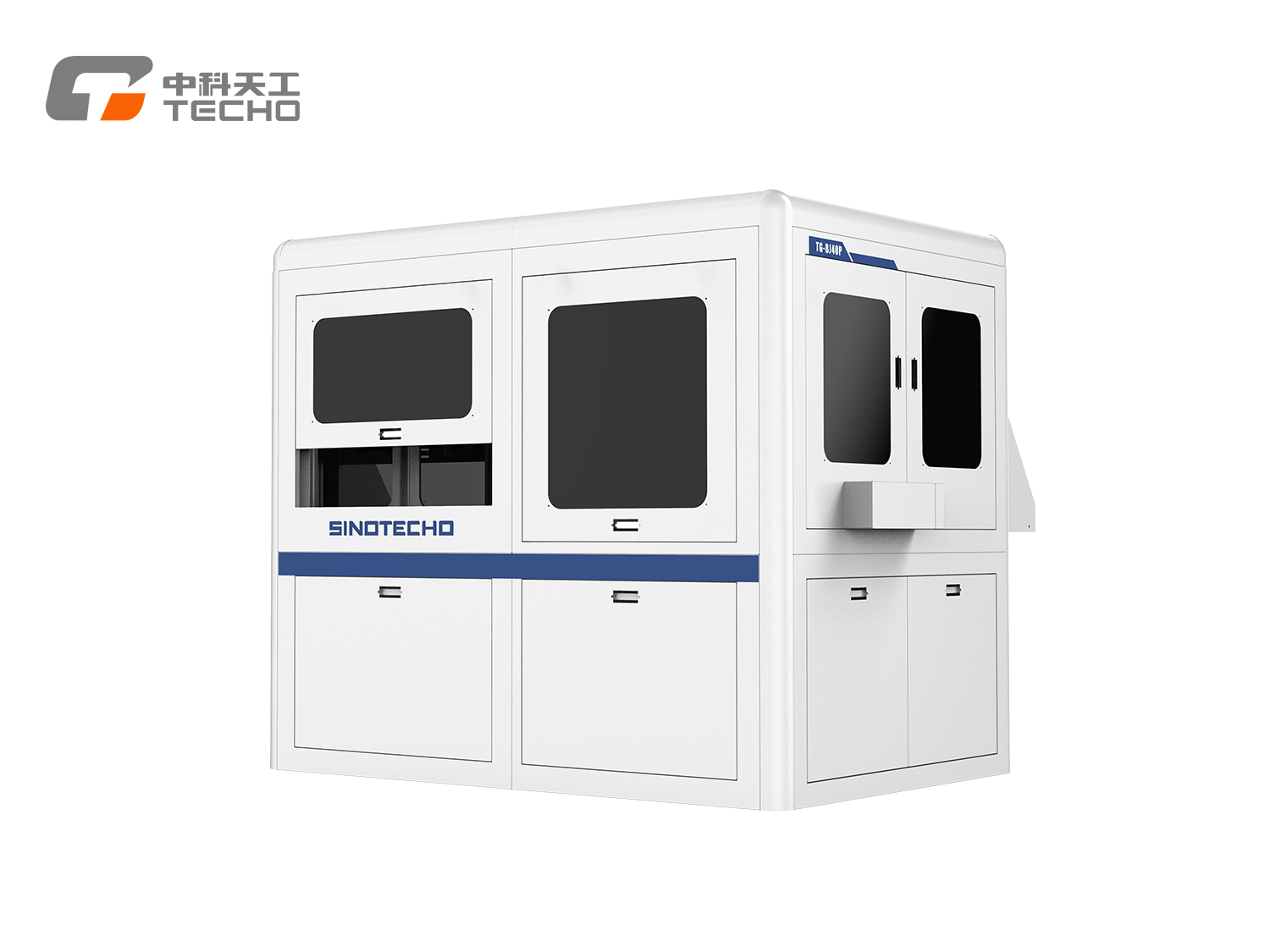

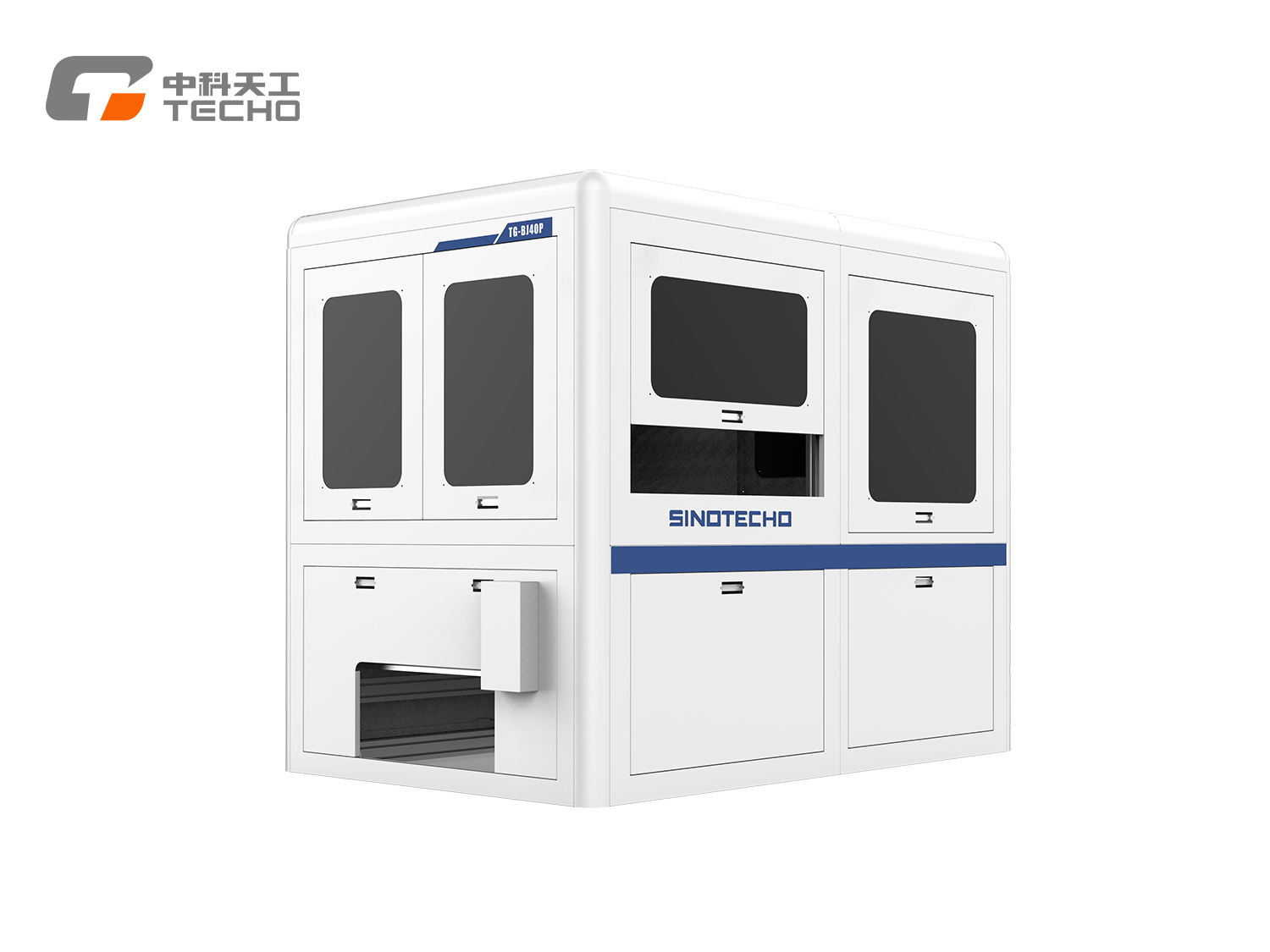

The TG BJ40P intelligent panel assembly machine is a dedicated equipment developed by our company for the forming of high-end premium liquor packaging boxes. It automates the feeding of grey-board (or chipboard), automatic glue application, board assembly and pressing/holding operations. The production line occupies minimal floor space, offers strong scalability, high output efficiency and high positioning accuracy, and features quick change-over between specifications. Our company has applied for multiple patents for this forming machine and holds a complete patent protection chain.
1.Automatic glue application and board joining: Stable glue path and precise glue quantity control.
2.Dual-use for grey-board and density/chip-board: Highly compatible with different board materials.
3.Continuous feeding without stopping: High production efficiency.
 |
| TG-BJ40P |
| Item | Specification |
|---|---|
| Finished Product Size Range | Min: 100 × 80 × 20 mm Max: 400 × 300 × 200 mm |
| Production Capacity | 20–25 pcs/min |
| Yield (Good Product Rate) | ≥ 98% |
| Voltage | 380V ±10% |
| Air Pressure | 0.6–0.8 MPa |
| Electrical Safety | Compliant with electrical safety requirements |
| Noise Level | ≤ 85 dB |
| Workshop Environment (Humidity) | 80–95% RH |
| Product Weight | 800 KG |
| Product Dimensions (L × W × H) | 2500 × 1650 × 1800 mm |
