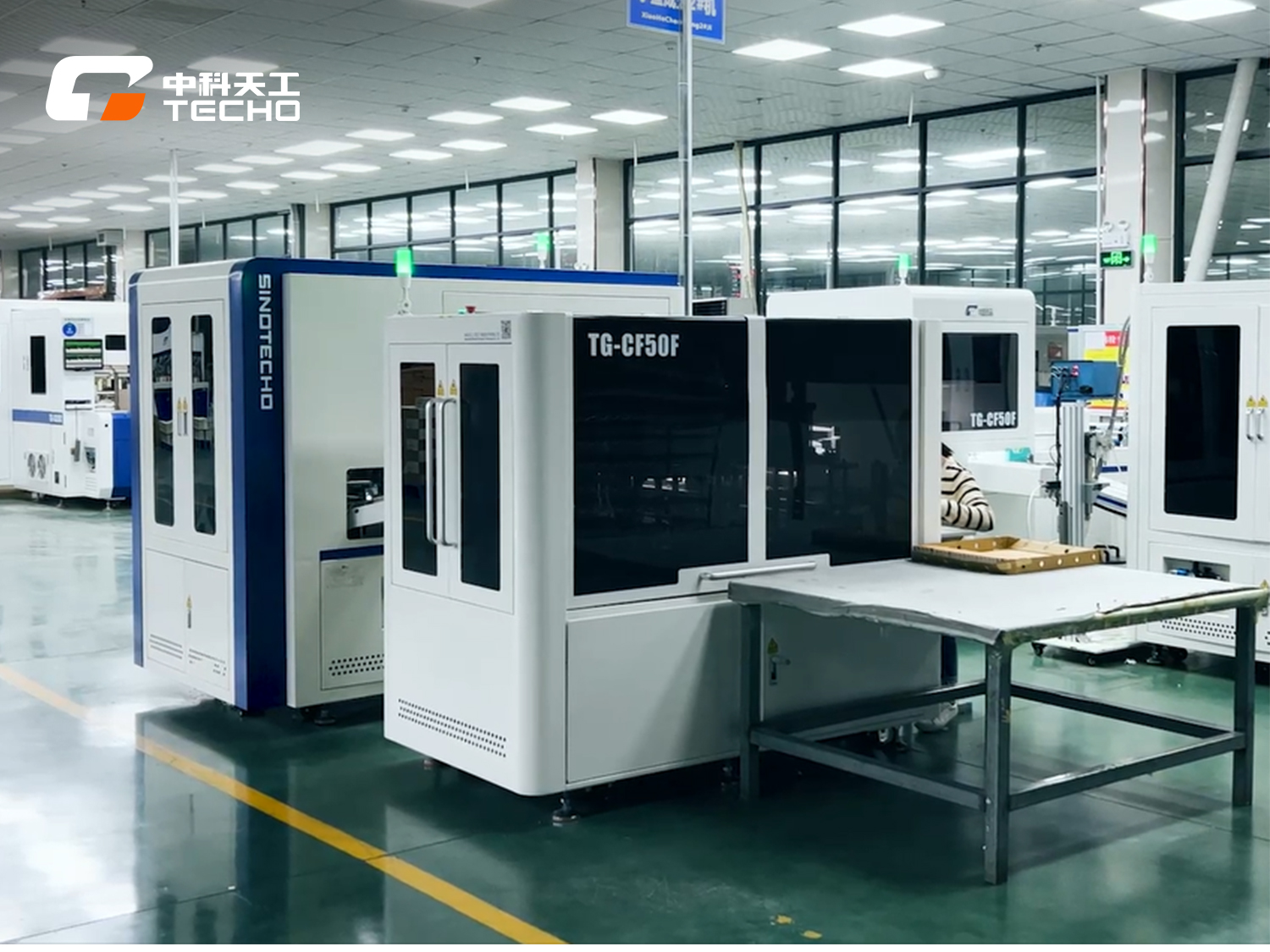

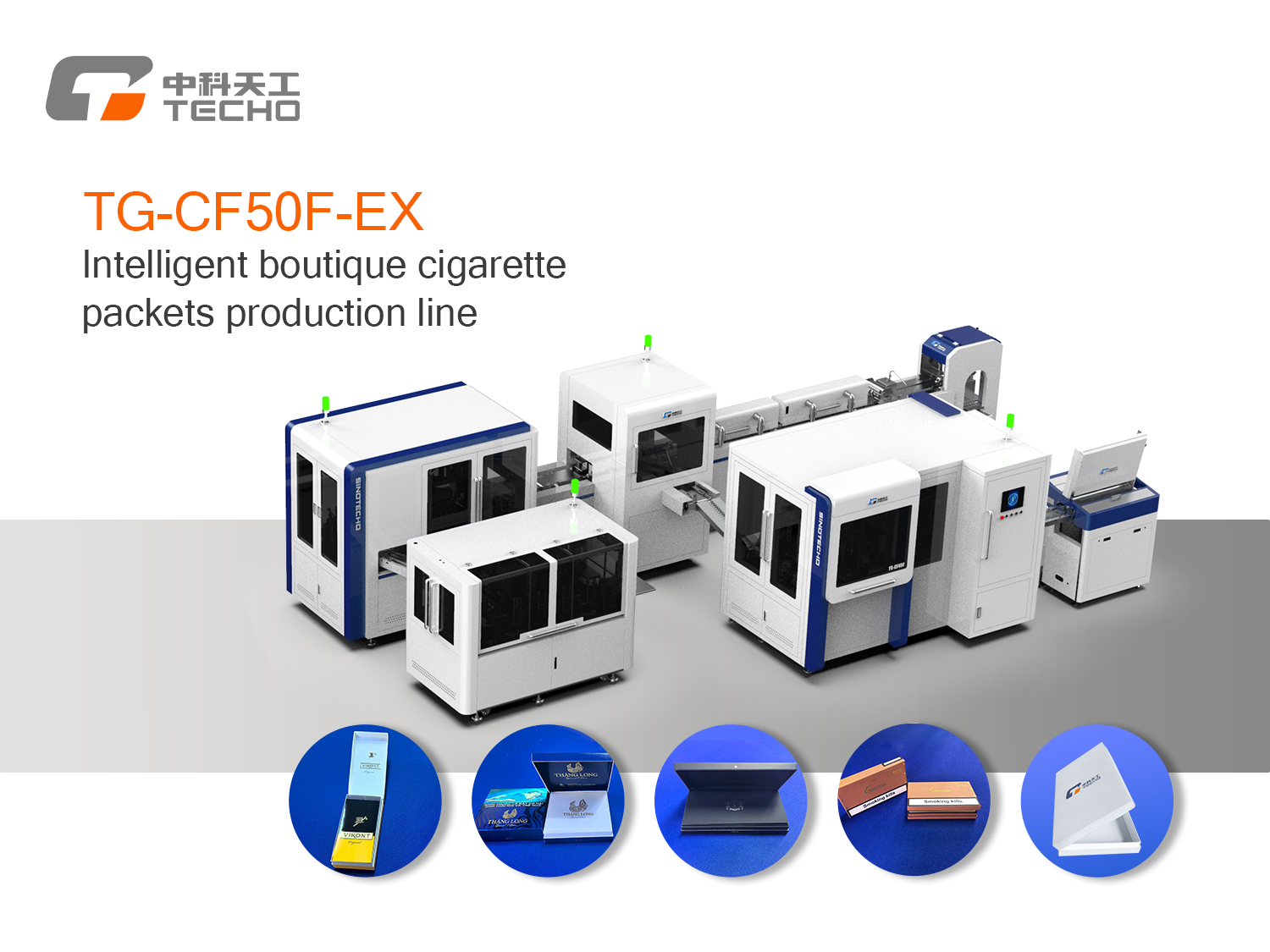

TG intelligent boutique premium rigid box production line is a fully automated flexible production line for high-end luxury carton and compact pod box manufacturing.

· All-in-One Automation Solution for Slim Pack Packaging

Fully automates mold loading, strip/box/paper feeding, sealing, gluing, forming, pressing, corner pasting, visual positioning, ring cutting and mold recycling.

· Modular Compact Design
Split-unit construction with small footprint, strong expandability, high efficiency and quick changeover flexibility.

Brand:

Sinotecho

Spu:

TG-CF50F

Introduction

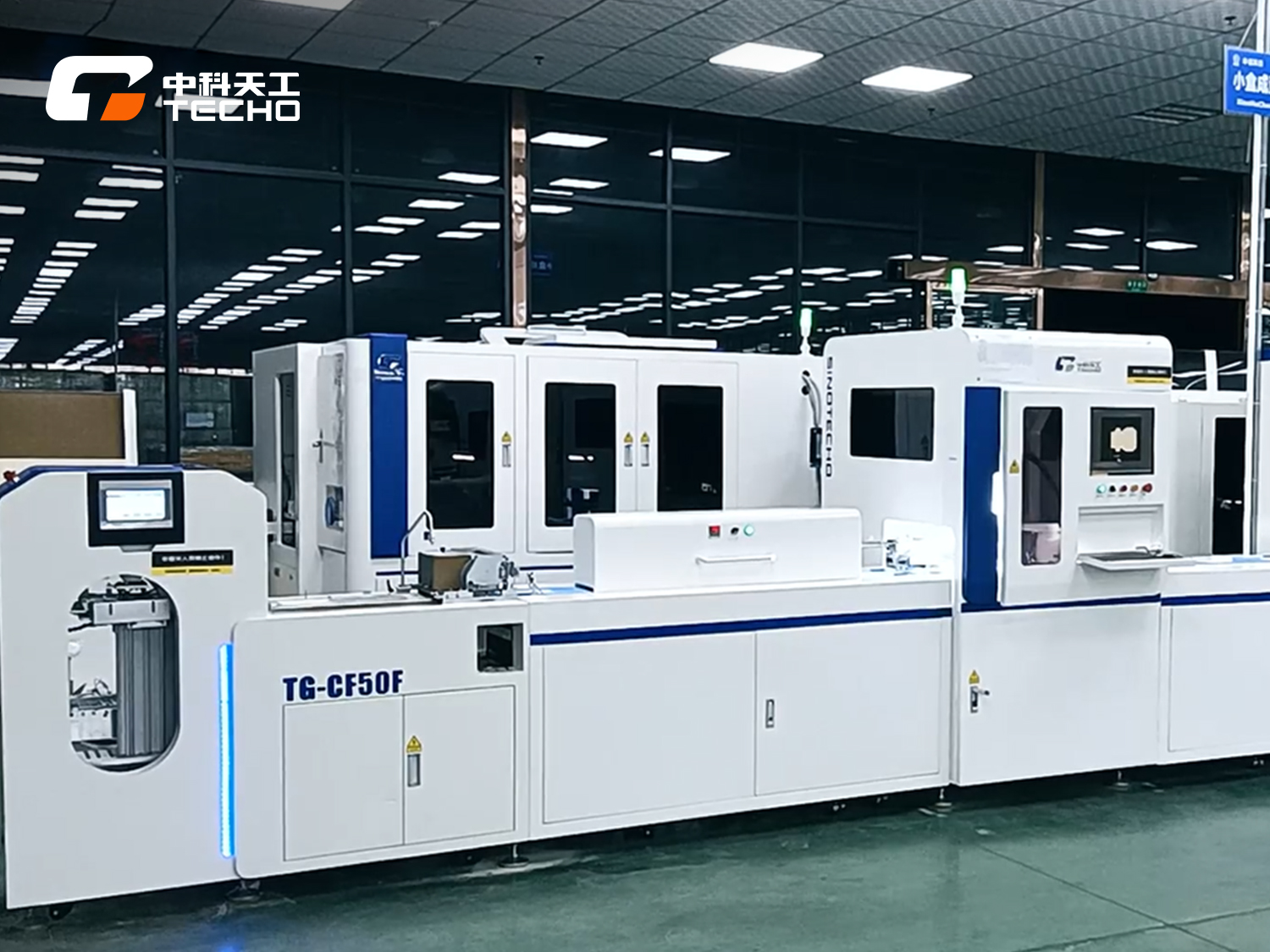

The intelligent boutique premium rigid box production line, completely self-developed by SINOTECHO, is a flexible line developed for box production of high-end premium rigid boxes and compact pod boxes.
All the production processes are fully automated such as the loading of internal mold, enclosing strip, up/bottom boxes and facial paper, the processing of surrounding, tape sealing, gluing, adjusting, preforming, pressure maintaining, corner pasting, screen gluing, visual positioning, forming, top & bottom faces pressing, packet pressing and flattening, packet exiting, ring cutting, cover opening and mold removing, mold recycling.
The line is composed by different functional split units and has the characteristics of small floor space, strong expandability, high efficiency, smooth operation, high positioning accuracy, wide adaptability and flexibility.

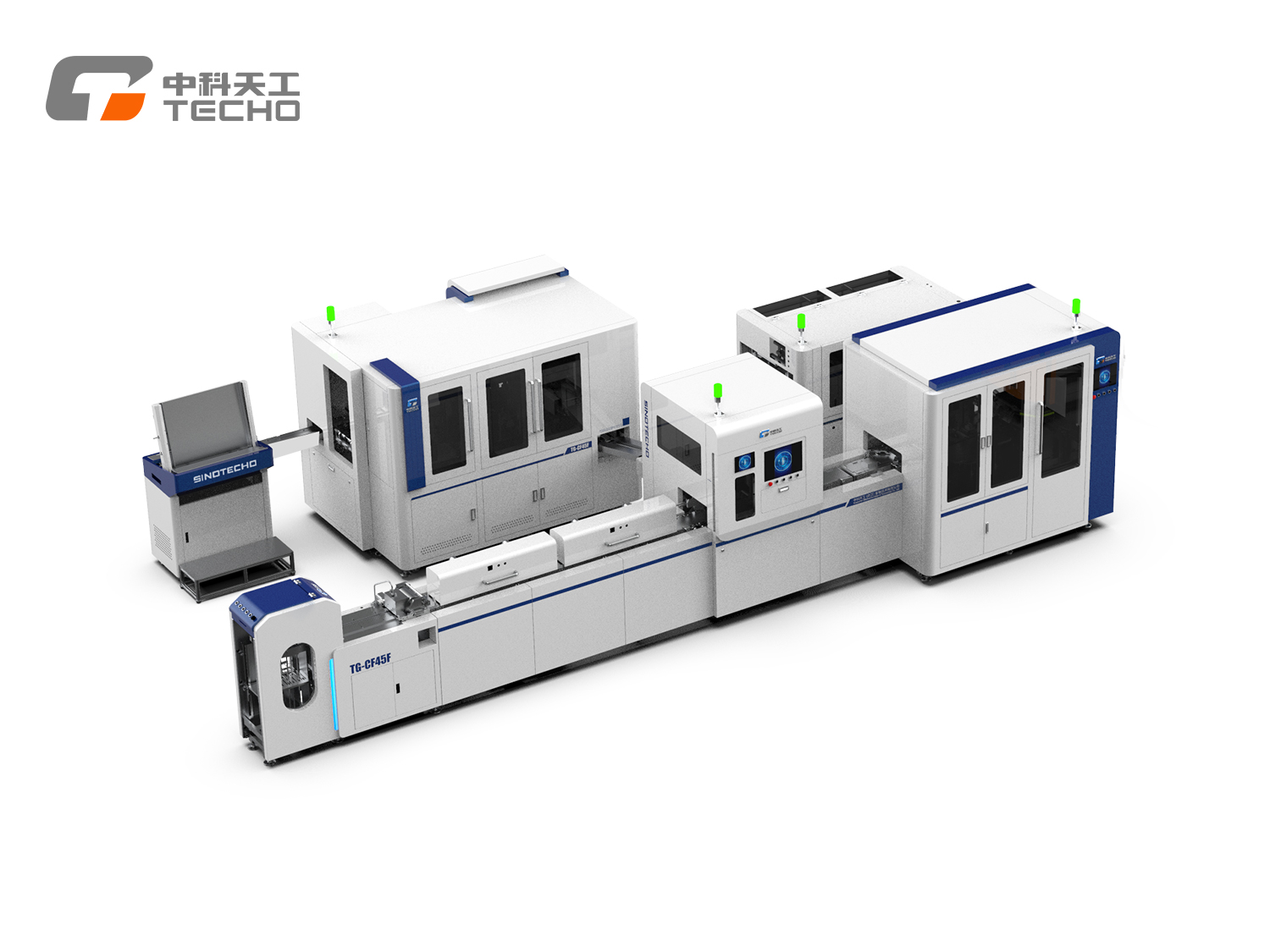

TG-CF50F

Process Flow

Equipment Details

Device Name	Equipment details included in the Device	Model	N0.	N0. of operators
Intelligent boutique premium rigid box production line TG-CF50F	Intelligent internal mold feeding machine	TG-CI60F	1	3
	Inner box forming machine	TG-CF50FI	1
	Intelligent visual positioning machine	TG-ZL50F	1
	Intelligent anilox roller gluing machine	TG-ZG50F	1
	Cover paper gluing & packet forming machine	TG-TP50PO	1
	Packet pressing and flattening machine	TG-PB60F	1
NOTES:It is recommended to have 2-3 quality inspectors and material receiving personnel in addition to direct operators of the equipment.

Technical Parameters

Item	Specification
Gram Weight of Face Paper	130–250 g/m²
Face Paper Size Range (mm)	Length: 155–300 mm Width: 85–165 mm
Finished Product Compatible Size (mm)	Length: 60–121.5 mm Width: 60–105 mm Height: 15–30 mm
Positioning Accuracy	±0.1 mm
Production Efficiency	≥2700 pcs/h
Yield	≥98%
Air Pressure Requirement	0.6–0.8 MPa
Power Supply	AC 380V ±10%
Ground Bearing Requirements	1000 kg
Temperature Requirements for Production Environment	22–26°C

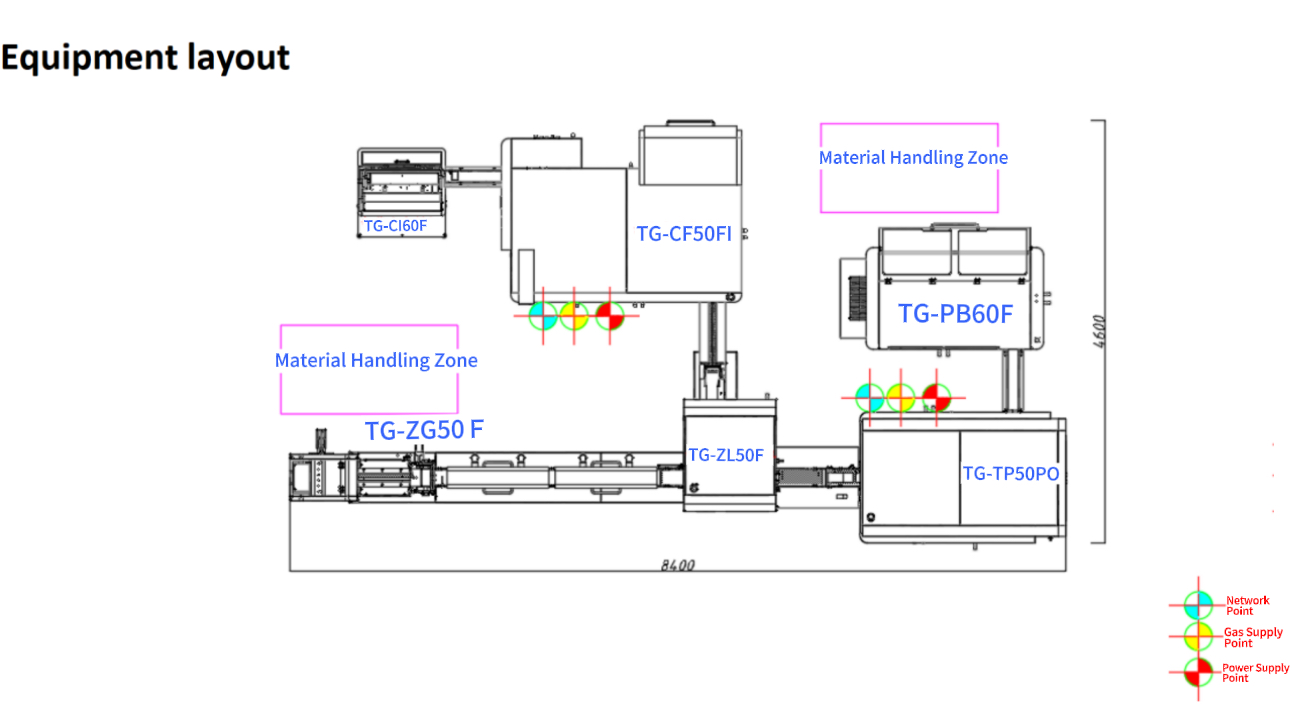

Equipment layout


8.4M*4.6M

Other delivery list

Serial Number	Item	Number	Notes
1	English Operation manual	1	Paper and electronic versions
2	Spare parts catalog	1	Paper and electronic versions
3	Daily Maintenance Manual	1	Paper and electronic versions
4	Instruction manual and electrical schematic diagram	1	Paper and electronic versions
5	PLC backup program	1	Provided in the form of a USB drive
6	Toolbox	1

Equipment characteristics

1.Orthographic layout and small floor space

2.High positioning accuracy, high definition vision, high precision robot

3.Multi-stations turntable, Yaskawa servo, high efficiency and stable operation

4.Wide adaptability range of sizes and types

5.High yield rate and good quality guarantee

After-sale services

1.We are competitive in our excellent after-sale services。

Before the equipment is shipped, we provide engineers with machine inspection and training services at our factory. We can receive three engineers for a period of three months of equipment training, so that they have the ability to operate and maintain the equipment independently. The training cost is free, and your company will bear the cost of local accommodation, catering, and other expenses for your engineers in China..

2.After the device arrives at its destination，We will arrange professional engineering to your company for equipment installation, and you needs to cooperate in providing qualified equipment installation sites, electricity, gas, production environment, etc

3.Provide a complete set of spare parts catalog, which can localize the processing of parts.

4.Provide English operation interface and manual for easy operation.

5.Quality Guarantee : 12 months quality warranty.Spare parts and vulnerable parts within the warranty period shall be borne by Zhongke Tiangong, except for those damaged by human factors

6.If an emergency malfunction occurs, our company will provide remote video processing during working hours

7.We will provide monthly operation/maintenance training through video remote means and record operation videos.
