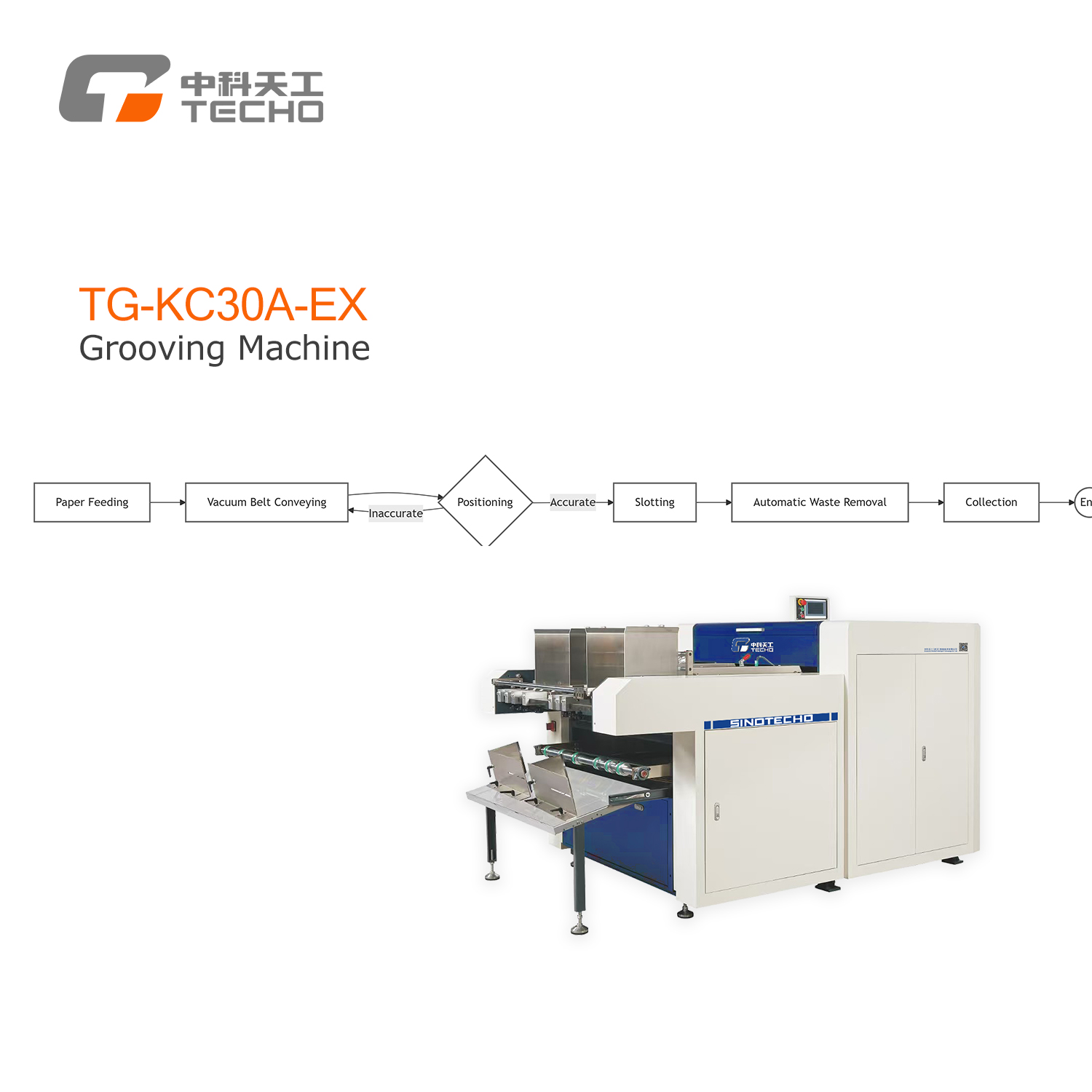

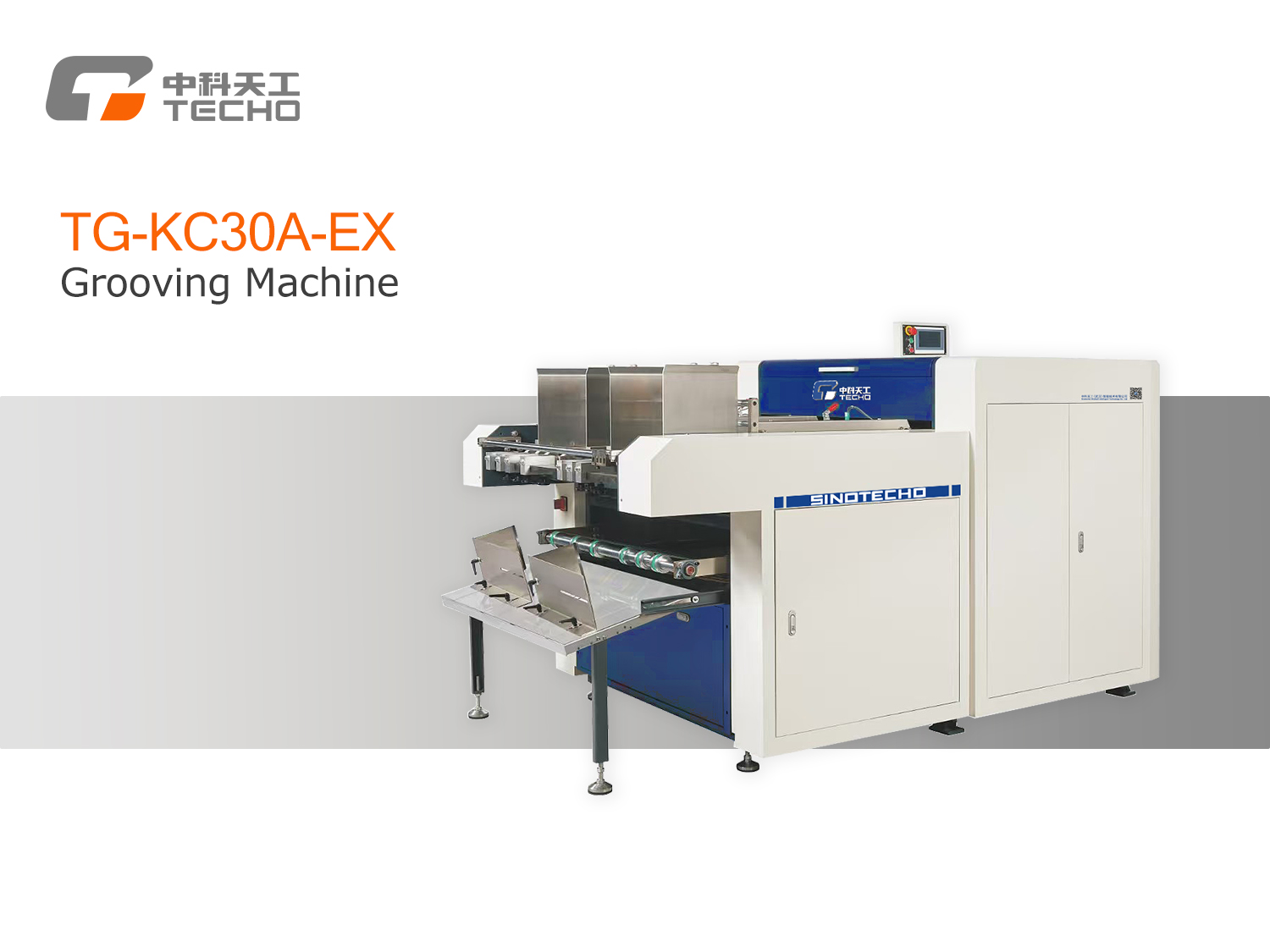

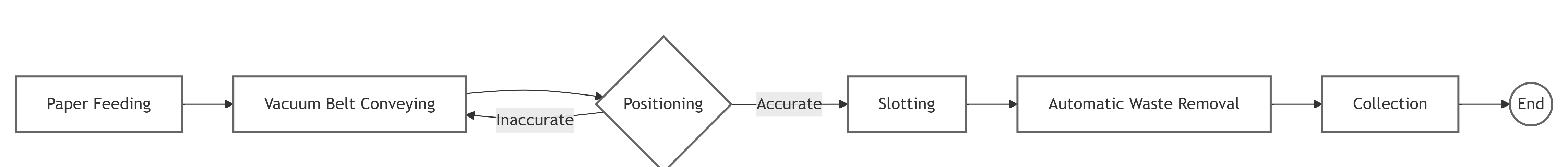

The TG-KC30A-EX Grooving Machine uses an air-suction belt feeding system and a front-and-rear combined knife design, ensuring stable paper feeding for irregularly shaped boxes. The belt securely transports the greyboard to the roller for precise grooving, offering both high speed and accuracy. It is ideal for grooving various irregularly shaped boxes.
| Item | Specification |
|---|---|
| Paperboard Range | Length: 100–560 mm Width: 100–370 mm Thickness: 0.5–3 mm |
| Positioning Accuracy | ±0.1 mm |
| Production Speed | 50 pcs/min |
| Voltage | 380V ±10% |
| Air Pressure | 0.6–0.8 MPa |
| Machine Weight | 1600 KG |
| Total Power | 2.5 kW |
| Overall Dimensions (L × W × H) | 2600 × 1950 × 1700 mm |
1.High Compatibility: Suitable for a wide range of face papers, including various wine boxes, cigarette packaging, and premium greyboard packaging.
2.Precise Adjustment: Equipped with a magnetic scale digital display for precise left-right adjustment, ensuring high accuracy and repeatability.
3.Grooving Accuracy: ±0.1mm; Can groove up to 12 lines.
4.Material Thickness: Works with board thickness from 200g to 2.0mm.
5.Applicable Materials: Greyboard, white cardboard, etc.
6.Paper Feeding Method: Belt friction feeding for reliable and efficient paper transfer.
7.Single/Double Channel: Dual-channel feeding system.
8.Main Roller Belt: Hand-wheel for quick lifting and moving of the belt.
9.Maximum Speed: 30–32m/min for 200×200mm boards, 120–150 pcs/min.
10.Automatic Waste Removal: Machine includes an automatic waste removal system on the side.
11.Adjustable Cutter Angle: Each cutting blade is independently adjustable.
12.Blade Grinder: Equipped with an automatic dual-blade grinder.
