Sinotecho Intelligent High-Speed Slim Pack Packaging Line

Sinotecho Intelligent High-Speed Slim Pack Packaging Line

Compact. Smart. Precise. 80 packs/min cigarette packaging line powered by advanced vision automation.

Brand:

Sinotecho

Spu:

TG-CA80P

Introduction

1. One-Stop Turnkey Packaging Line Solution
We provide complete turnkey project delivery services, covering the full process from production line planning and design → installation and commissioning → production startup and operation support.
2. Professional Engineering & Technical Team Support
Senior solution engineers deliver customized solutions. A dedicated on-site installation and commissioning expert team provides full-process support, along with a rapid response mechanism to ensure efficient project execution.
3. Operation Training & Workforce Support
We provide systematic equipment operation training and can offer operator support solutions based on customer requirements, ensuring a fast transition to stable and efficient production.
4. Full Lifecycle Service System
We support production line upgrading, capacity expansion, and retrofit projects, continuously optimizing equipment performance and efficiency while providing long-term, stable technical cooperation and service assurance.
5. Extensive Experience in Premium Client Services
We have served multiple high-end global tobacco brands and possess mature implementation experience in premium cigarette packaging production environments. Our project stability and delivery quality have been verified by the market.
6. Certification & Factory Capability Upgrade Support
We assist clients in obtaining certifications and qualifications related to advanced manufacturing capabilities, support factory automation and intelligent transformation, and help enhance overall manufacturing strength and industry-level ratings.

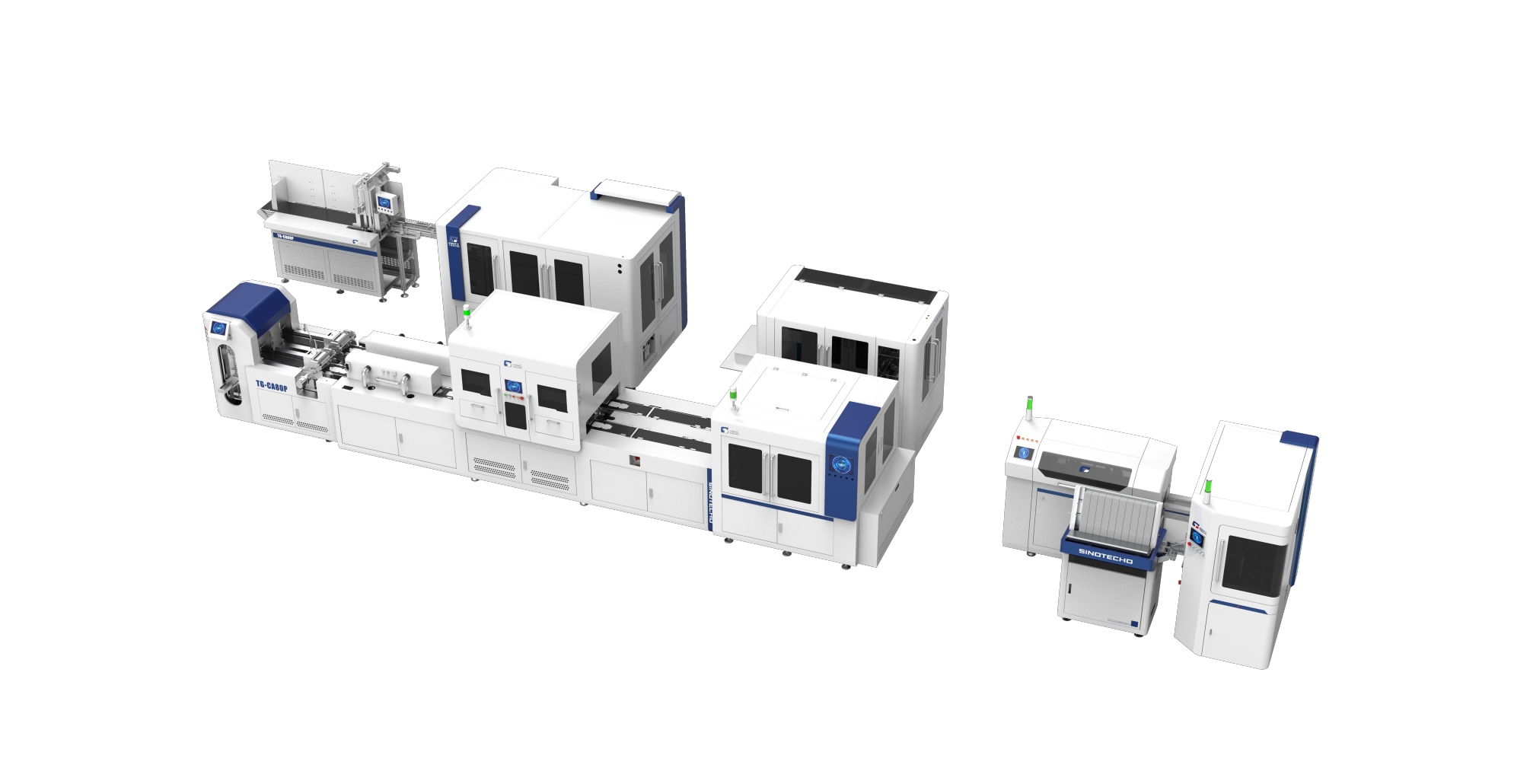

TG-CA80P

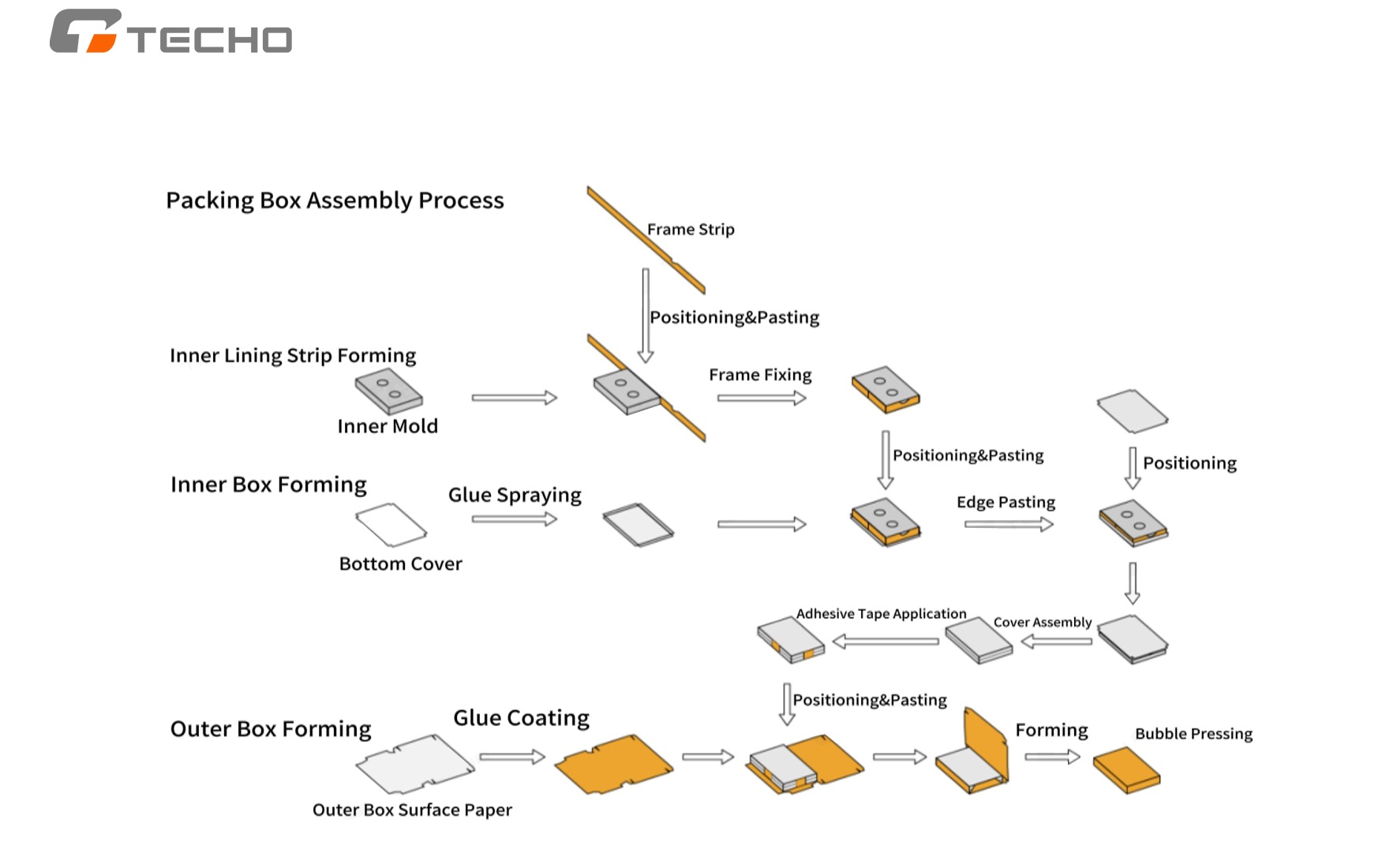

Process Flow

Equipment Details

Device Name	Equipment details included in the Device	Model	N0.	N0. of operators
Intelligent boutique premium rigid box production line TG-CA80P	Intelligent internal mold feeding machine	TG-CI80F	1	3
	Inner box forming machine	TG-CF80FI	1
	Intelligent visual positioning machine	TG-ZL80F	1
	Intelligent anilox roller gluing machine	TG-ZG80F	1
	Cover paper gluing & packet forming machine	TG-TP80PO	1
	Packet pressing and flattening machine	TG-PB80F	1
NOTES:It is recommended to have 2-3 quality inspectors and material receiving personnel in addition to direct operators of the equipment.

Technical Parameters

Item	Specification
Gram Weight of Face Paper	130–250 g/m²
Face Paper Size Range (mm)	Length: 155–300 mm Width: 85–165 mm
Finished Product Compatible Size (mm)	Length: 60–121.5 mm Width: 60–105 mm Height: 15–30 mm
Positioning Accuracy	±0.1 mm
Production Efficiency	≥4800 pcs/h
Yield	≥98%
Air Pressure Requirement	0.6–0.8 MPa
Power Supply	AC 380V ±10%
Ground Bearing Requirements	1000 kg
Temperature Requirements for Production Environment	22–26°C

Other delivery list

Serial Number	Item	Number	Notes
1	English Operation manual	1	Paper and electronic versions
2	Spare parts catalog	1	Paper and electronic versions
3	Daily Maintenance Manual	1	Paper and electronic versions
4	Instruction manual and electrical schematic diagram	1	Paper and electronic versions
5	PLC backup program	1	Provided in the form of a USB drive
6	Toolbox	1

Equipment characteristics

1. High-Speed & Stable Production Capability

2. Premium Cigarette Packs Packaging Line

3. Intelligent Vision & High-Precision Control System

4. Ultra-Efficient Space Layout (Floor-Space Optimized, Upper-Floor Installable)

5. Fast Changeover & Multi-Specification Capability

6. World-Class Core Components

7. Full Independent Intellectual Property & Patented Technology

After-sale services

1.We are competitive in our excellent after-sale services。

Before the equipment is shipped, we provide engineers with machine inspection and training services at our factory. We can receive three engineers for a period of three months of equipment training, so that they have the ability to operate and maintain the equipment independently. The training cost is free, and your company will bear the cost of local accommodation, catering, and other expenses for your engineers in China..

2.After the device arrives at its destination，We will arrange professional engineering to your company for equipment installation, and you needs to cooperate in providing qualified equipment installation sites, electricity, gas, production environment, etc

3.Provide a complete set of spare parts catalog, which can localize the processing of parts.

4.Provide English operation interface and manual for easy operation.

5.Quality Guarantee : 12 months quality warranty.Spare parts and vulnerable parts within the warranty period shall be borne by Zhongke Tiangong, except for those damaged by human factors

6.If an emergency malfunction occurs, our company will provide remote video processing during working hours

7.We will provide monthly operation/maintenance training through video remote means and record operation videos.

Service Advantages

1. One-stop Full Packaging Line Solution

We provide full-process turnkey project services covering preliminary production line planning, process simulation, equipment selection, line integration, installation and commissioning, and official production launch. Customized line layout and process solutions are delivered according to different product specifications, capacity targets and site conditions to achieve seamless equipment connection and coordinated production rhythm. This enables customers to build efficient and stable automated packaging lines and greatly shorten the production launch cycle.

2. Professional Engineering and Technical Team Support

A dedicated project team composed of senior solution engineers, process experts and on-site service personnel provides full-cycle technical support. In the early stage, we offer process optimization and line planning consultation. During project implementation, we provide on-site installation guidance, equipment commissioning and joint debugging tests. After production launch, a 7×24-hour rapid response mechanism ensures timely resolution of equipment and process issues, guaranteeing efficient project progress and stable operation.

3. Systematic Operation Training and Personnel Support

We deliver a complete training system including equipment operation, daily maintenance and basic troubleshooting, covering theoretical courses, on-site practical training and assessment certification. According to customer requirements, we also provide on-site technical staffing solutions to help customers cultivate professional operation teams quickly, realizing stable production startup and reducing operational difficulty and initial equipment failure rates.

4. Full Lifecycle Service System

We establish a full-lifecycle service system covering equipment installation, commissioning, regular maintenance, spare parts supply, line upgrading, process optimization and performance iteration. In response to customers’ capacity expansion and process upgrading plans, we provide equipment renovation, line expansion and performance optimization solutions to continuously improve operational efficiency and stability, extend equipment service life, and deliver long-term reliable technical cooperation and service guarantees.

5. Rich Experience in Serving High-end Clients

We have provided packaging line solutions for many globally renowned tobacco brands, premium liquor enterprises and top 3C brands. We possess mature project implementation experience in high-standard production scenarios including tobacco packaging, luxury liquor packaging and 3C electronic packaging. Our proven operational stability, strict quality control and reliable delivery fully meet high-end customers’ stringent requirements for precision, efficiency, consistency and full traceability.

6. Certification and Factory Qualification Upgrade Support

Targeting the high-standard requirements of premium customers for production qualification, management systems and automation capability, we provide professional customized support. We assist customers in conforming to industry standards and certification systems, optimizing production workflows, data management and quality control systems. We help factories complete automated and intelligent upgrading, improve overall manufacturing capability and industry qualification level, and meet high-end customer access standards and long-term cooperation requirements.

7. Sinotecho AI Cloud Intelligent Platform Empowerment

Based on the architecture of “one technical base + three core engines”, we build a full-link digital support system. The Sinotecho AI Cloud platform realizes full integration of business modules, standardized interface collaboration and cloud-based accumulation of industry experience. The Smart Factory Engine supports lean production management, the Smart Park Engine ensures safe and green operation, and the Commercial Product Engine enables agile project delivery. It drives full-scene intelligent upgrading of factories, industrial parks and business operations through data intelligence.
