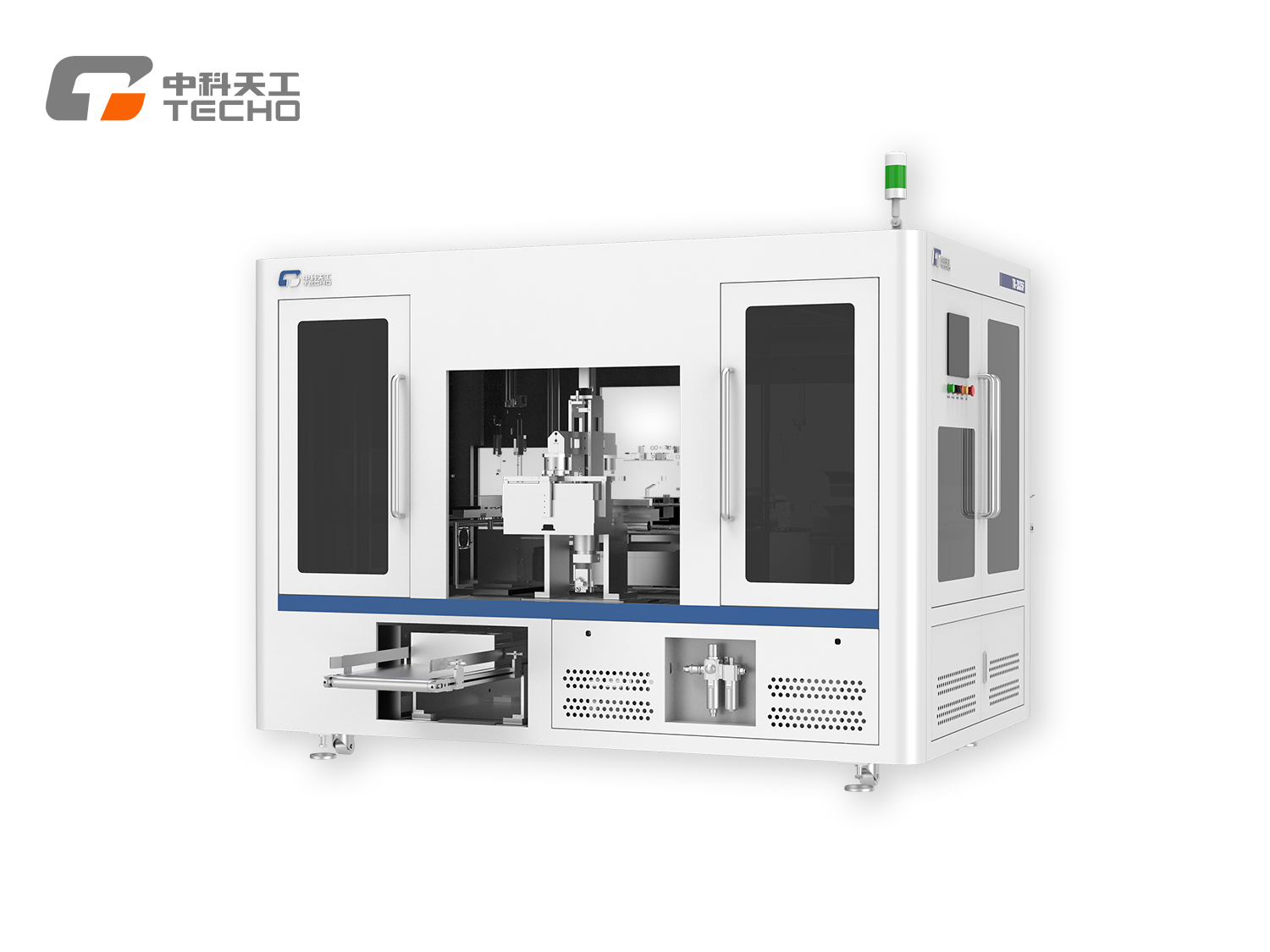

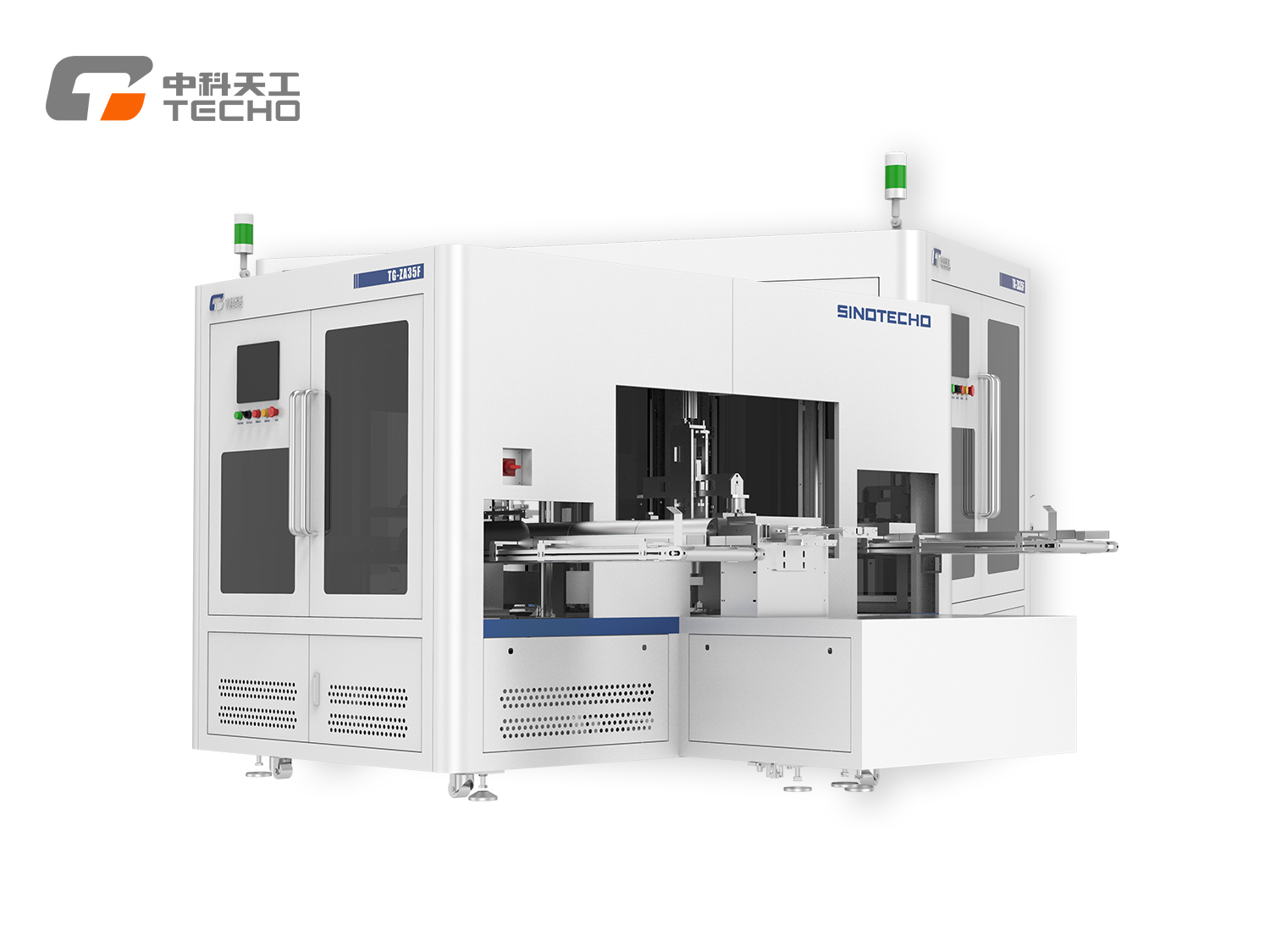

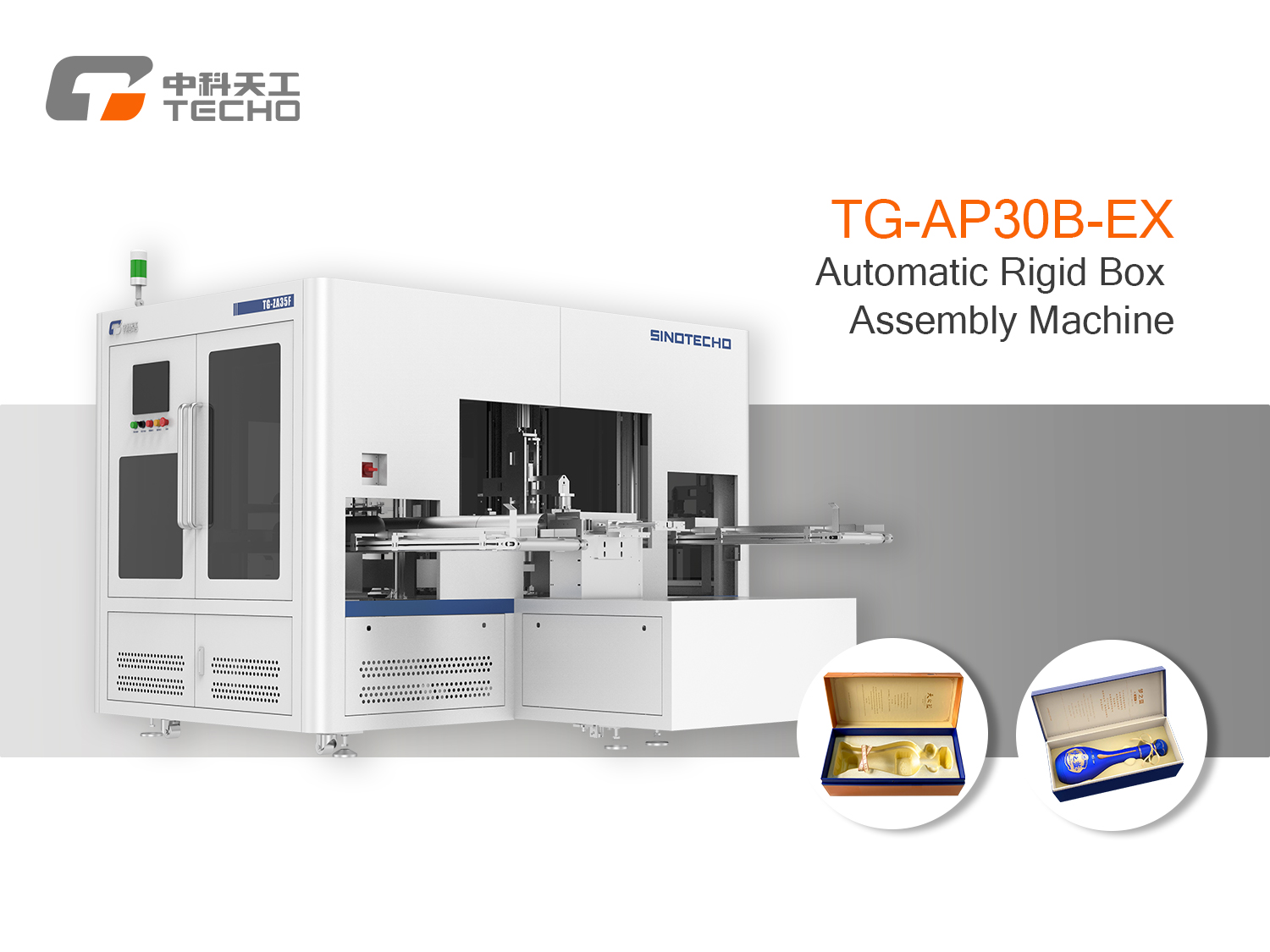

TG-AP30B-EX is an automated machine specially developed for assembling lid and base of rigid (two-piece) boxes. The machine primarily assembles the boxes using a frame folding and locking method, with lid inversion and surface paper lamination with pressing, replacing manual operations, reducing labor intensity, saving manpower, and enhancing the automation level of the entire production line.
| Item | Specification |
|---|---|
| Applicable Box Size | Minimum: 65 × 65 × 12 mm Maximum: 400 × 450 × 120 mm |
| Positioning Accuracy | ±0.2 mm |
| Production Efficiency | 1,200–1,500 pcs/h |
| Yield Rate | ≥98% |
| Air Supply Requirement | 0.6–0.8 MPa, 1.2 m³/min |
| Power Supply | AC 380V ±10% |
| Power Consumption | 6 kW |
| Machine Weight | 800 kg |
| Machine Dimensions (L × W × H) | 1.8 × 1.7 × 1.8 m |
